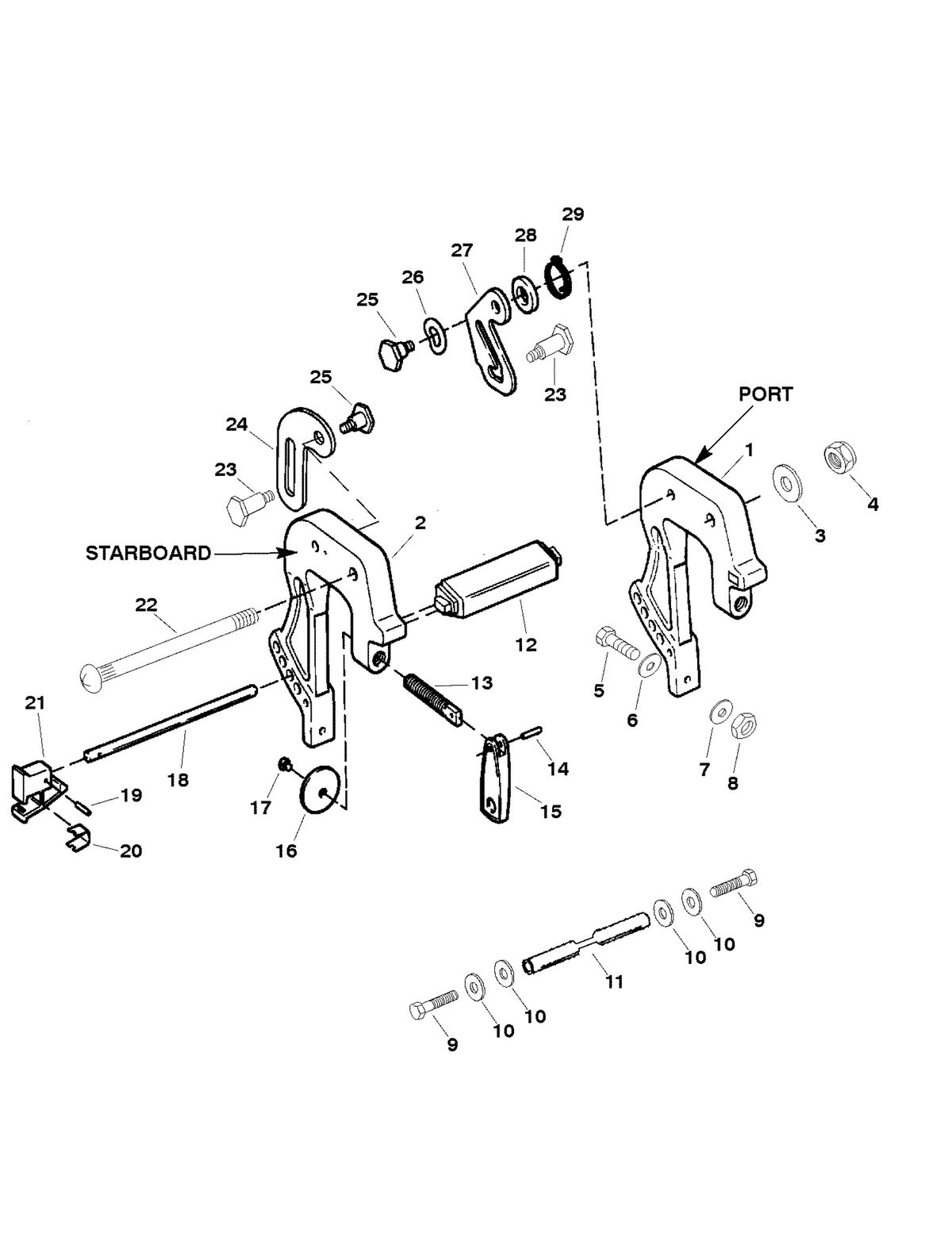

FORCE - 25 H.P. (1998) - CLAMP BRACKETS

Ref ID	Description	Price
1	BRACKET-STERN (PAINTED) (PORT) (#1400-850073T6) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	BRACKET-STERN (PAINTED) (STARBOARD) (#1400-850073T7) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	WASHER (#12-20553) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.12 ~~$1.40~~
4	NUT (.375-16) (#11-F7026) Comment: TORQUE 125 LB. IN. 14 N-M Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F7005 TORQUE 125 LB. IN. 14 N-M Supersedes: F7005	NLA
5	SCREW (.250-20 X 3.00)-MOUNTING (#10-832820) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	WASHER (THIN)-MOUNTING (#12-8M0204649) Qty Required For Repair: 2 Qty Required For Repair: 2	$0.96 ~~$1.20~~
7	WASHER-MOUNTING (#12-67983) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.40 ~~$3.00~~
8	NUT (.250-20)-MOUNTING (#11-8267118) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.28 ~~$3.39~~
9	SCREW (M6 X 35) (#10-4000332) Comment: TORQUE 40 LB. IN. 4.5 N-M Qty Required For Repair: 2 Minimum Order Qty: 1 TORQUE 40 LB. IN. 4.5 N-M Qty Required For Repair: 2	$2.10 ~~$2.16~~
10	WASHER (#12-8M0204649) Qty Required For Repair: 4 Qty Required For Repair: 4	$0.96 ~~$1.20~~
11	SPACER (#23-852963) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	HANDLE-CARRYING (#830564) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	SCREW-STERN BRACKET (#10-826248) Comment: TORQUE 17 LB. FT. 23 N-M Qty Required For Repair: 2 Minimum Order Qty: 1 TORQUE 17 LB. FT. 23 N-M Qty Required For Repair: 2	NLA
14	PIN-ROLL (#17-24198) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
15	HANDLE-CLAMP SCREW (PAINTED) (#F424075T3) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F424075T, F424075, F298075, F425075 Qty Required For Repair: 2 Supersedes: F424075T, F424075, F298075, F425075	NLA
16	FOOT-STERN BRACKET SCREW (#F24074) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F9074-2 Qty Required For Repair: 2 Supersedes: F9074-2	NLA
17	SCREW (#10-32 X .500) (#10-69022) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.88 ~~$1.10~~
18	TILT PIN ASSEMBLY-STERN BRACKET (#851924A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	PIN-ROLL (#17-38489) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.00 ~~$5.00~~
20	SPRING-LOCK BAR HANDLE (#24-F286461) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	HANDLE-LOCK BAR (#851929) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	BOLT-PIVOT-STERN BRACKET (.375-16 X 7.375) (#850185) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	PIN-TILT LOCK (.250-20) (#17-819707) Comment: TORQUE 40 LB. IN. 4.5 N-M Qty Required For Repair: 2 Minimum Order Qty: 1 TORQUE 40 LB. IN. 4.5 N-M Qty Required For Repair: 2	NLA
24	LEVER-TILT LOCK (#826251) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	PIVOT-TILT LOCK (.312-18) (#10-F286422 1) Comment: TORQUE 40 LB. IN. 4.5 N-M Qty Required For Repair: 2 TORQUE 40 LB. IN. 4.5 N-M Qty Required For Repair: 2	NLA
26	WASHER-WAVE (#13-69150) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.96 ~~$3.70~~
27	LOCK-TILT (#F429541) Qty Required For Repair: 1 Minimum Order Qty: 1	$55.92 ~~$58.25~~
28	SPACER-TILT LOCK (#23-819226) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286451 Supersedes: F286451	NLA
29	SPRING-TILT LOCK (#24-F286544 1) Qty Required For Repair: 1	NLA

This assembly is found in these models:

FORCE > 25 H.P. (1998)
