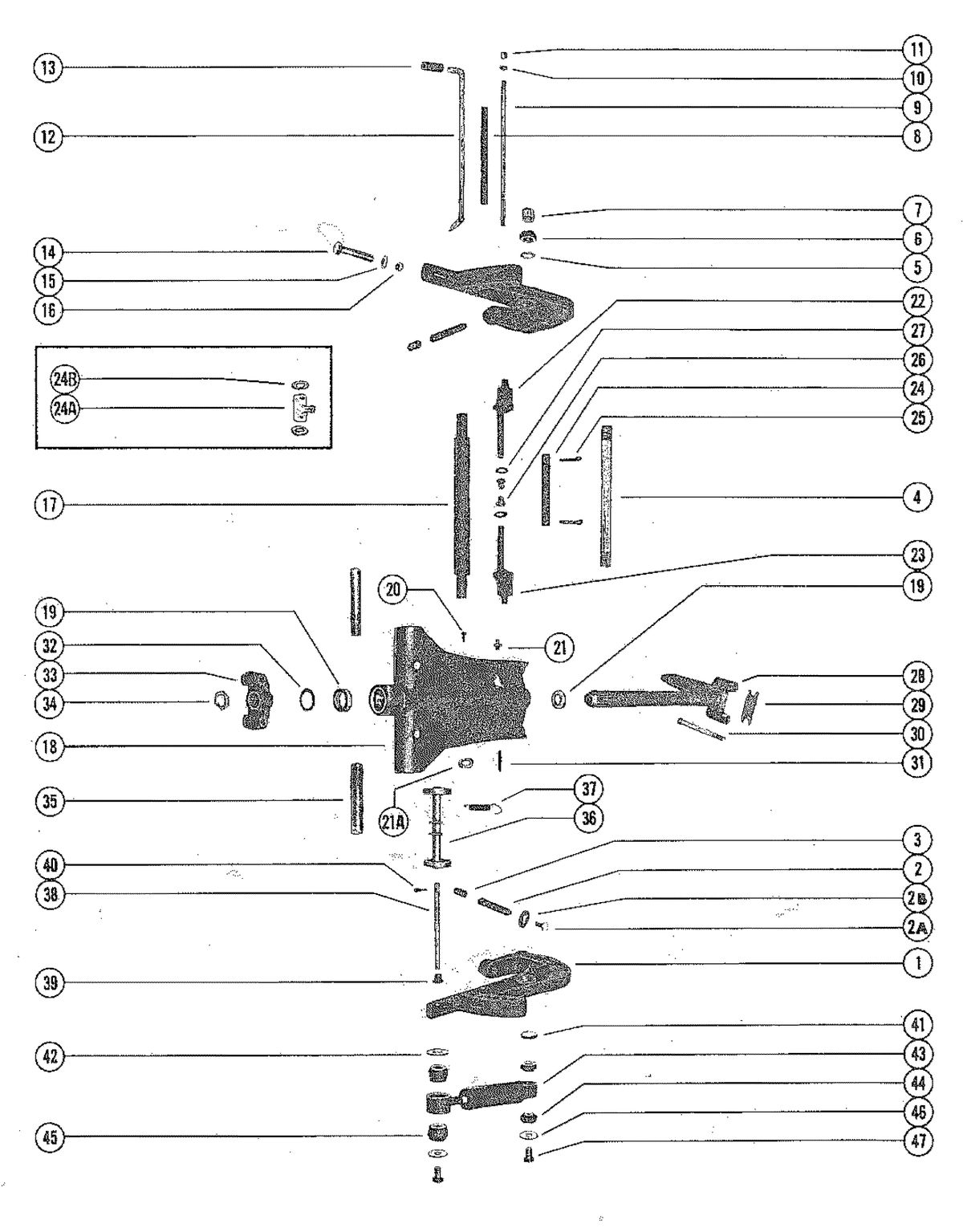

MERCURY - 70 (3 CYL.) - CLAMP AND SWIVEL BRACKET ASSEMBLY
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
WASHER ATTACHED WITH A RETAINING RING
Qty Required For Repair: 2 |
NLA
|
||
| 2 |
WASHER ATTACHED WITH A RETAINING RING
Qty Required For Repair: 2 |
NLA
|
||
| 3 |
WASHER ATTACHED WITH A RETAINING RING
Qty Required For Repair: 2 |
NLA
|
||
| 1 |
WASHER ATTACHED WITH A SCREW
Qty Required For Repair: 2 |
NLA
|
||
| 2 |
WASHER ATTACHED WITH A SCREW
Qty Required For Repair: 2 |
NLA
|
||
| 2A |
WASHER TO THUMB SCREW -WASHER ATTACHED WITH A SCREW
Qty Required For Repair: 2 Minimum Order Qty: 2 |
NLA
|
||
| 2B |
THUMB SCREW -WASHER ATTACHED WITH A SCREW
Qty Required For Repair: 2 Minimum Order Qty: 2 |
NLA
|
||
| 3 |
THUMB SCREW -WASHER ATTACHED WITH A SCREW
Qty Required For Repair: 2 |
NLA
|
||
| 4 |
Supersedes: 8M0035074, 883067, 30664 2, 74528
|
$26.29
|
|
|
| 5 |
Qty Required For Repair: 2
|
NLA
|
||
| 6 |
Qty Required For Repair: 2
Minimum Order Qty: 5 Supersedes: 11-30499 |
$3.84
|
|
|
| 7 |
Qty Required For Repair: 2
|
NLA
|
||
| 8 |
|
NLA
|
||
| 9 |
|
NLA
|
||
| 10 |
Qty Required For Repair: 2
|
$1.36
|
|
|
| 11 |
Qty Required For Repair: 2
Minimum Order Qty: 5 |
$2.80
|
|
|
| 12 |
Supersedes: 17-49930A 1
|
$51.12
|
|
|
| 13 |
|
NLA
|
||
| 14 |
Qty Required For Repair: 2
Minimum Order Qty: 2 |
NLA
|
||
| 15 |
Qty Required For Repair: 2
|
NLA
|
||
| 14 |
CLAMP BRACKET TO BOAT TRANSOM (3")-OLD STYLE CLAMP BRACKET
Qty Required For Repair: 2 Minimum Order Qty: 2 |
$5.36
|
|
|
| 14 |
CLAMP BRACKET TO BOAT TRANSOME (5")-NEW STYLE CLAMP BRCKET
Qty Required For Repair: 2 |
$8.72
|
|
|
| 15 |
CLAMP BRACKET BOLT-NEW STYLE CLAMP BRACKET
Qty Required For Repair: 2 |
NLA
|
||
| 15 |
Qty Required For Repair: 2
Minimum Order Qty: 5 |
NLA
|
||
| 16 |
Qty Required For Repair: 4
Minimum Order Qty: 5 |
$5.20
|
|
|
| 17 |
|
NLA
|
||
| 18 |
(SHORT SHAFT)
|
NLA
|
||
| 18 |
(LONG SHAFT)
|
NLA
|
||
| 19 |
Qty Required For Repair: 3
|
$12.00
|
|
|
| 20 |
UNITED STATES 5285533 AND BELOW AUSTRALIA 8059594 AND BELOW BELGIUM 9225255 AND BELOW CANADA 7129887 AND BELOW
|
NLA
|
||
| 21 |
Qty Required For Repair: 3
|
$3.68
|
|
|
| 21A |
UNITED STATES 5285534 AND UP AUSTRALIA 8059595 AND UP BELGIUM 9225256 AND UP CANADA 7129888 AND UP
Qty Required For Repair: 2 |
NLA
|
||
| 22 |
|
NLA
|
||
| 23 |
|
NLA
|
||
| 24 |
UNITED STATES 5285533 AND BELOW AUSTRALIA 8059594 AND BELOW BELGIUM 9225255 AND BELOW CANADA 7129887 AND BELOW
|
NLA
|
||
| 24A |
UNITED STATES 5285534 AND UP AUSTRALIA 8059595 AND UP BELGIUM 9225256 AND UP CANADA 7129888 AND UP
|
NLA
|
||
| 24B |
UNITED STATES 5285534 AND UP AUSTRALIA 8059595 AND UP BELGIUM 9225256 AND UP CANADA 7129888 AND UP
Qty Required For Repair: 2 Minimum Order Qty: 2 |
NLA
|
||
| 25 |
Qty Required For Repair: 2
Minimum Order Qty: 2 |
$2.32
|
|
|
| 26 |
UNITED STATES 5285533 AND BELOW AUSTRALIA 8059594 AND BELOW BELGIUM 9225255 AND BELOW CANADA 7129887 AND BELOW
Qty Required For Repair: 2 |
NLA
|
||
| 27 |
UNITED STATES 5285533 AND BELOW AUSTRALIA 8059594 AND BELOW BELGIUM 9225255 AND BELOW CANADA 7129887 AND BELOW
Qty Required For Repair: 2 Minimum Order Qty: 5 |
$2.96
|
|
|
| 28 |
(SHORT SHAFT) YOKE IS ATTACHED WITH A NUT
|
NLA
|
||
| 28 |
(LONG SHAFT) YOKE IS ATTACHED WITH A NUT
|
NLA
|
||
| 28 |
(SHORT SHAFT) YOKE IS ATTACHED WITH A RETAINING RING
|
NLA
|
||
| 28 |
(LONG SHAFT) YOKE IS ATTACHED WITH A RETAINING RING
|
NLA
|
||
| 29 |
|
NLA
|
||
| 30 |
Qty Required For Repair: 2
|
$34.48
|
|
|
| 31 |
Minimum Order Qty: 5
|
NLA
|
||
| 32 |
|
NLA
|
||
| 32 |
Qty Required For Repair: AR
|
NLA
|
||
| 33 |
YOKE IS ATTACHED WITH A NUT
|
NLA
|
||
| 34 |
YOKE IS ATTACHED WITH A NUT
|
NLA
|
||
| 33 |
YOKE IS ATTACHES WITH A RETAINING RING
|
NLA
|
||
| 34 |
YOKE IS ATTACHES WITH A RETAINING RING
|
$2.96
|
|
|
| 35 |
Qty Required For Repair: 2
|
NLA
|
||
| 36 |
|
NLA
|
||
| 37 |
REVERSE LOCK TENSION
|
NLA
|
||
| 38 |
|
NLA
|
||
| 39 |
Qty Required For Repair: 2
|
NLA
|
||
| 40 |
Minimum Order Qty: 2
|
$2.70
|
|
|
| 41 |
UPPER SHOCK BUSHING TO CLAMP BRACKET
Qty Required For Repair: 2 |
NLA
|
||
| 42 |
Qty Required For Repair: 2
|
$2.08
|
|
|
| 43 |
Qty Required For Repair: 2
|
NLA
|
||
| 44 |
Qty Required For Repair: 4
|
NLA
|
||
| 45 |
Qty Required For Repair: 4
|
NLA
|
||
| 46 |
UPPER AND LOWER BUSHING RETAINER (OUTER)
Qty Required For Repair: 4 Minimum Order Qty: 5 |
NLA
|
||
| 47 |
UPPER AND LOWER SHOCK MOUNTING PIN ( 3/4")
Qty Required For Repair: 4 |
NLA
|
