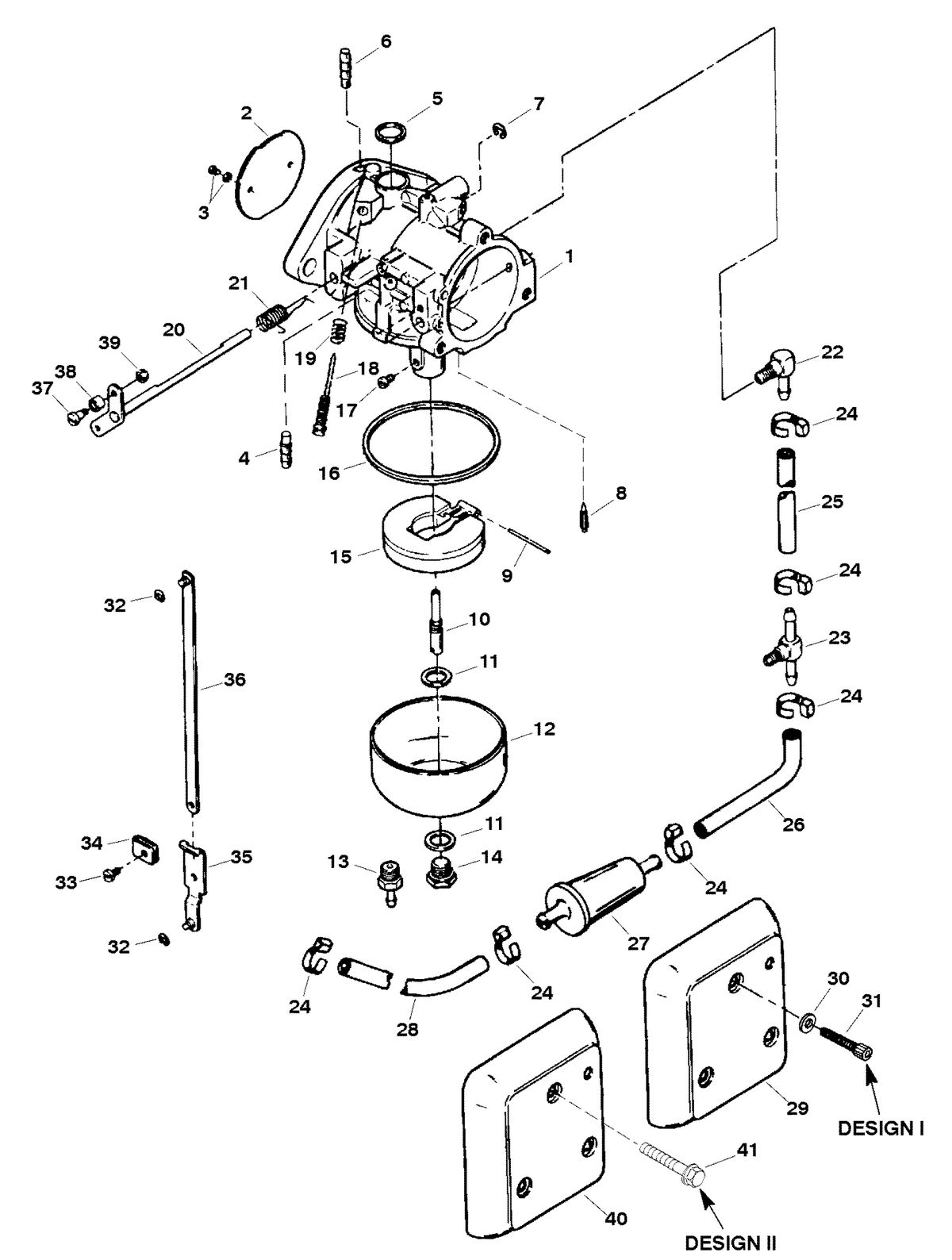

FORCE - 120 H.P. (1999) - CARBURETOR
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
(TOP)
Supersedes: 1300-854451 |
NLA
|
||
| 1 |
(BOTTOM)
Supersedes: 1300-854452 |
NLA
|
||
| 2 |
|
NLA
|
||
| 3 |
Qty Required For Repair: 2
Supersedes: 854208, 10-F10328, FO8942, FO15912, FO8992, 10-FO10280, FO10230 |
$2.80
|
|
|
| 4 |
(TOP CARB)
|
NLA
|
||
| 5 |
Supersedes: FO106128
|
$2.96
|
|
|
| 6 |
(BOTTOM CARB)
|
NLA
|
||
| 7 |
Supersedes: F10131
|
NLA
|
||
| 8 |
(NOTE: DO NOT REMOVE INLET SEAT)
Supersedes: FK10264, F10264, FK10309, FO18017 |
$13.99
|
|
|
| 9 |
|
$4.32
|
|
|
| 10 |
|
$25.68
|
|
|
| 11 |
Qty Required For Repair: 2
Minimum Order Qty: 5 |
$3.04
|
|
|
| 12 |
|
$12.32
|
|
|
| 13 |
(TOP CARB)
|
$42.80
|
|
|
| 14 |
(BOTTOM CARB)
|
$7.52
|
|
|
| 15 |
Supersedes: 83363M, FO13554, F10346, FO31554
|
$34.72
|
|
|
| 16 |
Minimum Order Qty: 5
Supersedes: F10138, FO13551 |
$3.28
|
|
|
| 17 |
(.088) (0 - 1500 FEET)
Supersedes: FE16271 |
$13.60
|
|
|
| 17 |
(.086) (1500 - 3000 FEET)
Qty Required For Repair: OPT Supersedes: F13949 |
$13.60
|
|
|
| 17 |
(.084) (3000 - 4500 FEET)
Qty Required For Repair: OPT |
$3.12
|
|
|
| 17 |
(.082) (4500 - 6000 FEET)
Qty Required For Repair: OPT |
$3.12
|
|
|
| 17 |
(.080) (6000 - 10000 FEET)
Qty Required For Repair: OPT Minimum Order Qty: 2 |
$12.32
|
|
|
| 18 |
|
$18.24
|
|
|
| 19 |
Minimum Order Qty: 3
|
$3.12
|
|
|
| 20 |
|
NLA
|
||
| 21 |
|
$12.72
|
|
|
| 22 |
(TOP CARB)
|
NLA
|
||
| 23 |
(BOTTOM CARB)
|
NLA
|
||
| 24 |
Qty Required For Repair: 6
Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 |
$0.48
|
|
|
| 25 |
(CUT 7.500 INCHES)
Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
$42.99
|
|
|
| 26 |
(CUT 21.00 INCHES)
Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
$42.99
|
|
|
| 27 |
Minimum Order Qty: 3
Supersedes: 35-816296Q, 35-816296, 35-16494 |
$5.99
|
|
|
| 28 |
(CUT 6.00 INCHES)
Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
$42.99
|
|
|
| 29 |
(DESIGN I) (.530 HOLES FOR SOCKET HEAD SCREWS)
Qty Required For Repair: 2 |
NLA
|
||
| 30 |
(DESIGN I)
Qty Required For Repair: 6 |
$0.96
|
|
|
| 31 |
(DESIGN I)
Qty Required For Repair: 6 Supersedes: 10-819034, F1034, F2100 |
$4.48
|
|
|
| 32 |
Qty Required For Repair: 2
|
NLA
|
||
| 33 |
Supersedes: F1074
|
$0.88
|
|
|
| 34 |
|
$2.32
|
|
|
| 35 |
|
NLA
|
||
| 36 |
|
NLA
|
||
| 37 |
Supersedes: F333316
|
NLA
|
||
| 38 |
Supersedes: F92759
|
NLA
|
||
| 39 |
Minimum Order Qty: 5
|
$1.76
|
|
|
| 40 |
(DESIGN II) (.590 HOLES FOR WASHER AND SOCKET HEAD SCREWS OR HEX WASHERHEAD SCREWS)
Qty Required For Repair: 2 Supersedes: F511708-3, F511708, F511708-1, F511708-2 |
$66.64
|
|
|
| 41 |
(DESIGN II)
Qty Required For Repair: 6 Minimum Order Qty: 5 |
$2.96
|
|
|
| - |
Supersedes: F10023, FK10287, FGS1TC
|
$8.56
|
|
|
| - |
|
$85.50
|
|
