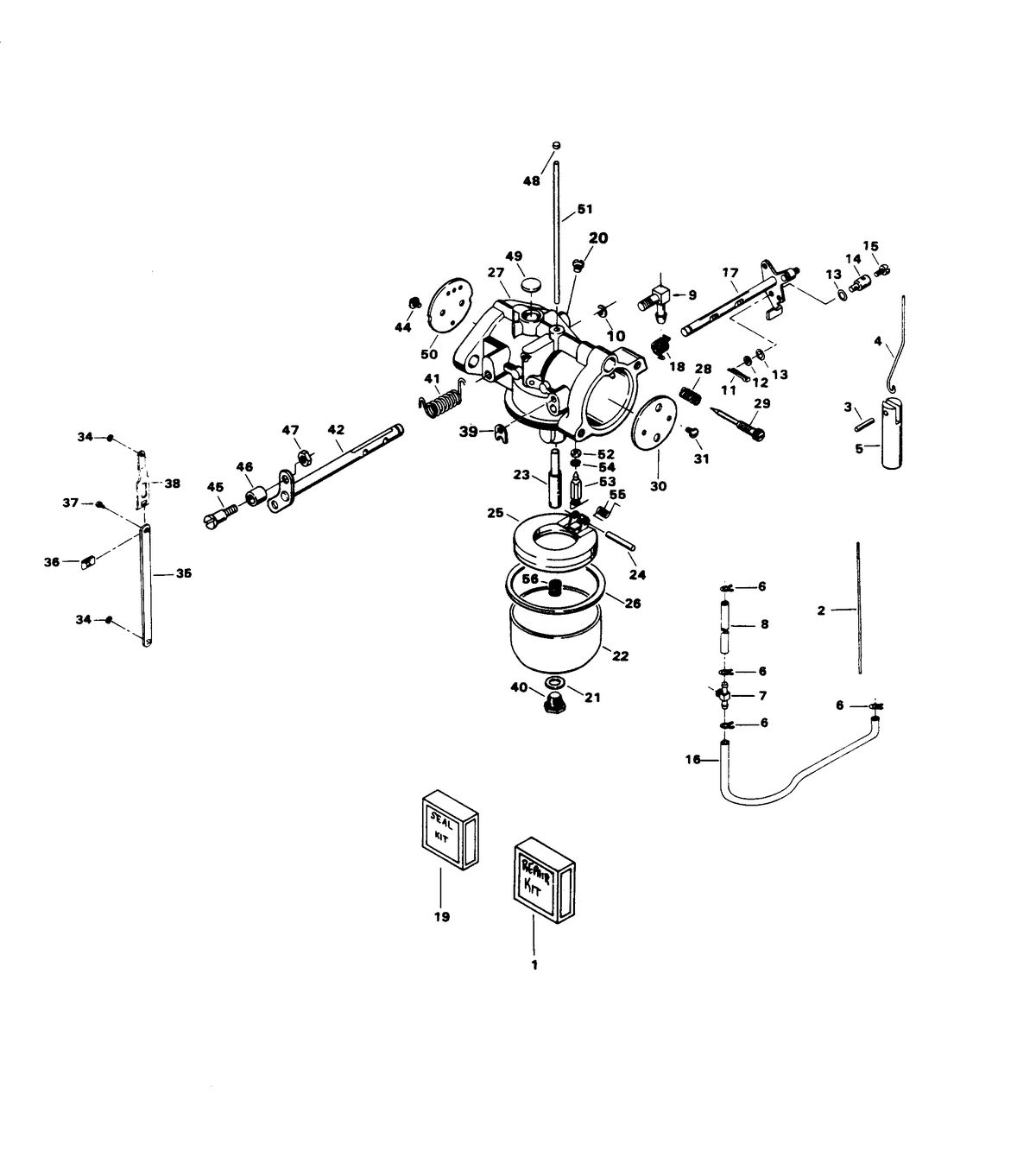

CHRYSLER - 90 (1984) - CARBURETOR

Ref ID	Description	Price
1	REPAIR PARTS KIT. (#FK10151) Comment: INCLUDES ALL ITEMS MARKED WITH AN ASTERISK () Qty Required For Repair: 1 Minimum Order Qty: 1 INCLUDES ALL ITEMS MARKED WITH AN ASTERISK ()	NLA
2	LINK, CHOKE (#F85509-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F8550-1, F85509 Supersedes: F8550-1, F85509	NLA
3	GROOVE PIN (#17-F2033) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F2023, F8513 Supersedes: F2023, F8513	NLA
4	CHOKE ROD (#F372925) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	PLUNGER (#F391926-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F391926 Supersedes: F391926	NLA
6	CLAMP (#54-63933) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
7	FUEL FITTING (BOTTOM CARBURETOR) (#F10164) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	FUEL LINE (#32-8M0108355) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821	$42.99 ~~$50.49~~
9	ELBOW (TOP CARBURETOR) (#F10156) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F10149 Supersedes: F10149	NLA
10	E-RING (#FO16620) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F10131 Supersedes: F10131	NLA
11	COTTER PIN (#18-26953) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$3.20 ~~$4.00~~
12	PLAIN WASHER (#12-27882) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$1.12 ~~$1.16~~
13	O-RING SEAL (#25-68211) Qty Required For Repair: 5 Minimum Order Qty: 1 Qty Required For Repair: 5	$1.04 ~~$1.30~~
14	SWIVEL, TOP CARBURETOR (#F184033-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F184033 Supersedes: F184033	NLA
15	FILL HD SCREW, 6 - 32 X 1/4 (#10-F1059) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F1058 Qty Required For Repair: 2 Supersedes: F1058	NLA
16	FUEL LINE (#32-82722881) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	CHOKE SHAFT AND LEVER (#F10159) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	CHOKE SHAFT RETURN SPRING (#24-F10143) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	VALVE SEAT KIT (#FK10120-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F10120, F10150, FK10120 Supersedes: F10120, F10150, FK10120	$35.20 ~~$36.67~~
20	JET - NOZZLE VENT (#1399-5317) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.12 ~~$3.90~~
21	FUEL BOWL RETAINING GASKET (#27-F10090) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F10206 Supersedes: F10206	$2.88 ~~$3.60~~
-	SWIVEL, CHOKE ROD (BOTTOM CARBURETOR) (NOT SHOWN) (#F85033) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	GASKET SET (NOT SHOWN) (#27-FK10139) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FK10199 Supersedes: FK10199	NLA
22	FUEL BOWL (#F10333) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F10127, FO13552 Supersedes: F10127, FO13552	$31.04 ~~$32.33~~
23	MAIN NOZZLE (#F10137) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	FLOAT LEVER PIN (#F10136) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	FLOAT (#F10135) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	FUEL BOWL GASKET (#27-FO15623) Qty Required For Repair: 1 Minimum Order Qty: 5 Supersedes: F10138, FO13551 Minimum Order Qty: 5 Supersedes: F10138, FO13551	$3.28 ~~$4.10~~
27	CARBURETOR COMPLETE (WE-6-1) TOP (#F585061) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	CARBURETOR COMPLETE (WE-6-2) BOTTOM (#F586061) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	IDLE MIXTURE SCREW SPRING (#1395-6103) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	IDLE MIXTURE SCREW (#FO14166) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F10123, F10146 Supersedes: F10123, F10146	$10.08 ~~$12.60~~
30	CHOKE, SHUTTER (#F10161) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	CHOKE AND THROTTLE SHUTTER SCREW (#10-F10140) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
34	RETAINING RING (#53-21058) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
35	THROTTLE TIE BAR W/SWIVEL (#FA178233) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
36	TIE BAR RETAINER NUT (#11-F1693) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.32 ~~$2.90~~
37	FILL HD SCREW, 8 - 32 X 3/8 (#10-F1064) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F1074 Supersedes: F1074	$0.88 ~~$1.10~~
38	TIE BAR END W/SWIVEL (#FA85193) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
39	CLIP, CHOKE SHAFT (#F10160) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
40	MAIN FUEL JET STD. .086 SEA LEVEL (#F10162) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	MAIN FUEL JET OPT. .084 2500 - 5000 FT. (#F10188) Qty Required For Repair: - Minimum Order Qty: 1	NLA
-	MAIN FUEL JET OPT. .080 5000 - 7500 FT. (#F10187) Qty Required For Repair: - Minimum Order Qty: 1	NLA
-	MAIN FUEL JET OPT. .076 7500 FT. AND UP (#F10186) Qty Required For Repair: - Minimum Order Qty: 1	NLA
41	THROTTLE SHAFT RETURN SPRING (#24-F10172) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FO16008 Supersedes: FO16008	NLA
42	THROTTLE SHAFT AND LEVER (#F10157) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
44	SCREW (#10-F10155) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	$2.16 ~~$2.70~~
45	THROTTLE ROLLER SHAFT (#830110) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F333316 Supersedes: F333316	NLA
46	THROTTLE ROLLER (#819225) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F92759 Supersedes: F92759	NLA
47	STOP NUT, 8 - 32 (#11-8267094) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.76 ~~$1.64~~
48	BODY CHANNEL CUP PLUG (#19-F10152) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
49	BODY CHANNEL WELCH PLUG (#19-F10153) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FO4326 Supersedes: FO4326	$1.84 ~~$2.30~~
50	THROTTLE SHUTTER (#1395-6023) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
51	IDLE TUBE (#F10176) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
52	VALVE SEAT (#820719) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FO18005, F10171 Supersedes: FO18005, F10171	$7.20 ~~$9.00~~
53	VALVE ASSY. (#F10170) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
54	RETAINING RING, VALVE (#53-F10167) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.08 ~~$5.10~~
55	SPRING, FLOAT SUPPORT (#24-F10142) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
56	SPRING, NOZZLE COMPRESSION (#24-F10145) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

This assembly is found in these models:

CHRYSLER > 90 (1983)
CHRYSLER > 90 (1984)
