Mercury Marine Parts Catalog

Find the Parts You're Looking For

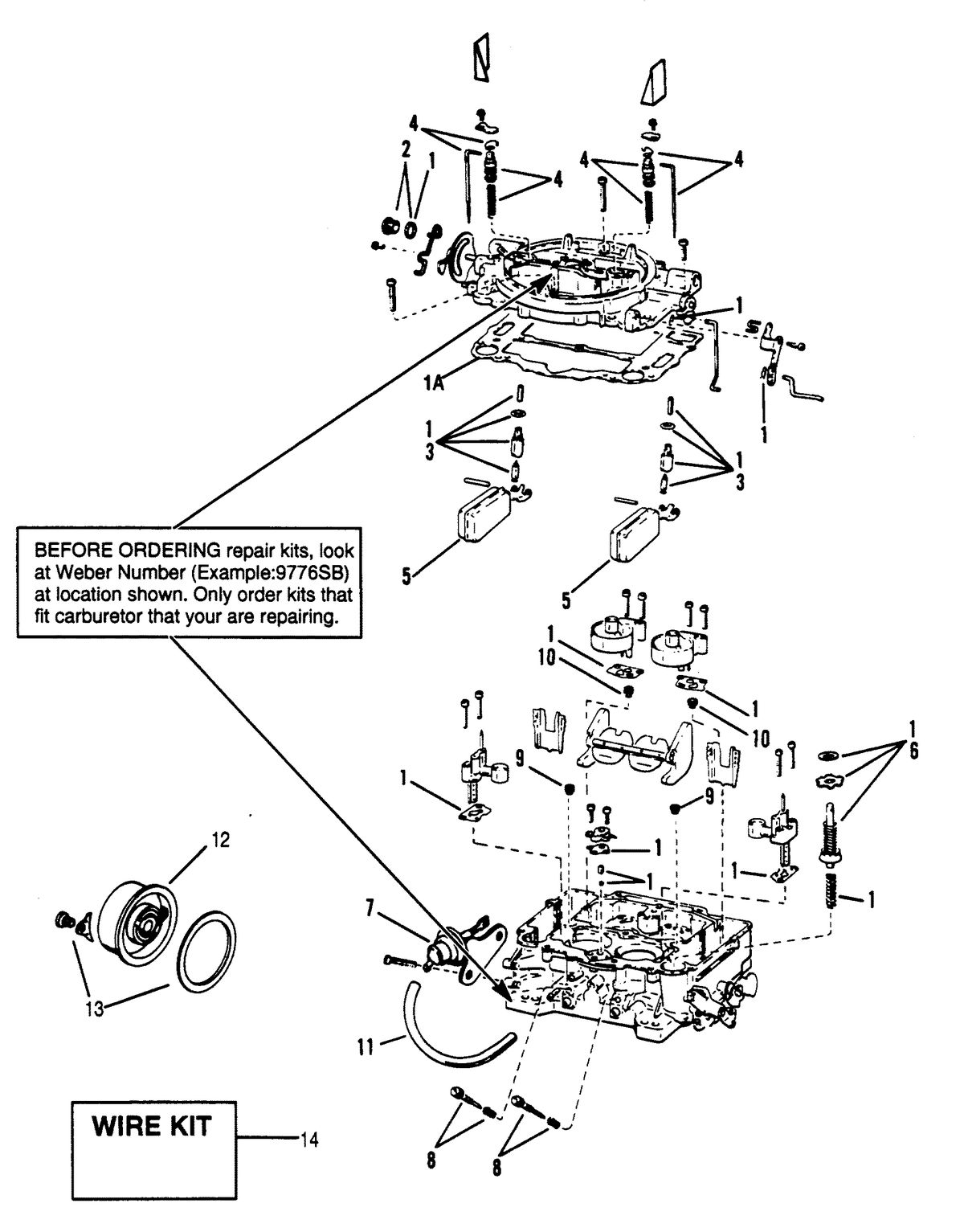

MERCRUISER - 8.2L MIE W/HURTH GM 502 V-8 1990-1992 - CARBURETOR (WEBER)

	Ref ID	Description	Price
	1	OVERHAUL KIT (ALL) (#8M0120193) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 809064, 808697 Supersedes: 809064, 808697	$141.74 ~~$155.49~~
	1A	GASKET (ALL) (#27-809077) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 27-824392 Supersedes: 27-824392	$7.12 ~~$8.90~~
	2	INLET FITTING KIT (ALL) (#811533) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	3	INLET NEEDLE & SEAL KIT (ALL) (#8M0120189) Qty Required For Repair: 2 Qty Required For Repair: 2	$17.76 ~~$18.50~~
	4	METERING ROD KIT (9774) (#811535) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	4	METERING ROD KIT (9776,9776SA,9776SB) (#823431) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	5	FLOAT KIT (ALL) (#8M0120190) Qty Required For Repair: 2 Qty Required For Repair: 2	$22.32 ~~$23.25~~
	6	PUMP PLUNGER KIT (ALL) (#808701) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	7	CHOKE PULL DOWN KIT (AUTOMATIC CHOKE) (#811538) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	8	IDLE MIXTURE SCREW KIT (#8M0154265) Qty Required For Repair: 2 Qty Required For Repair: 2	$20.16 ~~$21.00~~
	9	LEFT PRIMARY METERING JET (9774) (#811540) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	9	RIGHT PRIMARY METERING JET (9774) (#811541) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	9	PRIMARY MEETING JET (9776,9776SA,9776SB) (#823432) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
	10	SECONDARY METERING JET (9774) (#811542) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
	10	SECONDARY METERING JET (9776,9776SA,9776SB) (#811650) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
	11	VACUUM HOSE (AUTOMATIC CHOKE) (#32-1430165) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	12	ELECTRIC CHOKE REPAIR KIT (ELECTRIC CHOKE) (#8M0120194) Qty Required For Repair: 1 Minimum Order Qty: 1	$141.36 ~~$155.00~~
	13	ELECTRIC CHOKE RETAINER KIT (ELECTRIC CHOKE) (#809095) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	14	WIRE KIT (ELECTRIC CHOKE) (#84-809471A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

MERCRUISER 8.2L W/HURTH TRANSMISSION MIE ENGINE CARBURETOR (WEBER)

MERCRUISER 8.2L W/HURTH TRANSMISSION MIE ENGINE CARBURETOR (WEBER)

This assembly is found in these models:

MERCRUISER > 8.2L MIE W/HURTH GM 502 V-8 1990-1992
