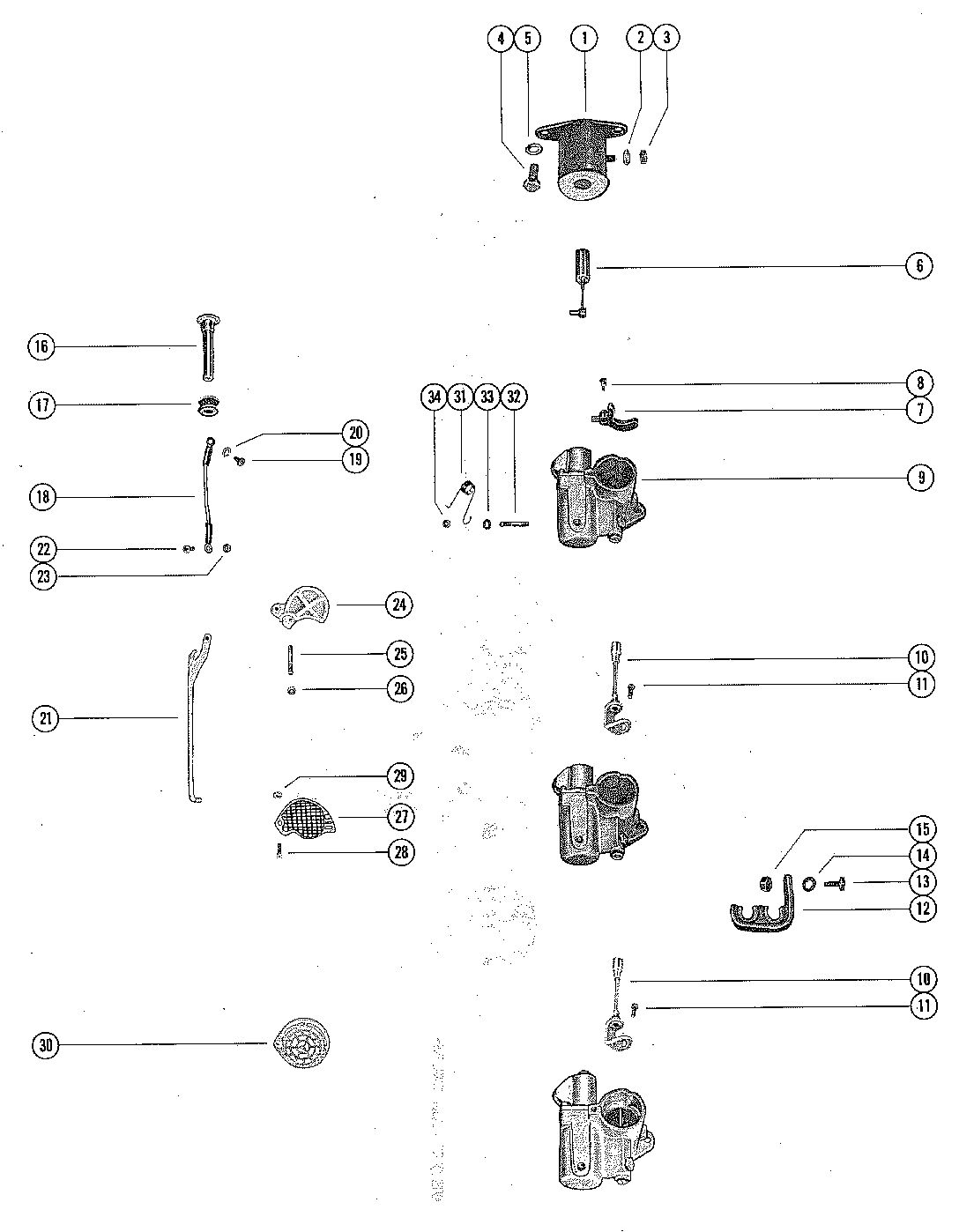

MERCURY - 1000BP - CARBURETOR LINKAGE AND CHOKE SOLENOID

Ref ID	Description	Price
1	CHOKE SOLENOID (#48187) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	LOCKWASHER, SOLENOID TERMINAL (#13-26996) Qty Required For Repair: 1 Minimum Order Qty: 15 Minimum Order Qty: 15	$0.96 ~~$1.20~~
3	NUT, SOLENOID TERMINAL (#11-68219) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.32 ~~$2.90~~
4	SCREW, CHOKE SOLENOID (3/4") (#10-25299) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
5	LOCKWASHER, CHOKE SOLENOID SCREW (#13-8M0204647) Qty Required For Repair: 2 Qty Required For Repair: 2	$1.36 ~~$1.70~~
6	PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID (#48315A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	CLUSTER, THROTTLE LEVER (UPPER CARBURETOR) (#52518) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	SCREW, CLUSTER TO THROTTLE LEVER (#1395-6027) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	CARBURETOR ASSEMBLY, COMPLETE (KD-3A) (#1354-3857) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
10	THROTTLE PICK-UP BRACKET ASSEMBLY (#53720A2) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
11	SCREW,THROTTLE BRACKET MOUNTING (1/2") (#10-53651) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	NLA
12	BRACKET, COIL LEAD RETAINER (#59757) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	SCREW, COIL BRACKET (1") (#10-64278) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	WASHER, COIL BRACKET SCREW (#12-8M0204649) Qty Required For Repair: 1	$0.96 ~~$1.20~~
15	NUT, COIL BRACKET SCREW (#11-8M0207775) Qty Required For Repair: 1	$7.52 ~~$9.40~~
16	KNOB, CHOKE ROD (#11-22496) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	GROMMET, CHOKE ROD (#25-20116) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.68 ~~$4.60~~
18	STRAP, CHOKE KNOB TO CHOKE ROD (#49589) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	SCREW, STRAP TO CHOKE KNOB (1/2") (#10-48591) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
20	LOCKWASHER, STRAP SCREW (#13-26996) Qty Required For Repair: 1 Minimum Order Qty: 15 Minimum Order Qty: 15	$0.96 ~~$1.20~~
21	ROD, CHOKE (#48203) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	SCREW, STRAP TO CHOKE ROD (1/2") (#10-48591) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
23	NUT, STRAP TO CHOKE ROD SCREW (#11-46438) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$4.48 ~~$5.60~~
24	SHUTTER, CHOKE - CARBURETOR (#48152) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
25	STUD, CARBURETOR - CHOKE SHUTTER PIVOT (#16-69037) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
26	NUT, CHOKE SHUTTER TO CARBURETOR STUD (#11-20110) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$1.28 ~~$1.60~~
27	SCREEN, FILTER - CARBURETOR (MIDDLE AND TOP) (#35-57819A1) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
28	SCREW, CARBURETOR FILTER SCREEN TO CARBURETOR (3/4") (#10-22523) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
29	NUT, CARBURETOR FILTER SCREEN FASTENING SCREW (#11-20110) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.28 ~~$1.60~~
30	SCREEN, FILTER -CARBURETOR (LOWER) (#35-48406) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	SPRING, CHOKE ROD TENSION (#24-48230) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	STUD, CHOKE ROD SPRING TO CARBURETOR (#10-657461) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.28 ~~$1.60~~
33	SPACER, CHOKE ROD SPRING STUD (#23-32427) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	NUT, CHOKE ROD SPRING TO CARBURETOR STUD (#11-8M0207775) Qty Required For Repair: 1	$7.52 ~~$9.40~~

MERCURY MERC 1000BP /1250BP CARBURETOR LINKAGE AND CHOKE SOLENOID

This assembly is found in these models:

MERCURY > 1000BP
MERCURY > 1250BP
