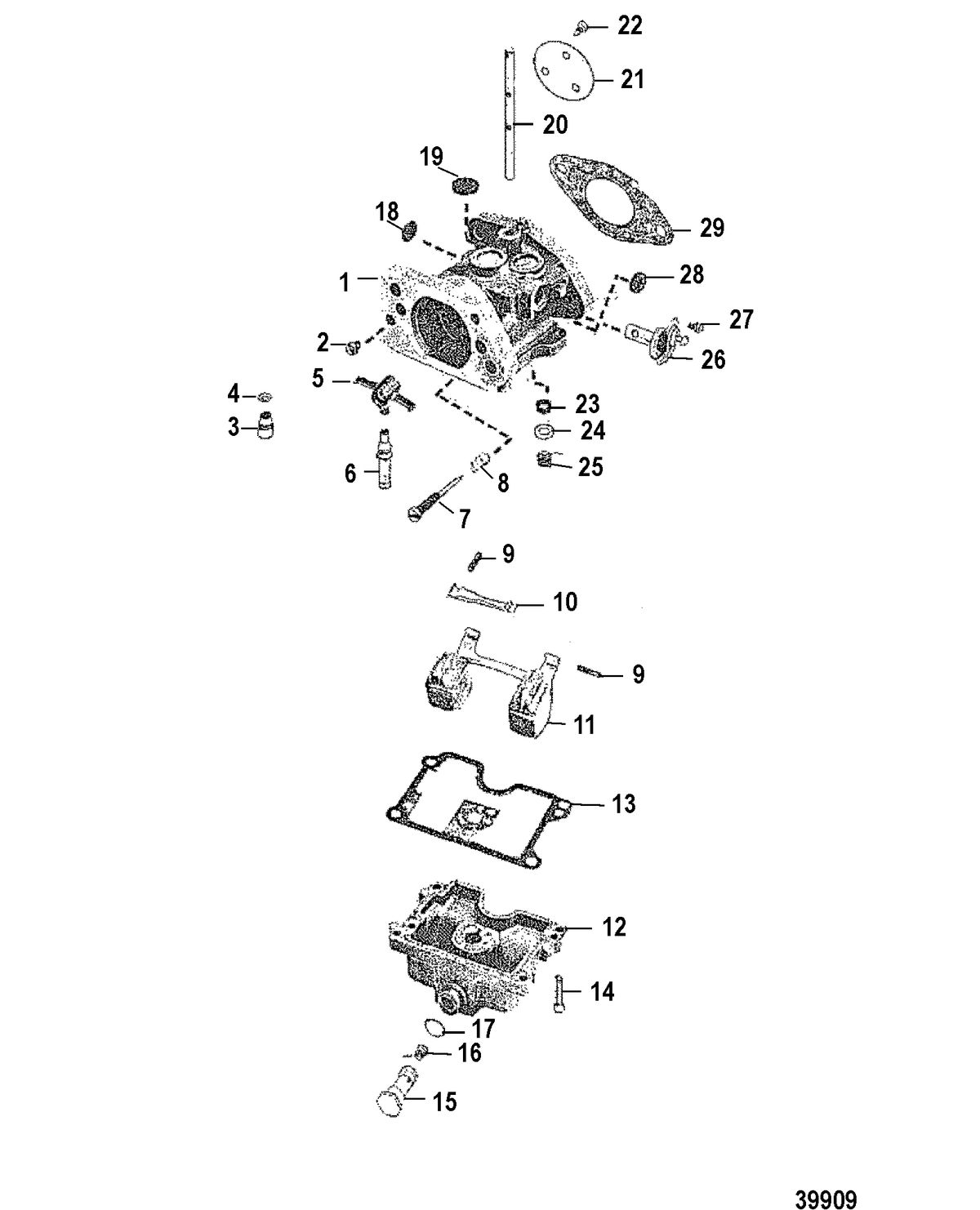

CARBURETOR ASSEMBLY

Ref ID	Description	Price
1	CARBURETOR ASSEMBLY (TOP) (#1379-6071A57) Comment: STAMPED WM-12 Qty Required For Repair: 1 Minimum Order Qty: 1 STAMPED WM-12	NLA
1	CARBURETOR ASSEMBLY (BOTTOM) (#1379-6071A58) Comment: STAMPED WM-12 Qty Required For Repair: 1 Minimum Order Qty: 1 STAMPED WM-12	NLA
1	CARBURETOR ASSEMBLY (TOP) (#1379-6071A57) Comment: STAMPED WM-14 Qty Required For Repair: 1 Minimum Order Qty: 1 STAMPED WM-14	NLA
1	CARBURETOR ASSEMBLY (BOTTOM) (#1379-6071A58) Comment: STAMPED WM-14 Qty Required For Repair: 1 Minimum Order Qty: 1 STAMPED WM-14	NLA
2	JET, (.072), VENT BOWL (#1395-6207) Comment: (WM-10) Qty Required For Repair: 2 Minimum Order Qty: 1 (WM-10) Qty Required For Repair: 2	$10.88 ~~$13.60~~
2	JET, Main (.092), VENT BOWL (#1395-5733) Comment: (WM-12) (WM-14) Qty Required For Repair: 2 Minimum Order Qty: 1 (WM-12) (WM-14) Qty Required For Repair: 2	$3.12 ~~$3.90~~
3	NEEDLE, Inlet (#1395-83181) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$11.49 ~~$16.29~~
4	NOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEAT (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
5	VENTURI ASSEMBLY (#1395-6685) Comment: (WM-10) Qty Required For Repair: 2 Minimum Order Qty: 1 (WM-10) Qty Required For Repair: 2	NLA
5	VENTURI, Plastic (#52106A1) Comment: (WM-12) (WM-14) Qty Required For Repair: 2 Minimum Order Qty: 1 (WM-12) (WM-14) Qty Required For Repair: 2	$41.20 ~~$42.92~~
6	NOT SOLD SEPARATE, NOZZLE (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
7	NOT SOLD SEPARATE, IDLE NEEDLE (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
8	NOT SOLD SEPARATE, SPRING, IDLE MIXTURE (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
9	NOT SOLD SEPARATE, FLOAT PIN (#NSS) Qty Required For Repair: 6 Qty Required For Repair: 6	NLA
10	NOT SOLD SEPARATE, FLOAT LEVER (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
11	FLOAT (#19273) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$30.48 ~~$31.75~~
12	BOWL, Fuel (#1395-6488) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
13	NOT SOLD SEPARATE, GASKET, FUEL BOWL (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
14	NOT SOLD SEPARATE, SCREW, FUEL BOWL (#NSS) Qty Required For Repair: 8 Qty Required For Repair: 8	NLA
15	PLUG, MAIN JET (#1395-6199) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
16	JET, Main (.090) (#1395-6247) Comment: (WM-10) Qty Required For Repair: 2 Minimum Order Qty: 1 (WM-10) Qty Required For Repair: 2	$11.92 ~~$14.90~~
16	JET, (.082), MAIN (#1399-3518) Comment: (WM-12) (WM-14) Qty Required For Repair: 2 Minimum Order Qty: 1 (WM-12) (WM-14) Qty Required For Repair: 2	$3.12 ~~$3.90~~
17	NOT SOLD SEPARATE, GASKET, MAIN JET PLUG (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
18	NOT SOLD SEPARATE, SCREEN, FUEL INLET (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
19	NOT SOLD SEPARATE, WELCH PLUG (9/16") (#NSS) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
20	SHAFT, Throttle (TOP) (#1395-4807) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	SHAFT, THROTTLE (BOTTOM) (#1395-7942) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	VALVE, THROTTLE (#1395-6196) Comment: (WM-10) Qty Required For Repair: 2 Minimum Order Qty: 1 (WM-10) Qty Required For Repair: 2	NLA
21	VALVE, THROTTLE (#1395-7639) Comment: (WM-12) (WM-14) Qty Required For Repair: 2 Minimum Order Qty: 1 (WM-12) (WM-14) Qty Required For Repair: 2	NLA
22	NOT SOLD SEPARATE, SCREW, VALVE TO THROTTLE SHAFT (#NSS) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
23	SEAL, THROTTLE SHAFT (#1395-6204) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$8.40 ~~$10.50~~
24	WASHER, THROTTLE SHAFT (#1395-6203) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
25	NOT SOLD SEPARATE, SPRING, THROTTLE RETURN (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
26	VALVE ASSEMBLY, ENRICHMENT (#1395-6198) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
27	NOT SOLD SEPARATE, SCREW, ENRICHMENT BRACKET (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
28	NOT SOLD SEPARATE, WELCH PLUG (7/16") (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
29	GASKET, CARBURETOR (#27-733771) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$5.12 ~~$6.40~~
-	GASKET KIT (#1395-6200) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$4.64 ~~$5.80~~
-	REPAIR PARTS KIT (#812953) Comment: (WM-10) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834 (WM-10) Qty Required For Repair: 2 Supersedes: 1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834	$120.38 ~~$132.00~~
-	REPAIR PARTS KIT (#812953) Comment: (WM-12) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834 (WM-12) Qty Required For Repair: 2 Supersedes: 1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834	$120.38 ~~$132.00~~
-	REPAIR PARTS KIT (#812953) Comment: (WM-14) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834 (WM-14) Qty Required For Repair: 2 Supersedes: 1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834	$120.38 ~~$132.00~~
-	GASKET SET (#27-73645A87) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

This assembly is found in these models:

MERCURY > 800 (4 CYL. ), 80 (4 CYL.)
