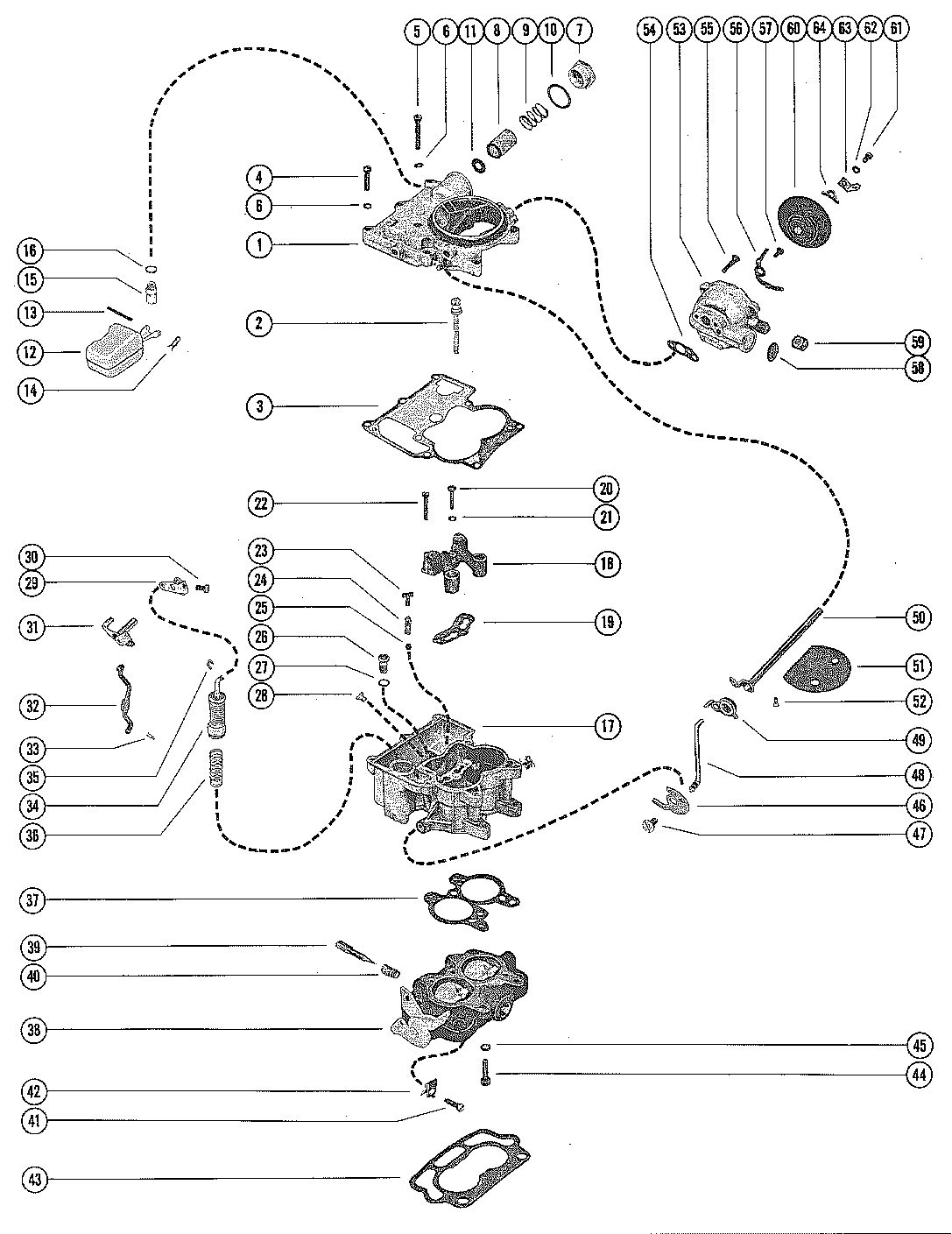

MERCRUISER - 233 FORD 351 V-8 1975-1977 - CARBURETOR ASSEMBLY

Ref ID	Description	Price
-	CARBURETOR ASSEMBLY, COMPLETE (#1376-6152A1) Comment: SERIAL 00000000-04465029 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-04465029	NLA
	CARBURETOR ASSEMBLY, COMPLETE (#1376-6152A1) Comment: SERIAL 04465030-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 04465030-09999999	NLA
1	AIR HORN (NOT SOLD SEPARATELY) (#N.S.S.) Qty Required For Repair: 1	NLA
2	POWER PISTON ASSEMBLY (#1397-5836) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	GASKET, AIR HORN (#) Qty Required For Repair: 1	NLA
4	SCREW, AIR HORN TO FLOAT BOWL (SHORT) (#10-33043) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
5	SCREW, AIR HORN SCREW (#10-33048) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	LOCKWASHER, AIR HORN SCREW (#13-26996) Qty Required For Repair: 8 Minimum Order Qty: 15 Qty Required For Repair: 8 Minimum Order Qty: 15	$0.96 ~~$1.20~~
7	NUT, FUEL INLET-AIR HORN (#1397-3330) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	FILTER, FUEL INLET-AIR HORN (#35-53336Q) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$6.99 ~~$9.99~~
9	SPRING,FUEL INLET-AIR HORN (#3302-9032) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.08 ~~$7.60~~
10	GASKET, FUEL INLET FILTER (LARGE) (#) Qty Required For Repair: 1	NLA
11	GASKET, FUEL INLET FILTER (SMALL) (#) Qty Required For Repair: 1	NLA
12	FLOAT ASSEMBLY (#1397-5837) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	PIN, HINGE - FLOAT TO AIR HORN (#17-33037) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	CLIP, HINGE PIN (#) Qty Required For Repair: 1	NLA
15	INLET NEEDLE AND SEAT ASSEMBLY (#) Qty Required For Repair: 1	NLA
16	GASKET, INLET NEEDLE AND SEAT (#) Qty Required For Repair: 1	NLA
17	FLOAT BOWL ASSEMBLY (#1397-5881) Comment: SERIAL 00000000-04465029 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-04465029	NLA
17	FLOAT BOWL ASSEMBLY (#1397-6366) Comment: SERIAL 04465030-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 04465030-09999999	NLA
18	VENTURI CLUSTER ASSEMBLY, FLOAT BOWL (NOT SOLD SEPARTELY) (#N.S.S.) Qty Required For Repair: 1	NLA
19	GASKET, VENTURI CLUSTER (#) Qty Required For Repair: 1	NLA
20	SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER) (#1397-5843) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	GASKET, VENTURI CLUSTER SCREW (CENTER) (#) Qty Required For Repair: 1	NLA
22	SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER) (#1397-5842) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	GUIDE, PUMP DISCHARGE - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
24	SPRING, PUMP DISCHARGE - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
25	BALL, PUMP DISCHARGE - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
26	POWER VALVE ASSEMBLY, FLOAT BOWL (#) Qty Required For Repair: 1	NLA
27	GASKET, POWER VALVE (#) Qty Required For Repair: 1	NLA
28	JET, FLOAT BOWL (STANDARD) (#1397-5882) Comment: SERIAL 00000000-04465029 Qty Required For Repair: 2 Minimum Order Qty: 1 SERIAL 00000000-04465029 Qty Required For Repair: 2	NLA
28	JET, FLOAT BOWL (STANDARD) (#1397-6365) Comment: SERIAL 04465030-09999999 Qty Required For Repair: 2 Minimum Order Qty: 1 SERIAL 04465030-09999999 Qty Required For Repair: 2	NLA
29	LEVER, PUMP - AIR HORN (#1397-5833) Comment: SERIAL 00000000-04465029 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-04465029	NLA
29	LEVER, PUMP - AIR HORN (#1397-6364) Comment: SERIAL 04465030-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 04465030-09999999	NLA
30	SCREW, AIR HORN PUMP LEVER (#10-33047) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN (#1397-5834) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	ROD, PUMP (#1397-5845) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	CLI, RETAINER - PUMP ROD (#) Qty Required For Repair: 1	NLA
34	PUMP ASSEMBLY, FLOAT BOWL (#) Qty Required For Repair: 1	NLA
35	CLIP, RETAINER - FLOAT BOWL PUMP (#) Qty Required For Repair: 1	NLA
36	SPRING, PUMP RETURN - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
37	GASKET, THROTTLE BODY (#) Qty Required For Repair: 1	NLA
38	THROTTLE BODY ASSEMBLY (NOT SOLD SEPARATELY) (#N.S.S.) Qty Required For Repair: 1	NLA
39	IDLE ADJUSTING NEEDLE, THROTTLE BODY (#) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
40	SPRING, IDLE ADJUSTING NEEDLE (#24-33050) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
41	IDLE STOP SCREW, THROTTLE BODY (#1397-2638) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
42	CLIP, IDLE STOP SCREW (#54-39108) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
43	GASKET, CARBURETOR FLANGE (#) Qty Required For Repair: 3 Qty Required For Repair: 3	NLA
44	SCREW, THROTTLE BODY TO FLOAT BOWL (#10-33052) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
45	LOCKWASHER, THROTTLE BODY SCREW (#13-21547) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
46	CAM, FAST IDLE - FLOAT BOWL (#1397-8877) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
47	SCREW, FAST IDLE CAM TO FLOAT BOWL (#10-33042) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
48	ROD, CHOKE (#1397-5844) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
49	CHOKE LEVER COLLAR ASSEMBLY, CHOKE SHAFT (#1397-4257) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
50	CHOKE SHAFT ASSEMBLY (#1397-5840) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
51	VALVE, CHOKE - CHOKE SHAFT (#1397-5839) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
52	SCREW, CHOKE VALVE TO CHOKE SHAFT (#10-33045) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
53	CHOKE HOUSING ASSEMBLY (#1397-5838) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
54	GASKET, CHOKE HOUSING (#) Qty Required For Repair: 1	NLA
55	SCREW, CHOKE HOUSING TO AIR HORN (#10-33053) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
56	LEVER ASSEMBLY CHOKE PISTON (#1397-2629) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
57	SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING (#10-33056) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
58	WELCH PLUG, CHOKE HOUSING (#19-33041) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
59	PLUG, CHOKE HOUSING (#22-56772) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
60	COVER, CHOKE (#70125A02) Qty Required For Repair: 1 Minimum Order Qty: 1	$159.75 ~~$187.50~~
61	SCREW, CHOKE COVER TO CHOKE HOUSING (#10-33047) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
62	LOCKWASHER, CHOKE COVER SCREW (#13-26995) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.88 ~~$1.10~~
63	TERMINAL, CHOKE COVER SCREW (#86-70879) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
64	RETAINER, CHOKE COVER SCREW (#54-33036) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
--	OVERHAUL KIT (#1397-5831) Qty Required For Repair: 1 Minimum Order Qty: 1	$59.04 ~~$61.50~~
--	POWER CARBURETOR KIT (#1397-5831) Qty Required For Repair: 1 Minimum Order Qty: 1	$59.04 ~~$61.50~~
--	GASKET KIT (#1397-5831) Qty Required For Repair: 1 Minimum Order Qty: 1	$59.04 ~~$61.50~~

MERCRUISER 233 ENGINE CARBURETOR ASSEMBLY

Mercury Marine Parts Catalog

MERCRUISER - 233 FORD 351 V-8 1975-1977 - CARBURETOR ASSEMBLY

This assembly is found in these models:
