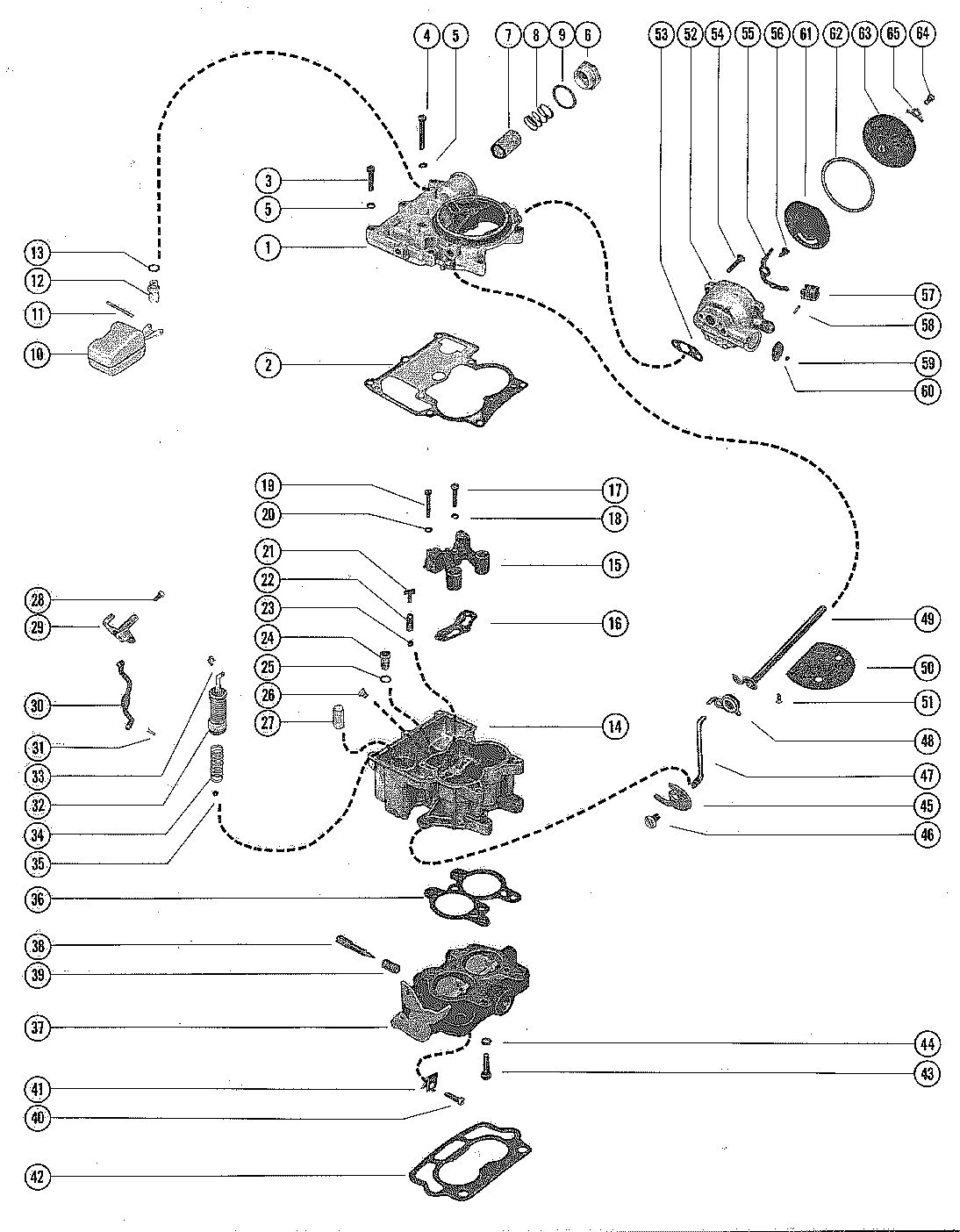

CARBURETOR ASSEMBLY

Ref ID	Description	Price
-	CARBURETOR ASSEMBLY, COMPLETE (#1351-7354A1) Comment: SERIAL 03377341-03770649 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 03377341-03770649	NLA
-	CARBURETOR ASSEMBLY, COMPLETE (#1351-7354A1) Comment: SERIAL 03770650-04469865 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 03770650-04469865	NLA
-	CARBURETOR ASSEMBLY, COMPLETE (#1351-7354A1) Comment: SERIAL 04469866-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 04469866-09999999	NLA
1	AIR HORN (ROCHESTER #7041370) (#N.S.S.) Qty Required For Repair: 1	NLA
2	GASKET, AIR HORN (#) Qty Required For Repair: 1	NLA
3	SCREW, AIR HORN TO FLOAT BOWL (SHORT) (#10-33043) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
4	SCREW, AIR HORN TO FLOAT BOWL (LONG) (#10-33048) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	LOCKWASHER, AIR HORN SCREW (#13-26996) Qty Required For Repair: 8 Minimum Order Qty: 15 Qty Required For Repair: 8 Minimum Order Qty: 15	$0.96 ~~$1.20~~
6	NUT, FUEL INLET - AIR HORN (#1397-4337) Comment: SERIAL 03377321-03770649 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 03377321-03770649	NLA
6	NUT, FUEL INLET - AIR HORN (#1397-3330) Comment: SERIAL 03770650-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 03770650-09999999	NLA
7	FILTER, FUEL INLET (#35-53336Q) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$6.99 ~~$9.99~~
8	SPRING, FUEL FILTER (#3302-9032) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.08 ~~$7.60~~
9	GASKET, FUEL INLET NUT (#) Qty Required For Repair: 1	NLA
10	FLOAT ASSEMBLY (#1397-2060) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	PIN, HINGE - FLOAT TO AIR HORN (ROCHESTER #7002081) (#N.S.S.) Qty Required For Repair: 1	NLA
12	INLET NEEDLE AND SEAT ASSEMBLY (#) Qty Required For Repair: 1	NLA
13	GASKET, INLET NEEDLE AND SEAT (#) Qty Required For Repair: 1	NLA
14	FLOAT BOWL ASSEMBLY (#1397-2636) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	VENTURI CLUSTER ASSEMBLY, FLOAT BOWL (ROCHESTER #7031949) (#N.S.S.) Qty Required For Repair: 1	NLA
16	GASKET, VENTURI CLUSTER (#) Qty Required For Repair: 1	NLA
17	SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)-ROCHESTER #70 (#N.S.S.) Qty Required For Repair: 1	NLA
18	GASKET, VENTURI CLUSTER SCREW (CENTER) (#) Qty Required For Repair: 1	NLA
19	SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)-ROCHESTER #700 (#N.S.S.) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
20	LOCKWASHER, VENTURI CLUATER SCREW (OUTER) (#13-26995) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$0.88 ~~$1.10~~
21	GUIDE, PUMP DISCHARGE - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
22	SPRING, PUMP DISCHARGE - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
23	BALL, PUMP DISCHARGE - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
24	POWER VALVE ASSEMBLY, FLOAT BOWL (#) Qty Required For Repair: 1	NLA
25	GASKET, POWER VALVE (#) Qty Required For Repair: 1	NLA
26	JET, FLOAT BOWL (STANDARD) (#1397-2447) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
27	STRAINER, PUMP INLET (#) Qty Required For Repair: 1	NLA
28	SCREW, AIR HORN PUMP LEVER (#10-33047) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	PUMP HAFT AND LEVER ASSEMBLY, AIR HORN (ROCHESTER #7036764) (#N.S.S.) Qty Required For Repair: 1	NLA
30	ROD, PUMP (ROCHESTER #7036759) (#N.S.S.) Qty Required For Repair: 1	NLA
31	CLIP, RETAINER - PUMP ROD (#) Qty Required For Repair: 1	NLA
32	PUMP ASSEMBLY, FLOAT BOWL (#) Qty Required For Repair: 1	NLA
33	CLIP, RETAINER - FLOST BOWL PUMP (#) Qty Required For Repair: 1	NLA
34	SPRING, PUMP RETURN -FLOAT BOWL (#) Qty Required For Repair: 1	NLA
35	BALL, CHECK -PUMP INLET - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
36	GASKET, THROTTLE BODY (#) Qty Required For Repair: 1	NLA
37	THROTTLE BODY ASSEMBLY (#1397-2639) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	IDLE ADJUSTING NEEDLE, THROTTLE BODY (#) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
39	SPRING, IDLE ASJUSTING NEEDLE (#24-33050) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
40	IDLE STOP SCREW, THROTTLE BODY (#1397-2638) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	CLIP, IDLE STOP SCREW (#54-39108) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
42	GASKET, CARBURETOR FLANGE (#) Qty Required For Repair: 1	NLA
43	SCREW, THROTTLE BODY TO FLOAT BOWL (#10-33052) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
44	LOCKWASHER, THROTTLE BODY SCREW (#13-21547) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
45	CAM, FAST IDLE - FLOAT BOWL (#1397-8877) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
46	SCREW, FAST IDLE CAM TO FLOAT BOWL (#10-33042) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
47	ROD, CHOKE (ROCHESTER #7025667) (#N.S.S.) Qty Required For Repair: 1	NLA
48	CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT (#1397-4257) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
49	CHOKE SHAFT ASSEMBLY (#1397-2632) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
50	VALVE, CHOKE - CHOKE SHAFT (#1397-4358) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
51	SCREW, CHOKE VALVE TO CHOKE SHAFT (#10-33045) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
52	CHOKE HOUSING ASSEMBLY (ROCHESTER #7028837) (#N.S.S.) Qty Required For Repair: 1	NLA
53	GASKET, CHOKE HOUSING (#) Qty Required For Repair: 1	NLA
54	SCREW,CHOKE HOUSING TO AIR HORN (#10-33053) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
55	LEVER ASSEMBLY, CHOKE PISTON-ROCHESTER #7010051 (#N.S.S.) Comment: SERIAL 03377341-03770649 Qty Required For Repair: 1 SERIAL 03377341-03770649	NLA
55	LEVER ASSEMBLY, CHOKE PISTON-ROCHESTER #7045814 (#N.S.S.) Comment: SERIAL 03770650-09999999 Qty Required For Repair: 1 SERIAL 03770650-09999999	NLA
56	SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING (#10-33056) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
57	CHOKE PISTON, CHOKE HOUSING (ROCHESTER #7021502 (#N.S.S.) Qty Required For Repair: 1	NLA
58	PIN, CHOKE PISTON TO CHOKE PISTON LEVER (#17-33049) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
59	PLUG, BALL - CHOKE HOUSING (#1397-2050) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
60	WELCH PLUG, CHOKE HOUSING (#19-33041) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
61	PLATE, BAFFLE - CHOKE HOUSING (#1397-2110) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
62	GASKET, STAT COVER AND COIL (#) Qty Required For Repair: 1	NLA
63	STAT, STAT COVER AND COIL TO CHOKE HOUSING (#1397-4340) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
64	SCREW, STAT COVER AND COIL TO CHOKE HOUSING (#10-33047) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
65	RETAINER, STAT COVER AND COIL CHOKE HOUSING SCREW (#54-33036) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
--	OVERHAUL KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$34.64 ~~$35.99~~
--	POWER CARBURETOR KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$34.64 ~~$35.99~~
--	GASKET KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$34.64 ~~$35.99~~

This assembly is found in these models:

MERCRUISER > 120 GM 153 I/L4 1972-1978
