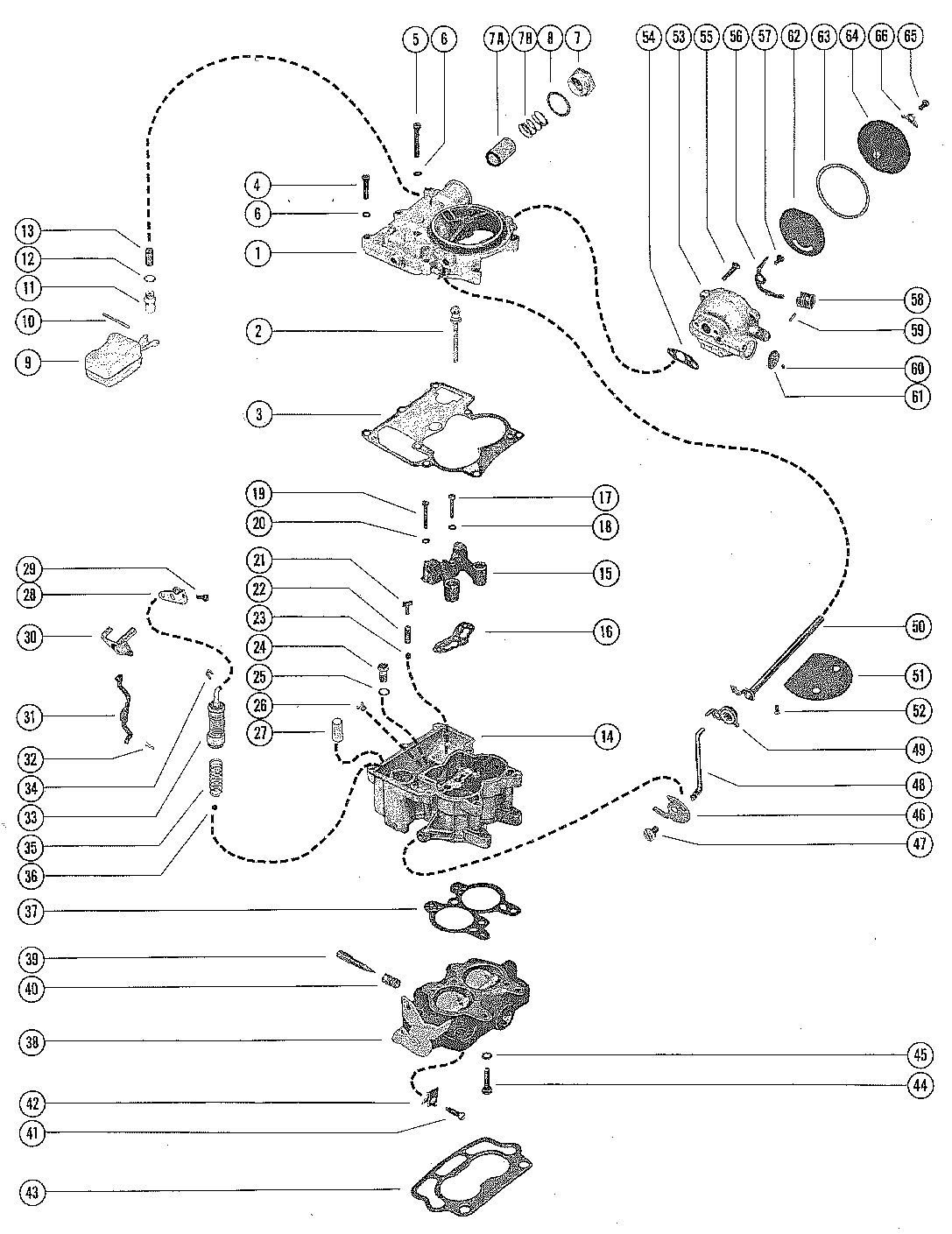

CARBURETOR ASSEMBLY

Ref ID	Description	Price
-	CARBURETOR ASSEMBLY, COMPLETE (#1351-3635A2) Comment: SERIAL 00000000-02816416 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02816416	NLA
-	CARBURETOR ASSEMBLY, COMPLETE (#1351-4293A1) Comment: SERIAL 02816417-02911439 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02816417-02911439	NLA
-	CARBURETOR ASSEMBLY, COMPLETE( (#1351-4293A1) Comment: SERIAL 02911440-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02911440-09999999	NLA
1	AIR HORN (#1397-3852) Comment: SERIAL 00000000-02816416 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02816416	NLA
1	AIR HORN (#1397-4336) Comment: SERIAL 02816417-02911439 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02816417-02911439	NLA
1	AIR HORN (#1397-4336) Comment: SERIAL 02911440-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02911440-09999999	NLA
2	POWER PISTON ASSEMBLY (#1397-2256) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	GASKET, AIR HORN (#) Qty Required For Repair: 1	NLA
4	SCREW, AIR HORN TO FLOAT BOWL (SHORT) (#10-33043) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
5	SCREW, AIR HORN TO FLOAT BOWL (LONG) (#10-33048) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	LOCKWASHER, AIR HORN SCREW (#13-26996) Qty Required For Repair: 8 Minimum Order Qty: 15 Qty Required For Repair: 8 Minimum Order Qty: 15	$0.96 ~~$1.20~~
7	NUT, FUEL INLET (#11-33631) Comment: SERIAL 02816417-02911439 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02816417-02911439	NLA
7	NUT, FUEL INLET (#1397-4337) Comment: SERIAL 02911440-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02911440-09999999	NLA
7A	FILTER, FUEL INLET (#35-53336Q) Comment: SERIAL 02911440-09999999 Qty Required For Repair: 1 Minimum Order Qty: 2 SERIAL 02911440-09999999 Minimum Order Qty: 2	$6.99 ~~$9.99~~
7B	SPRING, FUEL FILTER 1 (#3302-9032) Comment: SERIAL 02911440-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02911440-09999999	$6.08 ~~$7.60~~
8	GASKET, FUEL INLET NUT (#) Comment: SERIAL 02816417-09999999 Qty Required For Repair: 1 SERIAL 02816417-09999999	NLA
9	FLOAT ASSEMBLY (#1397-2060) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	PIN, HINGE - FLOAT TO AIR HORN (#17-33037) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	INLET NEEDLE AND SEAT ASSEMBLY (#) Qty Required For Repair: 1	NLA
12	GASKET, INLET NEEDLE AND SEAT (#) Qty Required For Repair: 1	NLA
13	STRAINER, INLET NEEDLE AND SEAT (#) Qty Required For Repair: 1	NLA
14	FLOAT BOWL ASSEMBLY (#1397-2993) Comment: SERIAL 00000000-02816416 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02816416	NLA
14	FLOAT BOWL ASSEMBLY (#1397-4258) Comment: SERIAL 02816417-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02816417-09999999	NLA
15	VENTURI CLUSTER ASSEMBLY, FLOAT BOWL (#1397-2640) Comment: SERIAL 00000000-02911439 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02911439	NLA
15	VENTURI CLUSTER ASSEMBLY, FLOAT BOWL (#1397-4259) Comment: SERIAL 02911440-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02911440-09999999	NLA
16	GASKET, VENTURI CLUSTER (#) Qty Required For Repair: 1	NLA
17	SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER) (#10-33034) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	GASKET, VENTURI CLUSTER SCREW (CENTER) (#) Qty Required For Repair: 1	NLA
19	SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER) (#10-33033) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
20	LOCKWASHER, VENTURI CLUSTER SCREW (OUTER) (#13-26995) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$0.88 ~~$1.10~~
21	GUIDE, PUMP DISCHARGE - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
22	SPRING, PUMP DISCHARGE - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
23	BALL, PUMP DISCHARGE - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
24	POWER VALVE ASSEMBLY, FLOAT BOWL (#) Qty Required For Repair: 1	NLA
25	GASKET, POWER VALVE (#) Qty Required For Repair: 1	NLA
26	JET, FLOAT BOWL (STANDARD) (#1397-2994) Comment: SERIAL 00000000-02816416 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02816416	NLA
26	JET, FLOAT BOWL (STANDARD) (#1397-2447) Comment: SERIAL 02816417-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02816417-09999999	NLA
27	STRAINER, PUMP INLET (#) Qty Required For Repair: 1	NLA
28	LEVER, PUMP - AIR HORN (#1397-2048) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	SCREW, AIR HORN PUMP LEVER (#10-33047) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN (#1397-2054) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	ROD, PUMP (#1397-2051) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	CLIP, RETAINER - PUMP ROD (#) Qty Required For Repair: 1	NLA
33	PUMP ASSEMBLY, FLOAT BOWL (#) Qty Required For Repair: 1	NLA
34	CLIP, RETAINER - FLOAT BOWL PUMP (#) Qty Required For Repair: 1	NLA
35	SPRING, PUMP RETURN - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
36	BALL, CHECK - PUMP INLET - FLOAT BOWL (#) Qty Required For Repair: 1	NLA
37	GASKET, THROTTLE BODY (#) Qty Required For Repair: 1	NLA
38	THROTTLE BODY ASSEMBLY (#1397-2639) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
39	IDLE ADJUSTING NEEDLE, THROTTLE BODY(INCLUDED WITH 0) (#1397-2120) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
40	SPRING, IDLE ADJUSTING NEEDLE (#24-33050) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
41	IDLE TOP SCREW, THROTTLE BODY (#1397-2638) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
42	CLIP, IDLE STOP SCREW (#54-39108) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
43	GASKET, CARBURETOR FLANGE(INCLUDED WITH 0,3,4) (#27-64692) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.04 ~~$3.80~~
44	SCREW, THROTTLE BODY TO FLOAT BOWL (#10-33052) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
45	LOCKWASHER, THROTTLE BODY SCREW (#13-21547) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
46	CAM, FAST IDLE - FLOAT BOWL (#1397-8877) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
47	SCREW< FAST IDLE CAM TO FLOAT BOWL (#10-33042) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
47	SCREW, FAST IDLE CAM TO FLOAT BOWL (#10-33042) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
48	ROD, CHOKE (#1397-2052) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
49	CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT (#1397-4257) Comment: SERIAL 00000000-02816416 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02816416	NLA
49	CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT (#1397-4257) Comment: SERIAL 02816417-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02816417-09999999	NLA
50	CHOKE SHAFT ASSEMBLY (#1397-2632) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
51	VALVE, CHOKE - CHOKE SHAFT (#1397-4358) Comment: SERIAL 00000000-02816416 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02816416	NLA
51	VALVE, CHOKE - CHOKE SHAFT (#1397-4358) Comment: SERIAL 02816417-02911439 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02816417-02911439	NLA
52	SCREW, CHOKE VALVE TO CHOKE SHAFT (#10-33045) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
53	CHOKE HOUSING ASSEMBLY (#1397-2630) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
54	GASKET, CHOKE HOUSING (#) Qty Required For Repair: 1	NLA
54	GASKET, CHOKE HOUSING (#) Qty Required For Repair: 1	NLA
55	SCREW, CHOKE HOUSING TO AIR HORN (#10-33053) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
54	GASKET, CHOKE HOUSING (#) Qty Required For Repair: 1	NLA
55	SCREW, CHOKE HOUSING TO AIR HORN (#10-33053) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
56	LEVER ASSEMBLY, CHOKE PISTON (#1397-2629) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
57	SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING (#10-33056) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
58	CHOKE PISTON, CHOKE HOUSING (#1397-2059) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
59	PIN, CHOKE PISTON TO CHOKE PISTON LEVER (#17-33049) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
60	PLUG, BALL - CHOKE HOUSING (#1397-2050) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
61	WELCH PLUG, CHOKE HOUSING (#19-33041) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
62	PLATE, BAFFLE - CHOKE HOUSING (#1397-2057) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
63	GASKET, STAT COVER AND COIL (#) Qty Required For Repair: 1	NLA
64	STATE COVER AND COIL ASSEMBLY (#1397-2648) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
65	SCREW, STAT COVER AND COIL TO CHOKE HOUSING (#10-33047) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
66	RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW (#54-33036) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
--	OVERHAUL KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$34.64 ~~$35.99~~
--	POWER CARBURETOR KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$34.64 ~~$35.99~~
--	GASKET KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$34.64 ~~$35.99~~
--	ALTITUDE KIT (5,000 FT.) (#1397-2992) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
--	ALTITUDE KIT (10,000 FT.) (#1397-2214) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

This assembly is found in these models:

MERCRUISER > 140 GM 181 I/L4 1968-1972
