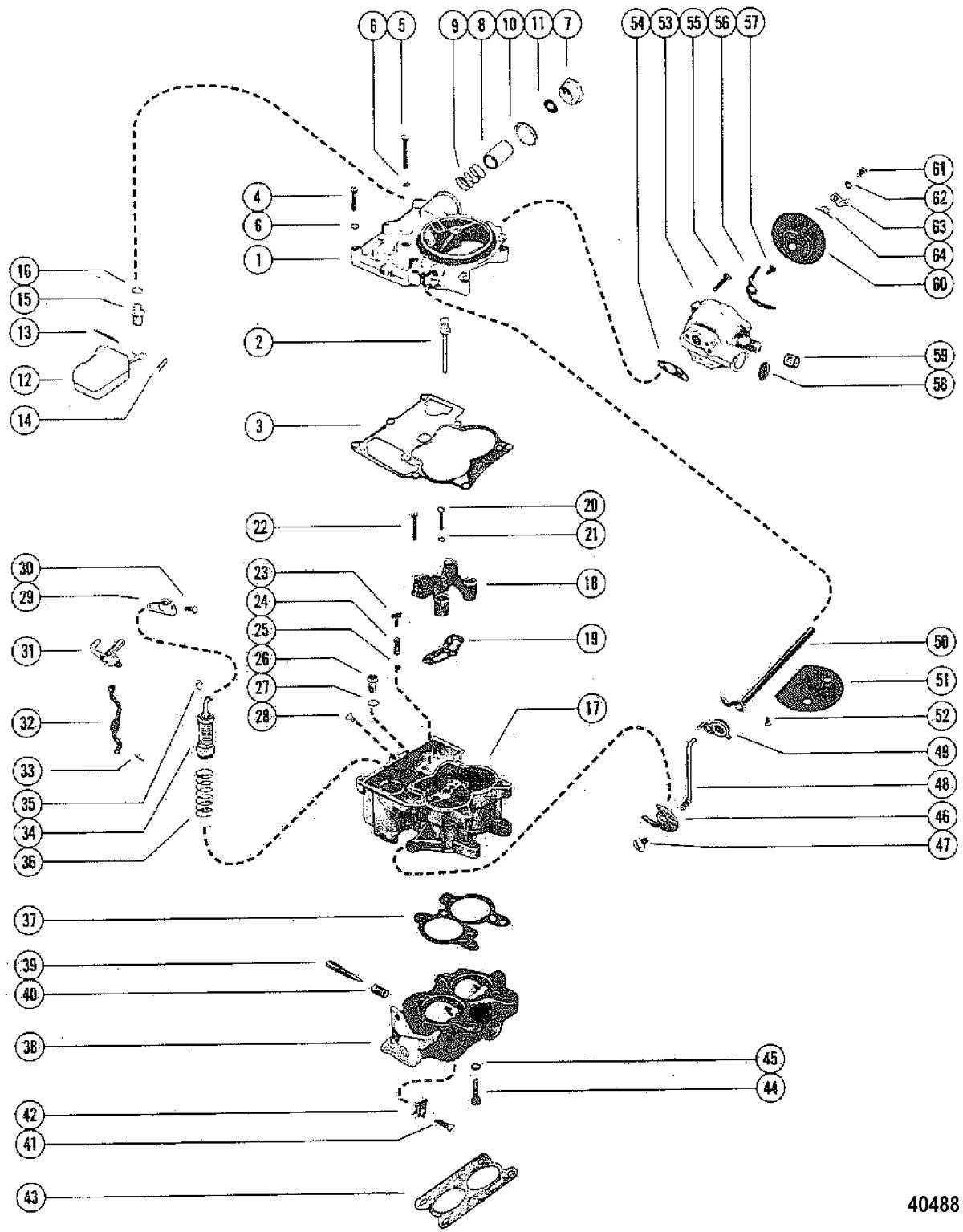

MERCRUISER - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 - Carburetor Assembly

Ref ID	Description	Price
-	CARBURETOR ASSEMBLY, Complete (#3310-860071A4) Qty Required For Repair: 1 Minimum Order Qty: 1	$1,199.88 ~~$1,269.71~~
1	Not Sold Separate, AIR HORN (#N.S.S.) Qty Required For Repair: 1	NLA
2	Not Sold Separate, POWER PISTON ASSEMBLY (#N.S.S.) Comment: (ROCHESTER#7009718) Qty Required For Repair: 1 (ROCHESTER#7009718)	NLA
3	Not Sold Separate, GASKET, Air Horn (#N.S.S.) Qty Required For Repair: 1	NLA
4	SCREW, Air Horn to Float Bowl (SHORT) (#10-33043) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
5	SCREW, Air Horn to Float Bowl (LONG) (#10-33048) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	LOCKWASHER, (#10) Stainless Steel (#13-26996) Qty Required For Repair: 8 Minimum Order Qty: 15 Qty Required For Repair: 8 Minimum Order Qty: 15	$0.96 ~~$1.20~~
7	NUT, Fuel Inlet - Air Horn (#1397-3330) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	STRAINER, Fuel Inlet - Air Horn (#35-53336Q) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$6.99 ~~$9.99~~
9	SPRING, Fuel Inlet - Air Horn (#3302-9032) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.08 ~~$7.60~~
10	Not Sold Separate, GASKET, Fuel Inlet Nut (Large) (#N.S.S.) Qty Required For Repair: 1	NLA
11	Not Sold Separate, GASKET, Fuel Inlet Filter (SMALL) (#N.S.S.) Qty Required For Repair: 1	NLA
12	FLOAT ASSEMBLY (#1397-5837) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	Not Sold Separate, HINGE-Float to Air Horn (#N.S.S.) Comment: (ROCHESTER #7002081) Qty Required For Repair: 1 (ROCHESTER #7002081)	NLA
14	Not Sold Separate, CLIP, Hinge Pin (#N.S.S.) Qty Required For Repair: 1	NLA
15	Not Sold Separate, INLET NEEDLE & SEAT ASSEMBLY (#N.S.S.) Qty Required For Repair: 1	NLA
16	Not Sold Separate, GASKET, Inlet Needle & Seat (#N.S.S.) Qty Required For Repair: 1	NLA
17	Not Sold Separate, FLOAT BOWL ASSEMBLY (#N.S.S.) Comment: (ROCHESTER#17052724) Qty Required For Repair: 1 (ROCHESTER#17052724)	NLA
18	Not Sold Separate, VENTURI CLUSTER ASSEMBLY, Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
19	Not Sold Separate, GASKET, Venturi Cluster (#N.S.S.) Qty Required For Repair: 1	NLA
20	Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (Center) (#N.S.S.) Comment: ROCHESTER #7009077 Qty Required For Repair: 1 ROCHESTER #7009077	NLA
21	Not Sold Separate, GASKET (#N.S.S.) Qty Required For Repair: 1	NLA
22	Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (Outer) (#N.S.S.) Comment: ROCHESTER #7045762 Qty Required For Repair: 2 ROCHESTER #7045762 Qty Required For Repair: 2	NLA
23	Not Sold Separate, GUIDE, Pump Discharge - Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
24	Not Sold Separate, SPRING, Pump Discharge - Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
25	Not Sold Separate, BALL, Pump Discharge - Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
26	Not Sold Separate, POWER VALVE ASSEMBLY, Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
27	Not Sold Separate, GASKET, Power Valve (#N.S.S.) Qty Required For Repair: 1	NLA
28	JET, Float Bowl (STANDARD) (#1397-6365) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
29	LEVER, Pump - Air Horn (#1397-2048) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	SCREW, Air Horn Pump Lever (#10-33047) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	Not Sold Separate, PUMP SHAFT & LEVER ASSEMBLY, Air Horn (#N.S.S.) Comment: (ROCHESTER #7038788) Qty Required For Repair: 1 (ROCHESTER #7038788)	NLA
32	Not Sold Separate, ROD, Pump (#N.S.S.) Comment: (ROCHESTER#7038799) Qty Required For Repair: 1 (ROCHESTER#7038799)	NLA
33	Not Sold Separate, CLIP, Retainer - Pump Rod (#N.S.S.) Qty Required For Repair: 1	NLA
34	Not Sold Separate, PUMP ASSEMBLY, Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
35	Not Sold Separate, CLIP, Retainer - Float Bowl Pump (#N.S.S.) Qty Required For Repair: 1	NLA
36	Not Sold Separate, SPRING, Pump Return - Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
37	Not Sold Separate, GASKET, Throttle Body (#N.S.S.) Qty Required For Repair: 1	NLA
38	Not Sold Separate, THROTTLE BODY ASSEMBLY (#N.S.S.) Qty Required For Repair: 1	NLA
39	Not Sold Separate, IDLE ADJUSTING NEEDLE, Throttle Body (#N.S.S.) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
40	SPRING, Idle Adjusting Needle (#24-33050) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
41	Not Sold Separate, IDLE STOP SCREW, Throttle Body (#N.S.S.) Comment: (ROCHESTER #7031547) Qty Required For Repair: 1 (ROCHESTER #7031547)	NLA
42	CLIP, Idle Stop Screw (#54-39108) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
43	GASKET, Carburetor Flange (#27-8079821) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	$4.08 ~~$5.10~~
44	SCREW, Throttle Body to Float Bowl (#10-33052) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
45	LOCKWASHER, (.250) Stainless Steel, Throttle Body Screw (#13-26992) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$0.96 ~~$1.20~~
46	CAM, Fast Idle - Float Bowl (#1397-8877) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
47	SCREW, Fast Idle Cam to Float Bowl (#10-33042) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
48	Not Sold Separate, ROD, Choke (#N.S.S.) Comment: (ROCHESTER#7038821) Qty Required For Repair: 1 (ROCHESTER#7038821)	NLA
49	LEVER/COLLAR ASSEMBLY, Choke (#1397-4257) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
50	SHAFT ASSEMBLY, Choke (#1397-5840) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
51	VALVE, Choke - Choke Shaft (#1397-5839) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
52	Not Sold Separate, SCREW, Choke Valve to Choke Shaft (#N.S.S.) Comment: (ROCHESTER #7007627) Qty Required For Repair: 2 (ROCHESTER #7007627) Qty Required For Repair: 2	NLA
53	HOUSING ASSEMBLY, Choke (#1397-5838) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
54	Not Sold Separate, GASKET, Choke Housing (#N.S.S.) Qty Required For Repair: 1	NLA
55	SCREW, Choke Housing to Air Horn (#10-33053) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
56	Not Sold Separate, LEVER ASSEMBLY, Choke Piston (#N.S.S.) Comment: (ROCHESTER #7010051) Qty Required For Repair: 1 (ROCHESTER #7010051)	NLA
57	SCREW, Choke Piston Lever to Choke Housing (#10-33056) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
58	Not Sold Separate, WELCH PLUG, Choke Housing (#N.S.S.) Comment: (ROCHESTER #7003135) Qty Required For Repair: 1 (ROCHESTER #7003135)	NLA
59	PLUG, Choke Housing (#22-56772) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
60	COVER, Choke (#70125A02) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	$159.75 ~~$187.50~~
61	SCREW, Choke Cover to Choke Housing (#10-33047) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
62	LOCKWASHER, (#8) Stainless Steel, Choke Cover Screw (#13-26995) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.88 ~~$1.10~~
63	TERMINAL (#86-70879) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
64	RETAINER (#54-33036) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
--	OVERHAUL KIT (#1397-6367A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$75.92 ~~$79.08~~
--	Not Sold Separate, POWER CARBURETOR KIT (#N.S.S.) Comment: (ROCHESTER#7039315) Qty Required For Repair: 1 (ROCHESTER#7039315)	NLA
--	GASKET KIT (#1397-6367A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$75.92 ~~$79.08~~

MERCRUISER 470 ENGINE Carburetor Assembly

Notes

1: Parts listed "N.S.S." (not sold separately) should be ordered from your local Rochester supplier using the appropriate Rochester part number.

Mercury Marine Parts Catalog

MERCRUISER - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 - Carburetor Assembly

Notes

This assembly is found in these models:
