MERCRUISER - 120 GM 153 I/L4 1979-1982 - CARBURETOR ASSEMBLY

Ref ID	Description	Price
-	CARBURETOR ASSEMBLY, COMPLETE (#1351-7354A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	Not Sold Separate, AIR HORN (#N.S.S.) Comment: (ROCHESTER #7041370) Qty Required For Repair: 1 (ROCHESTER #7041370)	NLA
2	Not Sold Separate, GASKET, Air Horn (#N.S.S.) Qty Required For Repair: 1	NLA
3	SCREW, Air Horn to Float Bowl (SHORT) (#10-33043) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
4	SCREW, Air Horn to Float Bowl (LONG) (#10-33048) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	LOCKWASHER, (#10) Stainless Steel (#13-26996) Qty Required For Repair: 8 Minimum Order Qty: 15 Qty Required For Repair: 8 Minimum Order Qty: 15	$0.96 ~~$1.20~~
6	NUT, Fuel Inlet - Air Horn (#1397-3330) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	STRAINER, Fuel Inlet (#35-53336Q) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$7.49 ~~$10.39~~
8	SPRING, Fuel Filter (#3302-9032) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.32 ~~$7.90~~
9	Not Sold Separate, GASKET, Fuel Inlet Nut (#N.S.S.) Qty Required For Repair: 1	NLA
10	FLOAT ASSEMBLY (#1397-2060) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	Not Sold Separate, PIN, Hinge - Float to Air Horn (#N.S.S.) Comment: (ROCHESTER #7002081) Qty Required For Repair: 1 (ROCHESTER #7002081)	NLA
12	Not Sold Separate, INLET NEEDLE & SEAT ASSEMBLY (#N.S.S.) Qty Required For Repair: 1	NLA
13	Not Sold Separate, GASKET, Inlet Needle & Seat (#N.S.S.) Qty Required For Repair: 1	NLA
14	FLOAT BOWL ASSEMBLY (#1397-2636) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	Not Sold Separate, VENTURI CLUSTER ASSEMBLY, Float Bowl (#N.S.S.) Comment: (ROCHESTER #7031949) Qty Required For Repair: 1 (ROCHESTER #7031949)	NLA
16	Not Sold Separate, Gasket, Venturi Cluster (#N.S.S.) Qty Required For Repair: 1	NLA
17	Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (CENTER) (#N.S.S.) Comment: ROCHESTER #7000294 Qty Required For Repair: 1 ROCHESTER #7000294	NLA
18	Not Sold Separate, GASKET, Venturi Cluster Screw (Center) (#N.S.S.) Qty Required For Repair: 1	NLA
19	Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (Outer) (#N.S.S.) Comment: ROCHESTER #7000293 Qty Required For Repair: 2 ROCHESTER #7000293 Qty Required For Repair: 2	NLA
20	LOCKWASHER, (#8) Stainless Steel, Venturi Cluster Screw (OUTER) (#13-26995) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$0.88 ~~$1.10~~
21	Not Sold Separate, GUIDE, Pump Discharge - Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
22	Not Sold Separate, SPRING, Pump Discharge - Float Bow (#N.S.S.) Qty Required For Repair: 1	NLA
23	Not Sold Separate, BALL, Pump Discharge - Float Bow (#N.S.S.) Qty Required For Repair: 1	NLA
24	Not Sold Separate, VALVE POWER ASSEMBLY, Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
25	Not Sold Separate, GASKET, Power Valve (#N.S.S.) Qty Required For Repair: 1	NLA
26	JET, Float Bowl (STANDARD) (#1397-2447) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
27	Not Sold Separate, STRAINER, Pump Inlet (#N.S.S.) Qty Required For Repair: 1	NLA
28	SCREW, Air Horn Pump Lever (#10-33047) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	Not Sold Separate, PUMP SHAFT & LEVER ASSEMBLY, Air Horn (#N.S.S.) Comment: (ROCHESTER #7036764) Qty Required For Repair: 1 (ROCHESTER #7036764)	NLA
30	Not Sold Separate, ROD, Pump (#N.S.S.) Comment: (ROCHESTER #7036759) Qty Required For Repair: 1 (ROCHESTER #7036759)	NLA
31	Not Sold Separate, CUP, Retainer - Pump Rod (#N.S.S.) Qty Required For Repair: 1	NLA
32	Not Sold Separate, PUMP ASSEMBLY, Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
33	Not Sold Separate, CLIP, Retainer - Float Bowl Pump (#N.S.S.) Qty Required For Repair: 1	NLA
34	Not Sold Separate, SPRING, Pump Return - Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
35	Not Sold Separate, BALL, Check - Pump Inlet - Float Bowl (#N.S.S.) Qty Required For Repair: 1	NLA
36	Not Sold Separate, GASKET, Throttle Body (#N.S.S.) Qty Required For Repair: 1	NLA
37	THROTTLE BODY ASSEMBLY (#1397-2639) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	Not Sold Separate, IDLE ADJUSTING NEEDLE (#N.S.S.) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
39	SPRING (#24-33050) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
40	SCREW, Idle Stop (#1397-2638) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	CLIP (#54-39108) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
42	Not Sold Separate, GASKET, Carburetor Flange (#N.S.S.) Qty Required For Repair: 1	NLA
43	SCREW, Throttle Body to Float Bowl (#10-33052) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
44	LOCKWASHER, Throttle Body Screw (#13-21547) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
45	CAM, Fast Idle - Float Bowl (#1397-8877) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
46	SCREW, Fast Idle Cam to Float Bowl (#10-33042) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
47	Not Sold Separate, ROD, Choke (#N.S.S.) Comment: (ROCHESTER #7025667) Qty Required For Repair: 1 (ROCHESTER #7025667)	NLA
48	LEVER/COLLAR ASSEMBLY, Choke (#1397-4257) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
49	SHAFT ASSEMBLY, Choke (#1397-2632) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
50	VALVE, Choke - Choke Shaft (#1397-4358) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
51	SCREW, Choke Valve to Choke Shaft (#10-33045) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
52	Not Sold Separate, CHOKE HOUSING ASSEMBLY (#N.S.S.) Comment: (ROCHESTER #7028837) Qty Required For Repair: 1 (ROCHESTER #7028837)	NLA
53	Not Sold Separate, GASKET, Choke Housing (#N.S.S.) Qty Required For Repair: 1	NLA
54	SCREW, Choke Housing to Air Horn (#10-33053) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
55	Not Sold Separate, LEVER ASSEMBLY, Choke Piston (#N.S.S.) Comment: (ROCHESTER #7045814) Qty Required For Repair: 1 (ROCHESTER #7045814)	NLA
56	SCREW, Choke Piston Lever to Choke Housing (#10-33056) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
57	Not Sold Separate, CHOKE PISTON, Choke Housing (#N.S.S.) Comment: (ROCHESTER #7021502) Qty Required For Repair: 1 (ROCHESTER #7021502)	NLA
58	PIN, Choke Piston to Choke Piston Lever (#17-33049) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
59	PLUG, Ball - Choke Housing (#1397-2050) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
60	WELCH PLUG, Choke Housing (#19-33041) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
61	PLATE, Baffle - Choke Housing (#1397-2110) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
62	Not Sold Separate, GASKET, Stat Cover & Coil (#N.S.S.) Qty Required For Repair: 1	NLA
63	COIL ASSEMBLY (#1397-4340) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
64	SCREW, Stat Cover & Coil to Choke Housing (#10-33047) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
65	RETAINER, Stat Cover & Coil to Choke Housing Scew (#54-33036) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
--	OVERHAUL KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$36.00 ~~$37.49~~
--	GASKET KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$36.00 ~~$37.49~~

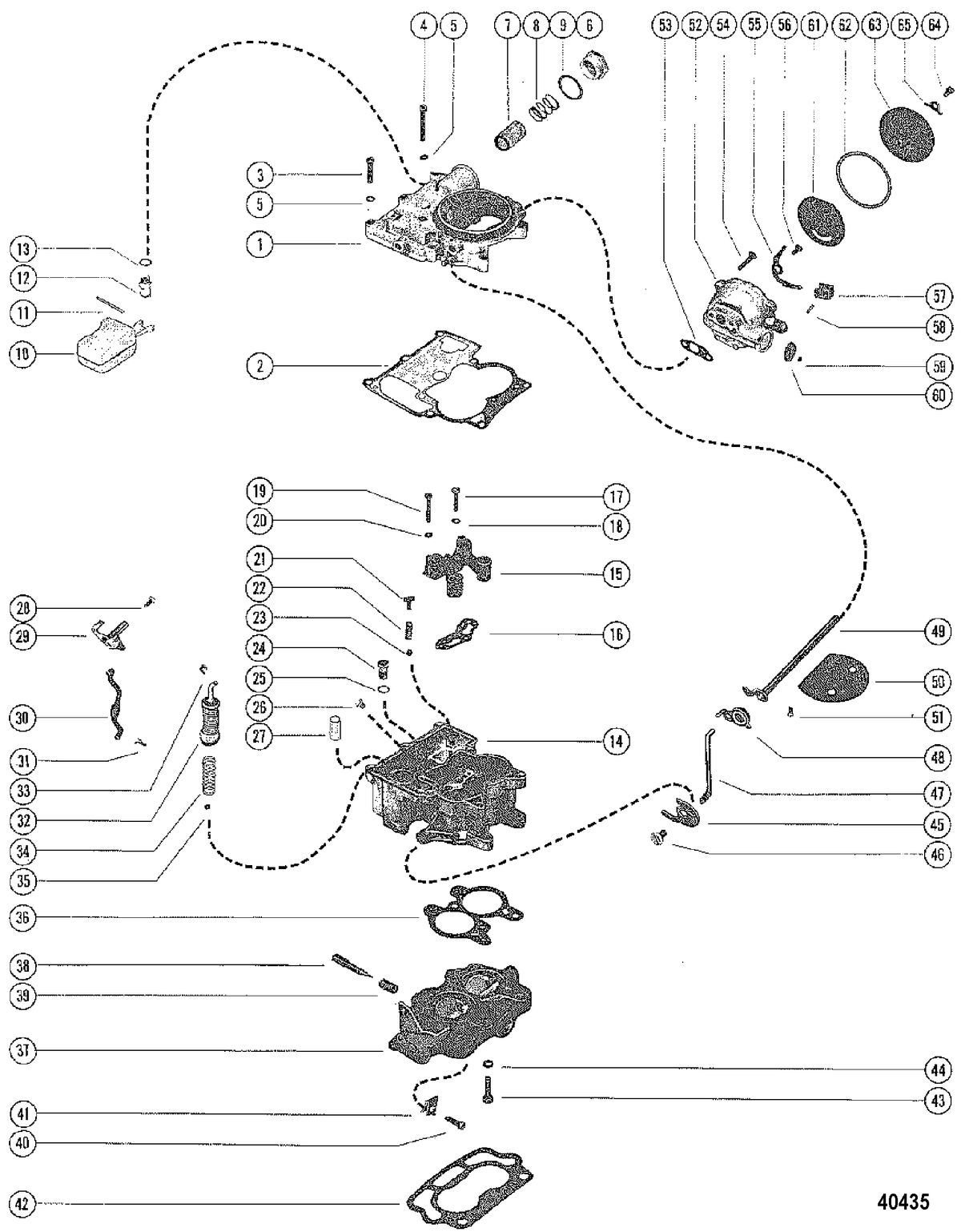

MERCRUISER 120 ENGINE CARBURETOR ASSEMBLY

Notes

1: Parts listed "N.S.S." (not sold separately) should be ordered from your local Rochester supplier using the appropriate Rochester part number.

This assembly is found in these models:

MERCRUISER > 120 GM 153 I/L4 1979-1982
