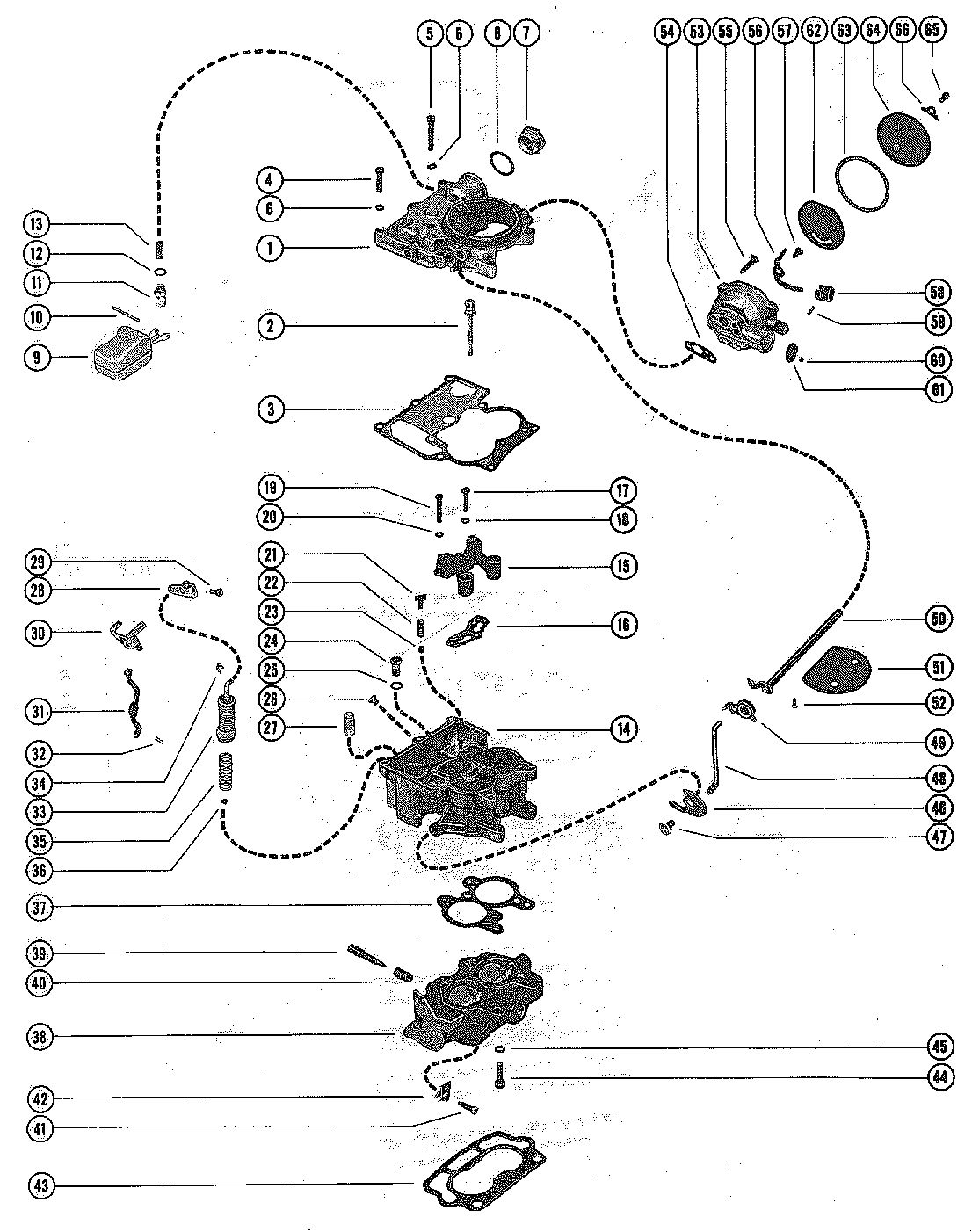

MERCRUISER - 150 GM 230 I/L6 1964-1966 - CARBURETOR ASSEMBLY COMPLETE(SINGLE CARB)

Ref ID	Description	Price
-	CARBURETOR ASSEMBLY, COMPLETE (#1338-2633) Comment: SERIAL 01830152-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 01830152-09999999	NLA
1	AIR HORN (#1397-2635) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	POWER PISTON ASSEMBLY (#1397-2256) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	GASKET, AIR HORN (#) Comment: SERIAL 00000003-000004,5 Qty Required For Repair: 1 SERIAL 00000003-000004,5	NLA
4	SCREW, AIR HORN TO FLOAT BOWL (SHORT) (#10-33043) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
5	SCREW, AIR HORN TO FLOAT (LONG) (#10-33048) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	LOCKWASHER, AIR HORN SCREW (#13-26996) Qty Required For Repair: 8 Minimum Order Qty: 15 Qty Required For Repair: 8 Minimum Order Qty: 15	$0.96 ~~$1.20~~
7	NUT, FUEL INLET - AIR HORN (#11-33631) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	GASKET, FUEL INLET NUT (#) Comment: SERIAL 00000003-000004,5 Qty Required For Repair: 1 SERIAL 00000003-000004,5	NLA
9	FLOAT ASSEMBLY (#1397-2060) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	PIN, HINGE - FLOAT TO AIR HORN (#17-33037) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	INLET NEEDLE AND SEAT ASSEMBLY (#) Comment: SERIAL 00000004-00000005 Qty Required For Repair: 1 SERIAL 00000004-00000005	NLA
12	GASKET, INLET NEEDLE AND SEAT (#) Comment: SERIAL 00000003-00004,5, Qty Required For Repair: 1 SERIAL 00000003-00004,5,	NLA
13	STRAINER, INLET NEEDLE AND SEAT (#) Comment: SERIAL 00000004-00000005 Qty Required For Repair: 1 SERIAL 00000004-00000005	NLA
14	FLOAT BOWL ASSEMBLY (#1397-2636) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	VENTURI CLUSTER ASSEMBLY, FLOAT BOWL (#1397-2640) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	GASKET, VENTURI CLUSTER (#) Comment: SERIAL 00000003-000004,5 Qty Required For Repair: 1 SERIAL 00000003-000004,5	NLA
17	SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER) (#10-33034) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	GASKET, VENTURI CLUSTER SCREW (CENTER) (#) Comment: SERIAL 00000003-000004,5 Qty Required For Repair: 1 SERIAL 00000003-000004,5	NLA
19	SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER) (#10-33033) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
20	LOCKWASHER, VENTURI CLUSTER SCREW (OUTER) (#13-26995) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$0.88 ~~$1.10~~
21	GUIDE, PUMP DISCHARGE - FLOAT BOWL (#) Comment: SERIAL 00000000-00000005 Qty Required For Repair: 1 SERIAL 00000000-00000005	NLA
22	SPRING, PUMP DISCHARGE - FLOAT BOWL (#) Comment: SERIAL 00000000-00000005 Qty Required For Repair: 1 SERIAL 00000000-00000005	NLA
23	BALL, PUMP DISCHARGE - FLOAT BOWL (#) Comment: SERIAL 00000000-00000005 Qty Required For Repair: 1 SERIAL 00000000-00000005	NLA
24	POWER VALVE ASSEMBLY, FLOAT BOWL (#) Comment: SERIAL 00000000-00000005 Qty Required For Repair: 1 SERIAL 00000000-00000005	NLA
25	GASKET, POWER VALVE (#) Comment: SERIAL 00000003-000004,5 Qty Required For Repair: 1 SERIAL 00000003-000004,5	NLA
26	JET, FLOAT BOWL (STANDARD) (#1397-2448) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	STRAINER, PUMP INLET (#) Comment: SERIAL 00000000-00000005 Qty Required For Repair: 1 SERIAL 00000000-00000005	NLA
28	LEVER, PUMP - AIR HORN (#1397-2048) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	SCREW, AIR HORN PUMP LEVER (#10-33047) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN (#1397-2054) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	ROD, PUMP (#1397-2051) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	CLIP, RETAINER - PUMP ROD (#) Comment: SERIAL 00000004-00000005 Qty Required For Repair: 1 SERIAL 00000004-00000005	NLA
33	PUMP ASSEMBLY, FLOAT BOWL (#) Comment: SERIAL 00000004-00000005 Qty Required For Repair: 1 SERIAL 00000004-00000005	NLA
34	CLIP, RETAINER - FLOAT BOWL PUMP (#) Comment: SERIAL 00000004-00000005 Qty Required For Repair: 1 SERIAL 00000004-00000005	NLA
35	SPRING, PUMP RETURN - FLOAT BOWL (#) Comment: SERIAL 00000000-00000005 Qty Required For Repair: 1 SERIAL 00000000-00000005	NLA
36	BALL, CHECK - PUMP INLET - FLOAT BOWL (#) Comment: SERIAL 00000000-00000005 Qty Required For Repair: 1 SERIAL 00000000-00000005	NLA
37	GASKET, THROTTLE BODY (#) Comment: SERIAL 00000003-000004,5 Qty Required For Repair: 1 SERIAL 00000003-000004,5	NLA
38	THROTTLE BODY ASSEMBLY (#1397-2639) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
39	IDLE ADJUSTING NEEDLE, THROTTLE BODY (INCLUDED WITH O) (#1397-2120) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
40	SPRING, IDLE ADJUSTING NEEDLE (#24-33050) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
41	IDLE STOP SCREW, THROTTLE BODY (#1397-2638) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
42	CLIP, IDLE STOP SCREW (#54-39108) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
43	GASKET, CARBURETOR FLANGE (INCLUDED WITH) (#27-64692) Comment: SERIAL 00000003-000004,5 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000003-000004,5	$3.04 ~~$3.80~~
44	SCREW, THROTTLE BODY TO FLOAT BOWL (#10-33052) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
45	LOCKWASHER, THROTTLE BODY SCREW (#13-21547) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
46	CAM, FAST IDLE - FLOAT BOWL (#1397-8877) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
47	SCREW, FAST IDLE CAM TO FLOAT BOWL (#10-33042) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
48	ROD, CHOKE (#1397-2052) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
49	CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT (#1397-4257) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
50	CHOKE SHAFT ASSEMBLY (#1397-2632) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
51	VALVE, CHOKE - CHOKE SHAFT (#1397-2047) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
52	SCREW, CHOKE VALVE TO CHOKE SHAFT (#10-33045) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
53	CHOKE HOUSING ASSEMBLY (#1397-2630) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
54	GASKET, CHOKE HOUSING (#) Comment: SERIAL 00000003-000004,5 Qty Required For Repair: 1 SERIAL 00000003-000004,5	NLA
55	SCREW, CHOKE HOUSING TO AIR HORN (#10-33053) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
56	LEVER ASSEMBLY, CHOKE PISTON (#1397-2629) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
57	SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING (#10-33056) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
58	CHOKE PISTON, CHOKE HOUSING (#1397-2059) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
59	PIN, CHOKE PISTON TO CHOKE PISTON LEVER (#17-33049) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
60	PLUG, BALL - CHOKE HOUSING (#1397-2050) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
61	WELCH PLUG, CHOKE HOUSING (#19-33041) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
62	PLATE, BAFFLE - CHOKE HOUSING (#1397-2057) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
63	GASKET, STAT COVER AND COIL (#) Comment: SERIAL 00000003-000004,5 Qty Required For Repair: 1 SERIAL 00000003-000004,5	NLA
64	STAT COVER AND COIL ASSEMBLY (#1397-2648) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
65	SCREW, STAT COVER AND COIL TO CHOKE HOUSING (#10-33047) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
66	RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW (#54-33036) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
--	OVERHAUL KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$34.64 ~~$35.99~~
--	OFF ENGINE KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$34.64 ~~$35.99~~
--	GASKET KIT (#823427A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$34.64 ~~$35.99~~
--	ALTITUDE KIT (5,000 FT.) (#1397-2213) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
--	ALTITUDE KIT (10,000 FT.) (#1397-2214) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

MERCRUISER 150 ENGINE CARBURETOR ASSEMBLY COMPLETE(SINGLE CARB)

This assembly is found in these models:

MERCRUISER > 150 GM 230 I/L6 1964-1966
