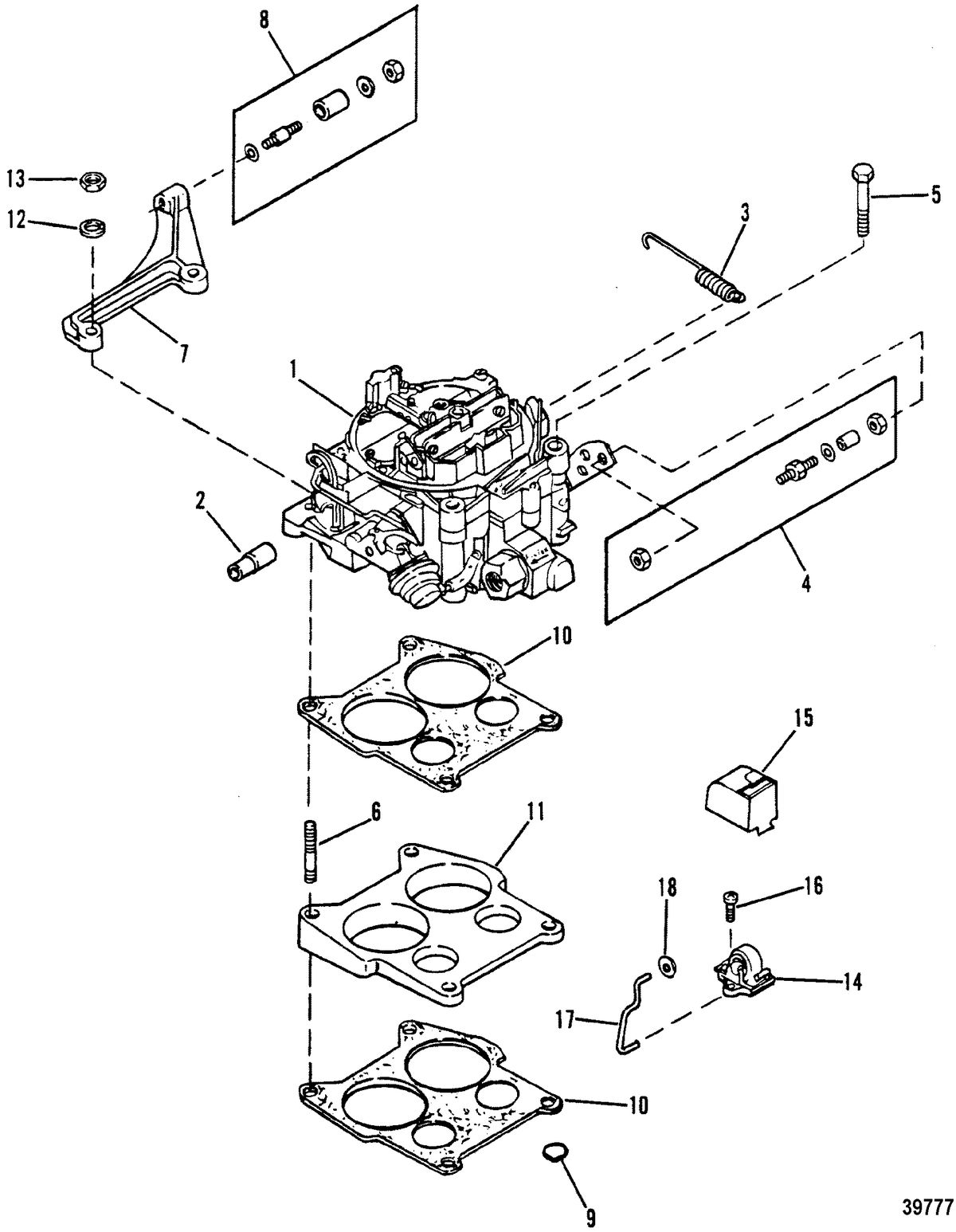

MERCRUISER - 260 MIE GM 350 V-8 1981-1986 - CARBURETOR AND LINKAGE

Ref ID	Description	Price
1	CARBURETOR ASSEMBLY (230) (#1347-9661A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	CARBURETOR ASSEMBLY (260) (#1347-8289A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	CONNECTOR, CARBURETOR (#22-97282) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SPRING, THROTTLE RETURN (#24-897454) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 24-32817 Supersedes: 24-32817	$9.44 ~~$11.80~~
4	STUD KIT, THROTTLE CABLE (#16-97477A3) Qty Required For Repair: 1 Minimum Order Qty: 1	$30.64 ~~$31.92~~
5	SCREW, (3.5 In.), CARBURETOR (3-1/2") HORIZONTAL MOUNTING (#10-74822) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.28 ~~$1.60~~
6	STUD, (.312 x 1.2812), CARBURETOR (#16-63332) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.92 ~~$4.90~~
6	STUD, (5/16 x 1-7/8), CARBURETOR (1-7/8") HORIZONTAL MOUNTING (#16-46857) Qty Required For Repair: 1 Minimum Order Qty: 1	$26.24 ~~$27.33~~
6	STUD, (5/16 x 1-3/4), CARBURETOR (1-3/4") (#16-53724) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	STUD, CARBURETOR (2") (#16-97941) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	STUD, CARBURETOR (2-1/8") HORIZONTAL MOUNTING (#16-97940) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	STUD, (5/16 x 4-3/8), CARBURETOR (4-3/8") (#16-53722) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
7	BRACKET, THROTTLE CABLE (#49929) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	BRACKET, THROTTLE CABLE (HORIZONTAL MOUNTING) (#41329A5) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	STUD KIT, THROTTLE CABLE (#16-73563A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE (#22-12524) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.92 ~~$4.90~~
10	GASKET, CARBURETOR (#27-524572) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$4.24 ~~$5.30~~
11	WEDGE, CARBURETOR (#53513A4) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	WASHER, (.328 x .562 x .062), CARBURETOR STUD (#12-20084) Qty Required For Repair: 6 Minimum Order Qty: 5 Qty Required For Repair: 6 Minimum Order Qty: 5	$2.72 ~~$2.83~~
13	NUT, (.9375-24), CARBURETOR STUD (#11-862902) Qty Required For Repair: 6 Minimum Order Qty: 5 Supersedes: 11-25594 Qty Required For Repair: 6 Minimum Order Qty: 5 Supersedes: 11-25594	$1.84 ~~$2.30~~
14	CHOKE, AUTOMATIC-CARBURETOR (#71464A01) Qty Required For Repair: 1 Minimum Order Qty: 1	$100.70 ~~$110.42~~
15	COVER, AUTOMATIC CHOKE (#63922) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT (#10-69235) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$1.36 ~~$1.70~~
17	ROD, CHOKE (#60915) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	ROD, CHOKE (HORIZONTAL MOUNTING) (#61112) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	CLIP, AUTOMATIC CHOKE ROD (#54-48376) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	CLIP, AUTOMATIC CHOKE ROD (HORIZONTAL MOUNTING) (#54-59989) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

MERCRUISER 230 HP/260 H.P. INBOARD ENGINE (GM) CARBURETOR AND LINKAGE

Mercury Marine Parts Catalog

MERCRUISER - 260 MIE GM 350 V-8 1981-1986 - CARBURETOR AND LINKAGE

This assembly is found in these models:
