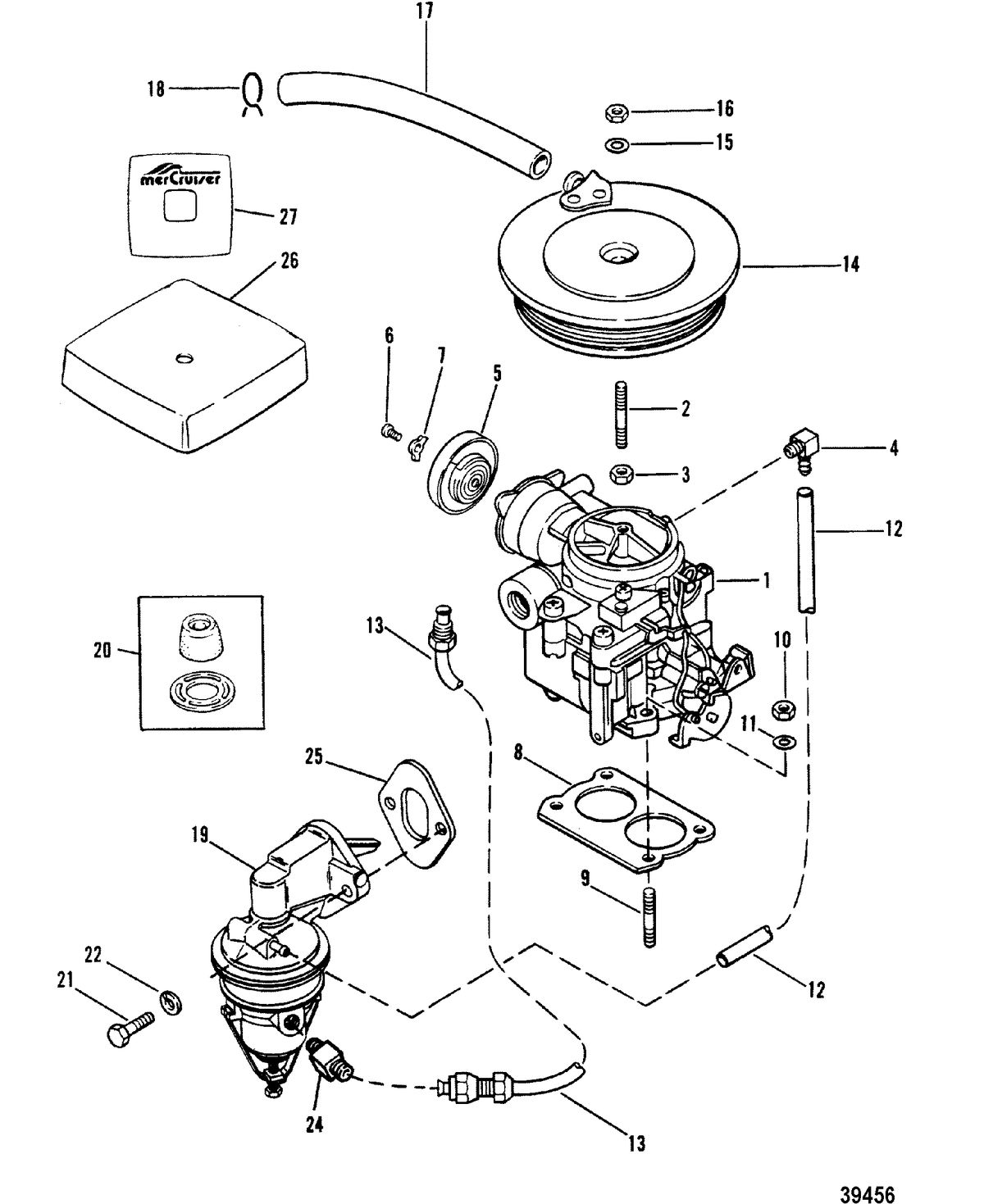

CARBURETOR AND FUEL PUMP(165-170-3.7L)

Ref ID	Description	Price
1	CARBURETOR ASSEMBLY (MERCARB) (#3310-860071A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$1,085.20 ~~$1,148.36~~
2	STUD, (1/4 x 2.125), FLAME ARRESTOR (.250 x 2.125) (#16-70878) Comment: OLD DESIGN Qty Required For Repair: 1 Minimum Order Qty: 1 OLD DESIGN	NLA
2	STUD, FLAME ARRESTOR (.250-20 x 2.50) (#16-18020) Comment: NEW DESIGN Qty Required For Repair: 1 Minimum Order Qty: 1 NEW DESIGN	NLA
3	NUT, FLAME ARRESTOR STUD (#11-8267139) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.08 ~~$2.60~~
4	ELBOW, HOSE - CARBURETOR VENT (#22-54090) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.24 ~~$19.00~~
5	COVER, Choke-CARBURETOR (#70125A02) Qty Required For Repair: 1 Minimum Order Qty: 1	$166.14 ~~$195.00~~
6	SCREW, COVER CLIP (#10-33047) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
7	RETAINER, CARBURETOR COVER (#54-33036) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
8	GASKET, CARBURETOR (#27-8079821) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.24 ~~$5.30~~
9	STUD, (.312 x 1.500), CARBURETOR (#16-8M0113177) Qty Required For Repair: 4 Qty Required For Repair: 4	$4.40 ~~$5.50~~
10	NUT, (.9375-24), CARBURETOR STUD (#11-862902) Qty Required For Repair: 4 Minimum Order Qty: 5 Supersedes: 11-25594 Qty Required For Repair: 4 Minimum Order Qty: 5 Supersedes: 11-25594	$1.92 ~~$2.40~~
11	WASHER, (.328 x .562 x .062), CARBURETOR STUD (#12-20084) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$2.72 ~~$2.83~~
12	HOSE, (34.00 Inches Bulk), VENT (#32-7381567) Qty Required For Repair: 1 Minimum Order Qty: 1	$29.68 ~~$30.99~~
13	LINE ASSEMBLY, Fuel (#32-43187A3) Qty Required For Repair: 1 Minimum Order Qty: 1	$95.68 ~~$104.92~~
14	FLAME ARRESTOR (#805016A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	WASHER, FLAME ARRESTOR (#12-86400) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$1.36 ~~$1.70~~
16	NUT, (.250-28), FLAME ARRESTOR STUD (#11-826709109) Qty Required For Repair: 1 Minimum Order Qty: 5 Supersedes: 11-33825, 11-35045 Minimum Order Qty: 5 Supersedes: 11-33825, 11-35045	$2.88 ~~$3.60~~
17	HOSE, FLAME ARRESTOR TO ROCKER COVER (#32-8M0062669) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12 Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12	$27.28 ~~$28.42~~
18	CLAMP, HOSE TO FLAME ARRESTOR (#54-53101) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	PUMP ASSEMBLY, Fuel, Fuel (#8M0073435) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 861676A 1 Supersedes: 861676A 1	$270.99 ~~$316.49~~
20	FILTER (#35-8M0046752) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 35-803897Q 1 Supersedes: 35-803897Q 1	$13.49 ~~$18.59~~
21	SCREW, (.312-18 x 1.375), FUEL PUMP (#10-31984) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.44 ~~$1.80~~
22	LOCKWASHER, (.312-24), FUEL PUMP SCREW (#13-39107) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.20 ~~$1.50~~
24	FITTING, STRAIGHT - FUEL PUMP (#22-42897) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.44 ~~$19.30~~
25	GASKET, FUEL PUMP (#27-8M0108647) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 27-43186 1 Supersedes: 27-43186 1	$14.96 ~~$18.70~~
26	COVER, Carburetor - FLAME ARRESTOR (#17878A5) Comment: NEW DESIGN Qty Required For Repair: 1 Minimum Order Qty: 1 NEW DESIGN	NLA
27	DECAL, COVER (3.7L) (#37-1372358) Comment: NEW DESIGN Qty Required For Repair: 1 Minimum Order Qty: 1 NEW DESIGN	NLA
-	GASKET SET (#27-43186A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

CARBURETOR AND FUEL PUMP(165-170-3.7L)

This assembly is found in these models:
