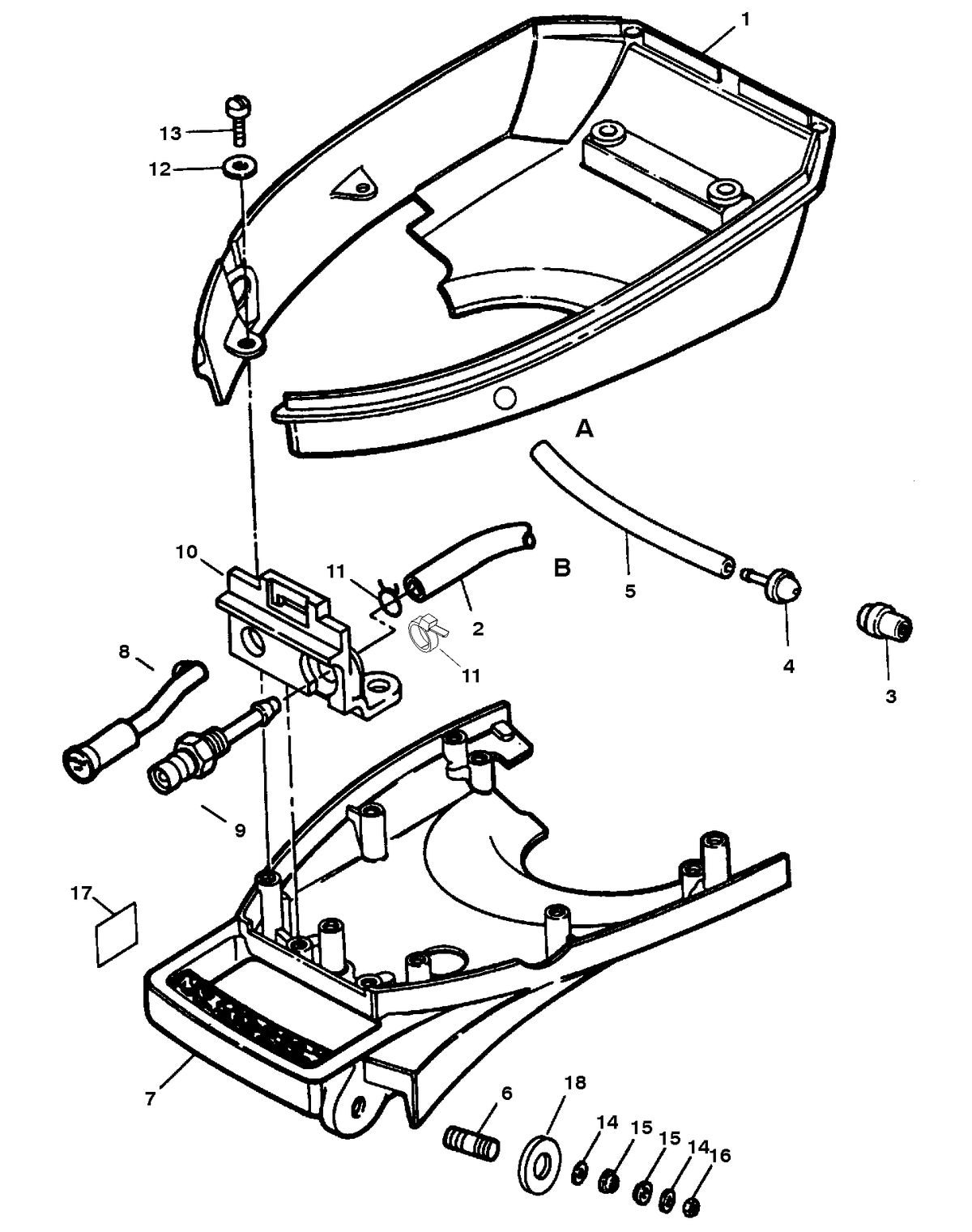

SEARS - 5 H.P. (1996/1997) W/ 3.2 GALLON REMOTE TANK - BOTTOM COWL AND SUPPORT PLATE
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
|
NLA
|
||
| 2 |
Supersedes: 32-819398 53
|
$155.70
|
|
|
| 3 |
|
NLA
|
||
| 4 |
Supersedes: F681066
|
$28.00
|
|
|
| 5 |
Supersedes: 32-819398 53
|
$155.70
|
|
|
| 6 |
Supersedes: 16-F521004
|
NLA
|
||
| 7 |
Supersedes: 100-F687038T, 100-F687038
|
$65.52
|
|
|
| 8 |
|
NLA
|
||
| 9 |
|
NLA
|
||
| 10 |
Supersedes: F687163
|
NLA
|
||
| 11 |
Qty Required For Repair: 3
Supersedes: 54-F2706772, F2705772 |
NLA
|
||
| 11 |
Qty Required For Repair: OPT
Minimum Order Qty: 5 |
$0.40
|
|
|
| 12 |
Qty Required For Repair: 6
|
$1.92
|
|
|
| 13 |
Qty Required For Repair: 6
Supersedes: F1045, F1046, F1315, F1575, F516215 |
NLA
|
||
| 14 |
Qty Required For Repair: 2
|
NLA
|
||
| 15 |
Qty Required For Repair: 2
|
NLA
|
||
| 16 |
Supersedes: F1742
|
NLA
|
||
| 17 |
|
NLA
|
||
| 18 |
|
NLA
|
Notes
2: A = TO CARB TOP FITTING, B = TO FUEL PUMP BOTTOM FITTING
