BOTTOM COWL AND ADAPTOR PLATE

Ref ID	Description	Price
1	ADAPTOR PLATE ASSEMBLY (#53504A2) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02721150	NLA
1	ADAPTOR PLATE ASSEMBLY (#56711A2) Comment: SERIAL 02810637-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02810637-09999999	NLA
2	WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE) (#23-13127) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$4.42 ~~$5.20~~
3	SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE) (#26-36556) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.74 ~~$4.40~~
4	SEAL, RUBBER - ADAPTOR PLATE (#39044) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	GASKET, POWERHEAD TO ADAPTOR PLATE (#27-89937) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$4.93 ~~$5.80~~
6	SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8") (#10-69026) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.45 ~~$1.70~~
7	LOCKWASHER, ADAPTOR PLATE SCREW (#13-26992) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.02 ~~$1.20~~
8	GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (#27-39050) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$7.23 ~~$8.50~~
9	COWL, BOTTOM (#2124-4416A2) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02721150	NLA
9	COWL, BOTTOM (#2124-4416A2) Comment: SERIAL 02810637-02958118 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02810637-02958118	NLA
9	COWL, BOTTOM (#2124-4416A2) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 03016581-09999999	NLA
10	ANCHOR, LATCH - BOTTOM COWL (#39474) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02721150	NLA
10	ANCHOR, LATCH - BOTTOM COWL (NOT AS SHOWN) (#56069) Comment: SERIAL 02810637-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02810637-09999999	NLA
11	SCREW, LATCH ANCHOR TO BOTTOM COWL (1-1/8") (#10-22483) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
12	LOCKWASHER, LATCH ANCHOR SCREW (#13-26992) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.02 ~~$1.20~~
13	GROMMET, CHOKE SHAFT - BOTTOM COWL (#25-39054) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	PLATE ASSEMBLY, COVER - BOTTOM COWL (#39051A1) Comment: SERIAL 00000000-02958118 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02958118	NLA
15	PAD, SOUND - COVER PLATE (#39068) Comment: SERIAL 00000000-02958118 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02958118	NLA
16	SCREW, COVER PLATE TO BOTTOM COWL (3/8") (#10-8M0113176) Comment: SERIAL 00000000-02958118 Qty Required For Repair: 2 SERIAL 00000000-02958118 Qty Required For Repair: 2	$0.94 ~~$1.10~~
14	COVER, AIR INTAKE - BOTTOM COWL (#59100) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 03016581-09999999	NLA
16	SCREW, AIR INTAKE COVER TO BOTTOM COWL (3/8") (#10-8M0113176) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 2 SERIAL 03016581-09999999 Qty Required For Repair: 2	$0.94 ~~$1.10~~
17	SEAL, SHIFT HANDLE - BOTTOM COWL (#39058) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (STARBOARD) (#39145) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT) (#39144) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	SCREW, RUBBER MOUNT TO BOTTOM COWL (1/2") (#10-96138) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
21	NUT, ADAPTOR PLATE TO RUBBER MOUNT (#11-8M0207775) Qty Required For Repair: 2 Qty Required For Repair: 2	$7.91 ~~$9.30~~
22	SPOOL, NYLON - TOP COWL LATCHING (BOTTOM COWL) (#39565) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	SCREW, NYLON SPOOL TO BOTTOM COWL (5/8") (#10-32228) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$1.45 ~~$1.70~~
24	LOCKWASHER, NYLON SPOOL SCREW (#13-26996) Qty Required For Repair: 1 Minimum Order Qty: 15 Minimum Order Qty: 15	$1.02 ~~$1.20~~
25	ADAPTOR, REAR MOUNT TO BOTTOM COWL (#39147) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8") (#10-69026) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.45 ~~$1.70~~
27	LOCKWASHER, REAR MOUNT ADAPTOR SCREW (#13-26992) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.02 ~~$1.20~~
28	MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR) (#39146) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
29	LOCKWASHER, REAR MOUNT (#13-26992) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.02 ~~$1.20~~
30	NUT, ADAPTOR PLATE TO REAR RUBBER MOUNT (#11-8M0207775) Qty Required For Repair: 2 Qty Required For Repair: 2	$7.91 ~~$9.30~~
31	ROD, COWL LATCH - BOTTOM COWL (#63648) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	BRACKET, COWL LATCH ROD (#39099) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	SCREW, COWL LATCH BRACKET TO BOTTOM COWL (7/8") (#10-69026) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.45 ~~$1.70~~
34	LOCKWASHER, COWL LATCH BRACKET SCREW (#13-26992) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.02 ~~$1.20~~
35	HANDLE, COWL LATCH ROD (PORT) (#39083) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
36	HANDLE, COWL LATCH ROD (STARBOARD) (#39098) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	BUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWL (#23-22981) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
38	PIN, ROLL - HANDLE TO COWL LATCH ROD (#17-25319) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$4.17 ~~$4.90~~
39	TUBE, TELL TALE (11") (#32-8M0108355) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821	$43.14 ~~$50.33~~
40	NOZZLE, TELL TALE (#56712) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	SCREW, TELL TALE NOZZLE TO BOTTOM COWL (#10-41228) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
--	STOP SWITCH ASSEMBLY (#32372A2) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02721150	NLA
42	HARNESS, STOP SWITCH (#32372) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02721150	NLA
43	INSULATOR, SLEEVE - INNER SWITCH TERMINALS (#30859) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02721150	NLA
44	SPRING AND CONTACT ASSEMBLY (#24-30858A1) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 2 SERIAL 00000000-02721150 Minimum Order Qty: 2	NLA
45	COVER ASSEMBLY, STOP SWITCH (#38950A1) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02721150	$22.70 ~~$22.25~~
46	WASHER, SEALING-STOP SWITCH (#12-38949) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02721150	NLA
47	LOCKWASHER, STOP SWITCH CONNECTOR (#13-21972) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 3 SERIAL 00000000-02721150 Minimum Order Qty: 3	NLA
48	NUT, STOP SWITCH TO BOTTOM COWL (#11-21971) Comment: SERIAL 00000000-02721150 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02721150	NLA
42	STOP SWITCH ASSEMBLY (#57186A4) Comment: SERIAL 02810637-02958118 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02810637-02958118	NLA
46	WASHER, SEALING - STOP SWITCH (#12-38949) Comment: SERIAL 02810637-02958118 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02810637-02958118	NLA
47	LOCKWASHER, STOP SWITCH CONNECTOR (#13-21972) Comment: SERIAL 02810637-02958118 Qty Required For Repair: 1 Minimum Order Qty: 3 SERIAL 02810637-02958118 Minimum Order Qty: 3	NLA
48	NUT, STOP SWITCH TO BOTTOM COWL (#11-21971) Comment: SERIAL 02810637-02958118 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02810637-02958118	NLA
42	STOP SWITCH ASSEMBLY (#59065A1) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 03016581-09999999	NLA
45	COVER ASSEMBLY, STOP SWITCH (#38950A1) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 03016581-09999999	$22.70 ~~$22.25~~
46	WASHER, STATOR LEAD TO STOP SWITCH (#12-59061) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 03016581-09999999	NLA
47	LOCKWASHER< STOP SWITCH CONNECTOR (#13-21972) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 1 Minimum Order Qty: 3 SERIAL 03016581-09999999 Minimum Order Qty: 3	NLA
48	NUT, STOP SWITCH TO BOTTOM COWL (#11-21971) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 03016581-09999999	NLA
49	LOCKWASHER, STATOR TO LEAD STOP SWITCH (#13-26996) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 1 Minimum Order Qty: 15 SERIAL 03016581-09999999 Minimum Order Qty: 15	$1.02 ~~$1.20~~
50	NUT, STATOR LEAD TO STOP SWITCH (#11-68219) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 1 Minimum Order Qty: 5 SERIAL 03016581-09999999 Minimum Order Qty: 5	$2.47 ~~$2.90~~
51	GROUND WIRE, BOTTOM COWL (4-1/2") (#57845A1) Comment: SERIAL 02810637-02958118 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02810637-02958118	NLA
52	GROUND WIRE, COVER PLATE SCREW (3-5/8") (#46933A1) Comment: SERIAL 02810637-02958118 Qty Required For Repair: 1 Minimum Order Qty: 2 SERIAL 02810637-02958118 Minimum Order Qty: 2	NLA
53	SCREW, STOP SWITCH LEAD TO BOTTOM COWL (3/8") (#10-8M0113176) Comment: SERIAL 02810637-02958118 Qty Required For Repair: 1 SERIAL 02810637-02958118	$0.94 ~~$1.10~~
54	GROUND WIRE, RUBBER MOUNT SCREW AND NUT (#59796A1) Comment: SERIAL 03016581-09999999 Qty Required For Repair: 2 Minimum Order Qty: 1 SERIAL 03016581-09999999 Qty Required For Repair: 2	NLA

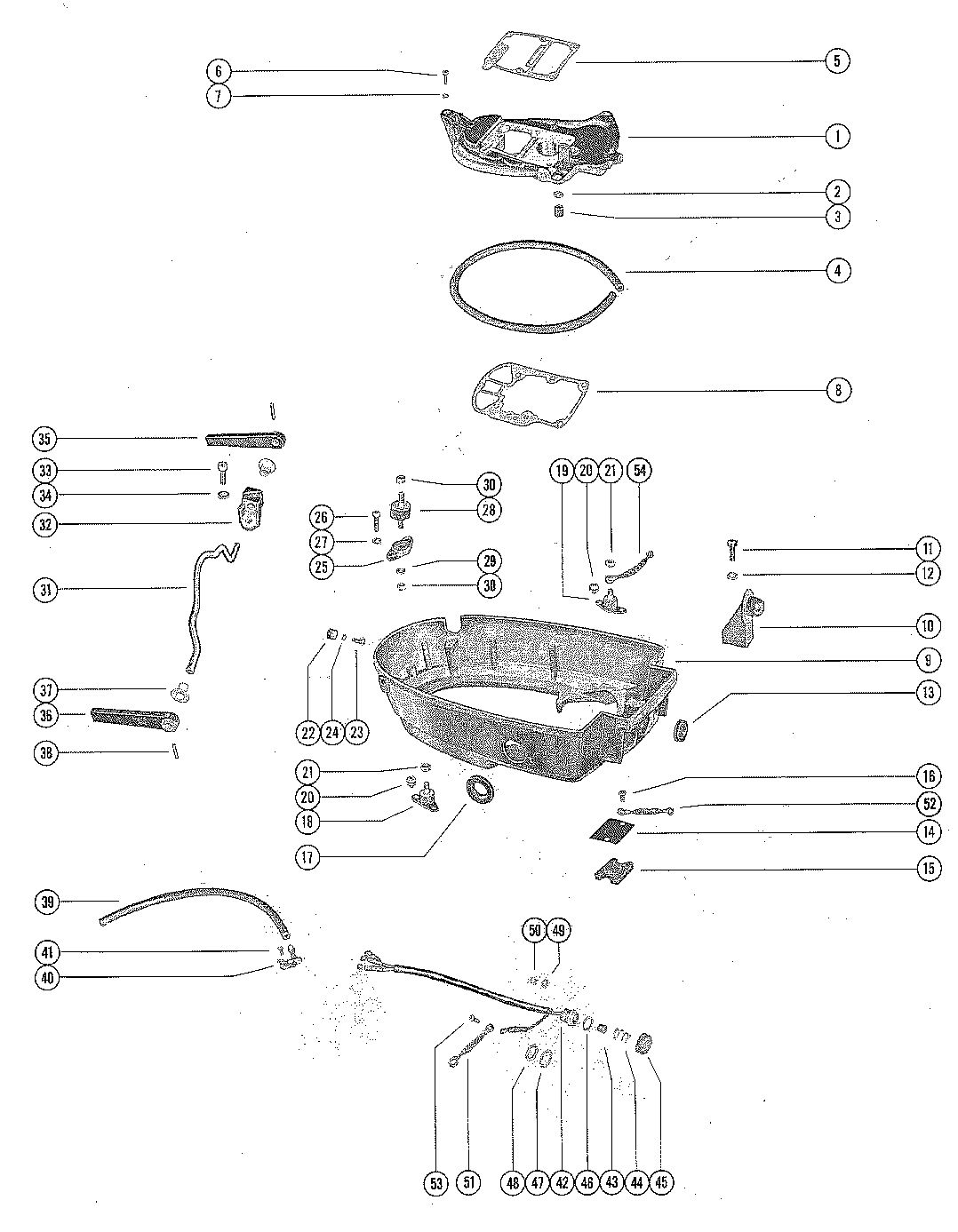

To zoom in, move your mouse over the diagram.

MERCURY MERC 75 BOTTOM COWL AND ADAPTOR PLATE

This assembly is found in these models:

MERCURY > 75

Mercury Marine Parts Catalog

BOTTOM COWL AND ADAPTOR PLATE

This assembly is found in these models:
