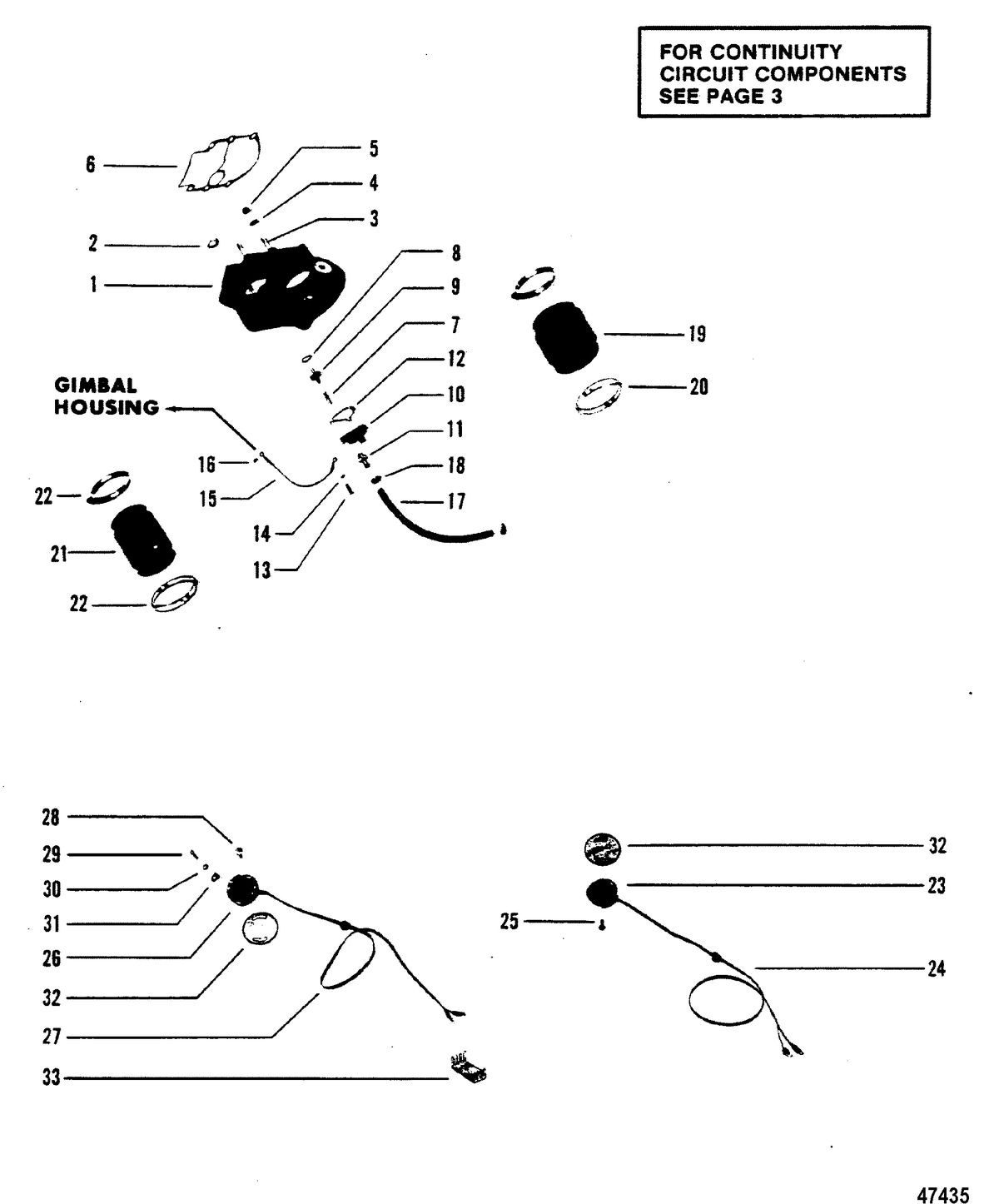

BELL HOUSING

Ref ID	Description	Price
1	BELL HOUSING ASSEMBLY (#62814A3) Qty Required For Repair: 1 Minimum Order Qty: 1	$872.71 ~~$903.43~~
2	SEAL, Oil, BELL HOUSING (#26-48443) Qty Required For Repair: 1 Minimum Order Qty: 1	$16.64 ~~$17.33~~
3	STUD, BELL HOUSING (3-1/4") (#16-54011) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
4	WASHER, (.530 x .870 x .105) Stainless Steel, BELL HOUSING STUD (#12-8M0204665) Qty Required For Repair: 6 Qty Required For Repair: 6	$2.80 ~~$3.50~~
5	NUT, (.500-20) Stainless Steel, BELL HOUSING STUD (#11-35000) Qty Required For Repair: 6 Minimum Order Qty: 2 Qty Required For Repair: 6 Minimum Order Qty: 2	$11.20 ~~$14.00~~
6	GASKET, BELL HOUSING (#27-54014Q1) Qty Required For Repair: 1 Minimum Order Qty: 1	$10.64 ~~$13.29~~
7	SPRING, TENSION - OIL RELEASE CHECK VALVE (#24-48442) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	QUAD RING, OIL RELEASE CHECK VALVE (#25-48452) Qty Required For Repair: 1 Minimum Order Qty: 1	$5.12 ~~$6.40~~
9	CHECK VALVE, OIL RELEASE (#20-48219) Qty Required For Repair: 1 Minimum Order Qty: 1	$67.20 ~~$70.00~~
10	COVER ASSEMBLY, CHECK VALVE GUIDE (#54170A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	CONNECTOR, CHECK VALVE GUIDE COVER (#22-34982) Qty Required For Repair: 1 Minimum Order Qty: 1	$8.96 ~~$11.20~~
12	GASKET, CHECK VALVE GUIDE COVER (#27-540211) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
13	SCREW, (.250-28 x 1.00), CHECK VALVE GUIDE COVER (1") (#10-36137) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$2.24 ~~$2.80~~
14	LOCKWASHER, (.250) Stainless Steel, CHECK VALVE GUIDE COVER SCREW (#13-26992) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$0.96 ~~$1.20~~
15	WIRE, Jumper, GIMBAL HOUSING TO COVER (#57292) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	SCREW, (#10-32 x .250), JUMPER CABLE (#10-47225) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	HOSE, OIL - BELL HOUSING TO GIMBAL HOUSING (12-5/8") (#32-34423) Qty Required For Repair: 1 Minimum Order Qty: 1	$31.04 ~~$32.33~~
18	CLAMP, HOSE (#54-815504104) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 54-54428, 54-809952104, 54-8M2001484, 54-F9005, F24772, F24788, F901788 Qty Required For Repair: 2 Supersedes: 54-54428, 54-809952104, 54-8M2001484, 54-F9005, F24772, F24788, F901788	$5.20 ~~$6.50~~
19	BELLOWS ASSEMBLY, UNIVERSAL JOINT (#60932A4) Qty Required For Repair: 1 Minimum Order Qty: 1	$72.99 ~~$84.99~~
--	CLIP, Grounding, GROUNDING (#54-8M0126505) Qty Required For Repair: 2 Qty Required For Repair: 2	$1.28 ~~$1.60~~
20	CLAMP, BELLOWS (#54-815504372) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 54-31765, 54-801332143, 803346 Qty Required For Repair: 2 Supersedes: 54-31765, 54-801332143, 803346	$12.72 ~~$15.90~~
21	TUBE, EXHAUST (#78632A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$115.67 ~~$126.83~~
22	CLAMP, EXHAUST BELLOWS (#54-815504360) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 54-38889, 54-8M2001506 Qty Required For Repair: 2 Supersedes: 54-38889, 54-8M2001506	NLA
23	SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE) (#805320A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$140.28 ~~$153.80~~
24	HARNESS ASSEMBLY, TRIM LIMIT SWITCH (PORT SIDE) (#84-19279) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	SCREW, (#6-32 x .125), HARNESS ATTACHING (5/23") (PORT SIDE) (#10-63400) Qty Required For Repair: 2 Minimum Order Qty: 4 Qty Required For Repair: 2 Minimum Order Qty: 4	NLA
26	SENDER, DUMMY (STARBOARD SIDE) (#64947) Qty Required For Repair: 1 Minimum Order Qty: 1	$21.12 ~~$22.00~~
27	HARNESS ASSEMBLY, DUMMY SENDER (STARBOARD SIDE) (#84-64987) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	PLUG, HARNESS ATTACHING (STARBOARD SIDE) (#19-96069) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
29	SCREW, (#10-32 x .750) Stainless Steel, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4") (#10-37978) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$2.64 ~~$3.30~~
30	LOCKWASHER, (#10) Stainless Steel, TRIM SENDER AND SWITCH SCREW (#13-26996) Qty Required For Repair: 4 Minimum Order Qty: 15 Qty Required For Repair: 4 Minimum Order Qty: 15	$0.96 ~~$1.20~~
31	RETAINER, TRIM SENDER AND SWITCH SCREW (#57008) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$3.04 ~~$3.80~~
32	INSULATOR, SWITCH AND SENDER (#85-63990) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$6.32 ~~$7.90~~
33	RETAINER, CONNECTOR - TRIM SWITCH LEADS (#79146) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.32 ~~$5.40~~
-	SENDER KIT, Single Station (OPTIONAL) (#805320A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$140.28 ~~$153.80~~
-	SENDER KIT, Dual Station (OPTIONAL) (#805130A8) Qty Required For Repair: 1 Minimum Order Qty: 1	$104.86 ~~$114.98~~
-	GIMBAL RING KIT (#42385A7) Qty Required For Repair: - Minimum Order Qty: 1	NLA

This assembly is found in these models:

MERCRUISER > TR/TRS 1977-1993
