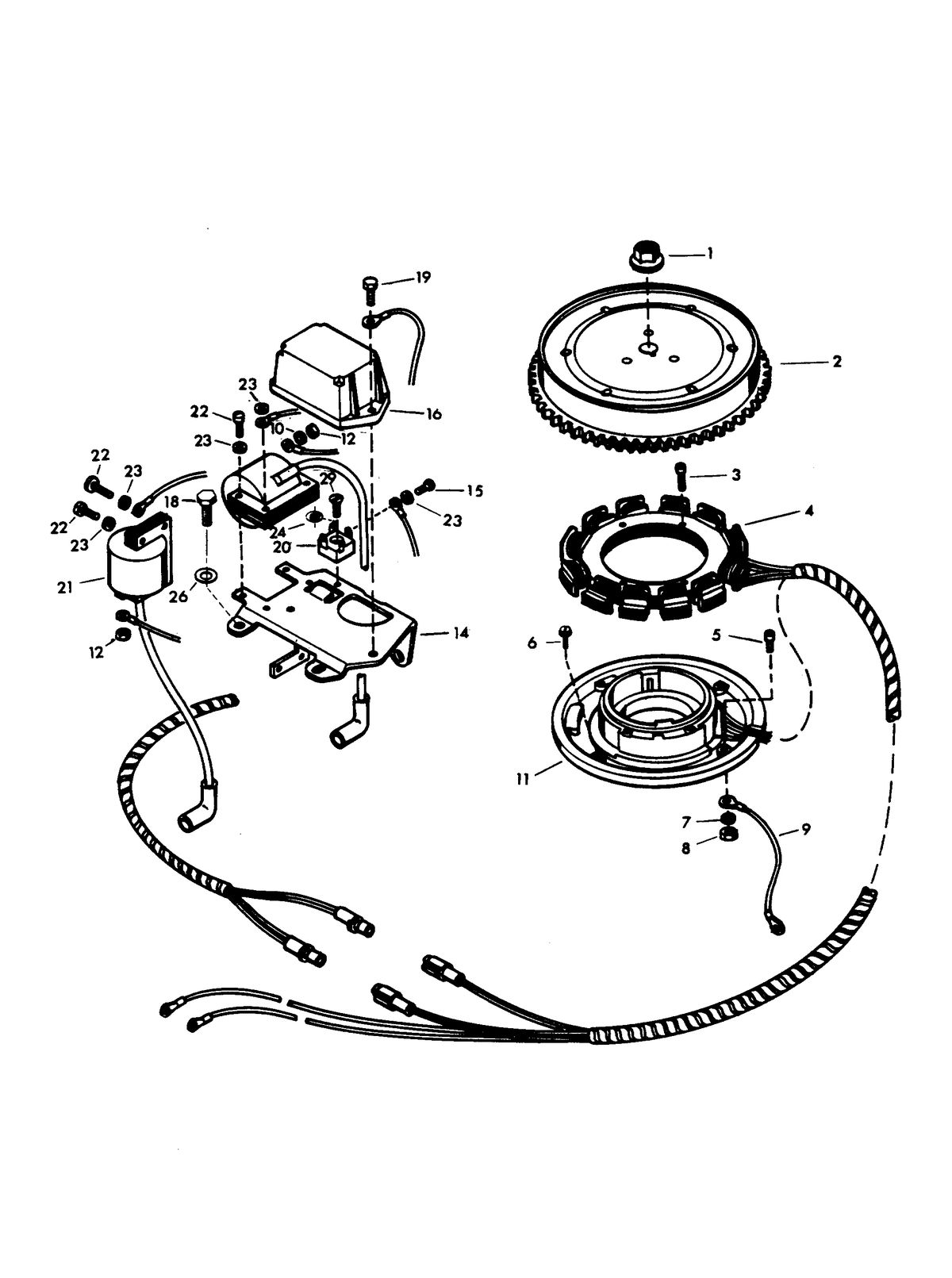

CHRYSLER - 25 (1978) - ALTERNATOR

Ref ID	Description	Price
1	FLYWHEEL NUT, 5/8 - 18 (#11-F2021) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	FLYWHEEL (#F529097) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SLOTTED FILL HD SCREW, 10 - 24 X 1 (#10-68918) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$2.56 ~~$3.20~~
4	STATOR, ALTERNATOR (#F529095-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F529095 Supersedes: F529095	NLA
5	FILL HD SCREW, 10 - 32 X 5/8 (#10-F1092) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	FILL HD SCREW W/SPRING LOCKWASHER, 10 - 32 X 9/16 (#FK2010) Qty Required For Repair: 3 Minimum Order Qty: 1 Supersedes: F2010 Qty Required For Repair: 3 Supersedes: F2010	NLA
7	SPRING LOCKWASHER (#13-26996) Qty Required For Repair: 1 Minimum Order Qty: 15 Minimum Order Qty: 15	$0.96 ~~$1.20~~
8	HEX NUT (#11-68219) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.32 ~~$2.90~~
9	WIRE, STATOR GROUND FOR ELECTRIC START MODELS (#84-F460664) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F4670664 Supersedes: F4670664	NLA
10	INTERNAL TOOTH LOCKWASHER (#13-F1704) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
11	TRIGGER (#F529029) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	NUT, 6 - 32 (#11-F1337) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F12127 Qty Required For Repair: 2 Supersedes: F12127	NLA
14	BRACKET, ELECTRICAL COMPONENTS (#F529358-2) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F529358, F529358-1 Supersedes: F529358, F529358-1	NLA
15	RD HD SCREW, 6 - 32 X 1/4 (#10-69080) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
16	C-D MODULE (#300-888789) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 300-F529301 Supersedes: 300-F529301	NLA
17	DECAL, MAGNAPOWER (NOT SHOWN) (#510373 1) Qty Required For Repair: 1	NLA
18	HEX HD SCREW, 1/4 - 20 X 7/8 (#10-F2008) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F1240, F1534, 10-F1915, F1533, FO1533 Qty Required For Repair: 2 Supersedes: F1240, F1534, 10-F1915, F1533, FO1533	NLA
19	HEX CAP SCREW, 1/4 - 28 X 5/8 (#10-F1715) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F17017, F1746, FE4296228 Qty Required For Repair: 2 Supersedes: F17017, F1746, FE4296228	NLA
20	RECTIFIER (#FK650450) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F510450, F510450-1, 87-F650450, FA617450, FA650450, FA510450, FFF000384 Supersedes: F510450, F510450-1, 87-F650450, FA617450, FA650450, FA510450, FFF000384	NLA
21	IGNITION COIL (#F510475) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
22	SLOTTED PAN HD SCREW, 10 - 24 X 3/4 (#10-41069) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$1.52 ~~$1.90~~
23	LOCKWASHER (#13-26996) Qty Required For Repair: 8 Minimum Order Qty: 15 Qty Required For Repair: 8 Minimum Order Qty: 15	$0.96 ~~$1.20~~
24	INTERNAL TOOTH LOCKWASHER (#13-23836) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	PLAIN WASHER (#12-8M0204649) Qty Required For Repair: 2 Qty Required For Repair: 2	$0.96 ~~$1.20~~
29	PAN HD SCREW, 8 - 32 X 1/2 (#10-F1552) Comment: STATOR PLATE COMPLETE, ORDER COMPONENT PARTS. Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F1521 STATOR PLATE COMPLETE, ORDER COMPONENT PARTS. Supersedes: F1521	NLA

This assembly is found in these models:

CHRYSLER > 25 (1978)
