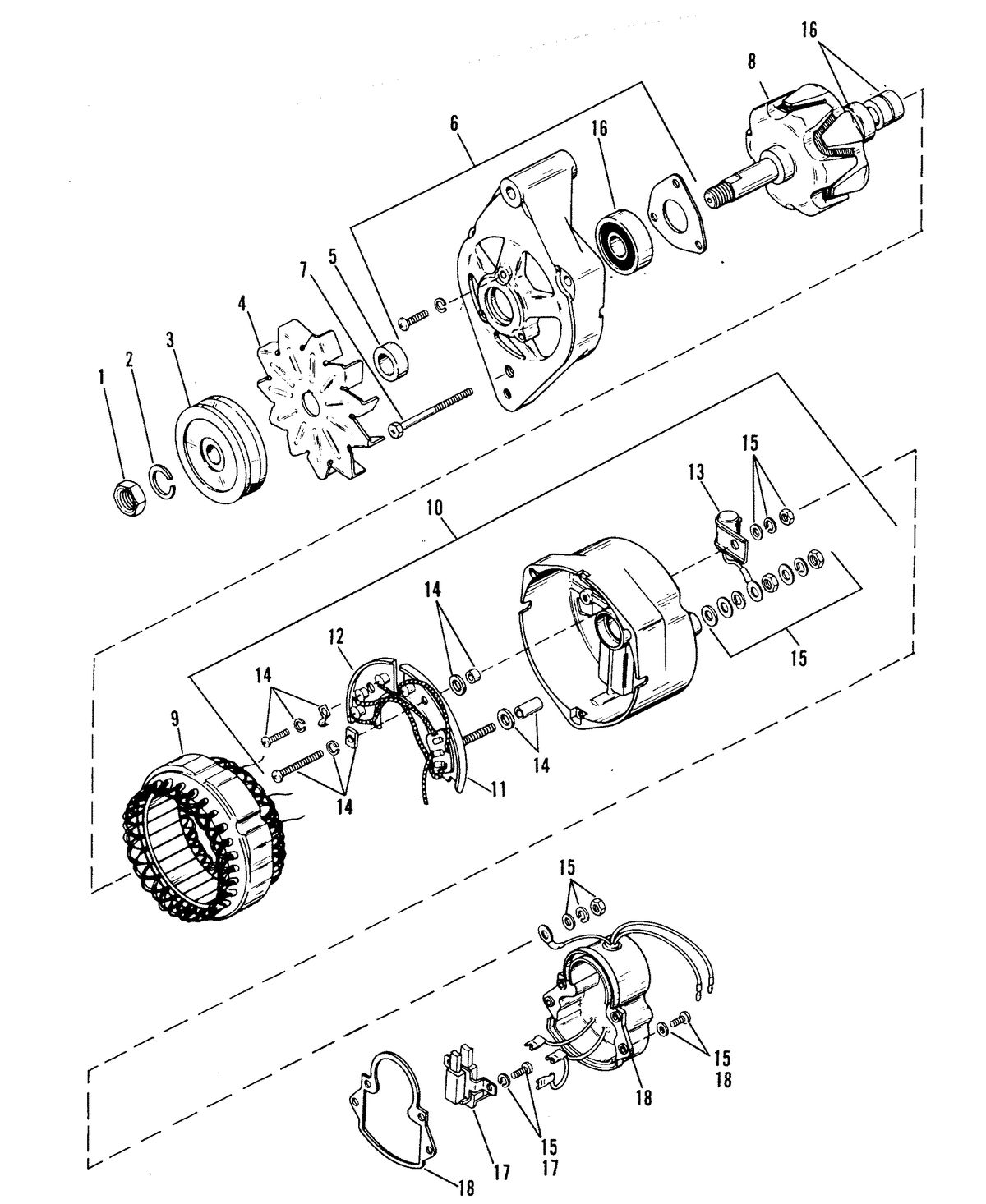

MERCRUISER - 502 MAG. BRAVO GM 502 V-8 1990-1992 - ALTERNATOR (MANDO)

	Ref ID	Description	Price
	1	NUT (#11-809136) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 11-42768 Supersedes: 11-42768	NLA
	2	LOCKWASHER (#13-42769) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	3	PULLEY (#809134) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 42770 Supersedes: 42770	$15.76 ~~$19.70~~
	4	FAN (#42771) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	5	SPACER (#23-42772) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	6	FRONT BRACKET (#42774) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	7	BOLT (#10-42773) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
	8	ROTOR (INCLUDES BEARINGS) (#42775) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	9	STATOR (#42776) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	10	REAR BRACKET (#42777) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	11	HEAT SINK (+) (#42778) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	12	HEAT SINK (-) (#42779) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	13	CONDESER (#42780) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	14	HARDWARE KIT (INTERNAL) (#42783) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	15	HARDWARE KIT (EXTERNAL) (#42782) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	16	BEARING KIT (#42781) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	17	BRUSH HOLDER KIT (INCL. SPRINGS & BRUSHES) (#42784) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	18	REGULATOR KIT (#42785) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.98 ~~$19.98~~

MERCRUISER 502 MAGNUM BRAVO ENGINE ALTERNATOR (MANDO)

MERCRUISER 502 MAGNUM BRAVO ENGINE ALTERNATOR (MANDO)

This assembly is found in these models:

MERCRUISER > 502 MAG. BRAVO GM 502 V-8 1990-1992
