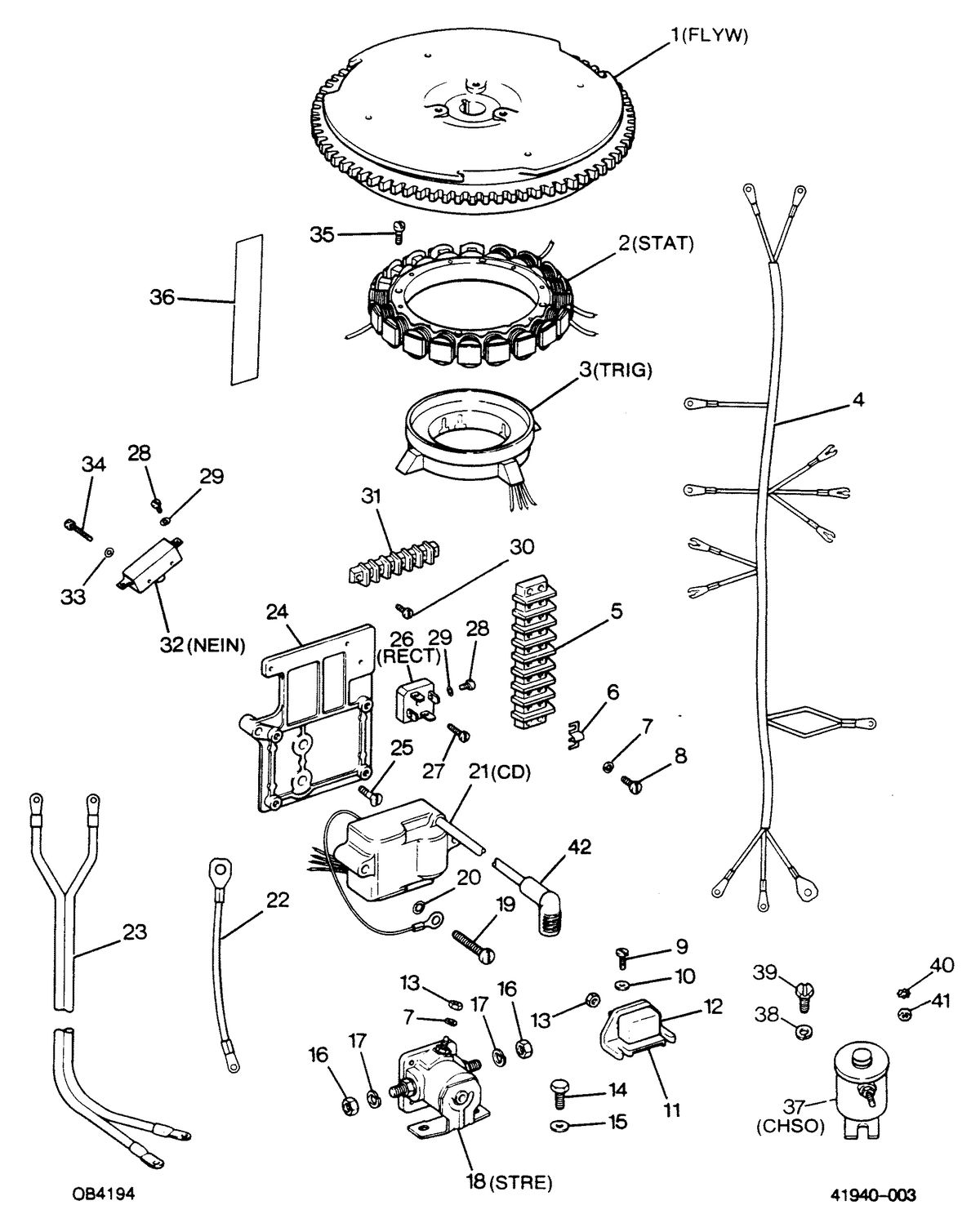

FORCE - 50 H.P. (1988) - ALTERNATOR AND ELECTRICAL COMPONENTS

Ref ID	Description	Price
1	FLYWHEEL (#FA658097) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	STATOR ASSEMBLY (#300-888793) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 300-F658095, 300-F694095-2, F694095, F694095-1, 300-F722095, 300-F663095-4, F663095-3, F663095-2, F663095-1, F663095, F653095, 300-F695095-1, F695095 Supersedes: 300-F658095, 300-F694095-2, F694095, F694095-1, 300-F722095, 300-F663095-4, F663095-3, F663095-2, F663095-1, F663095, F653095, 300-F695095-1, F695095	$609.89 ~~$631.36~~
3	TRIGGER ASSEMBLY (#300-888800) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 300-F658029 Supersedes: 300-F658029	NLA
4	ENGINE WIRE HARNESS (#84-817975A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	TERMINAL BLOCK (#FA616497) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 86-820014, 86-F616497 Supersedes: 86-820014, 86-F616497	NLA
6	TERMINAL JUMPER CLIP (#54-F307317) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F307317-1, F289683, F307717 Supersedes: F307317-1, F289683, F307717	NLA
7	LOCKWASHER, #10 (#13-26996) Qty Required For Repair: 2 Minimum Order Qty: 15 Qty Required For Repair: 2 Minimum Order Qty: 15	$0.96 ~~$1.20~~
8	SCREW, #10 - 24 X 5/8 (#10-F1974) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
9	SCREW, #10 - 24 X 9/16 (#10-852453) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 10-F1733 Qty Required For Repair: 2 Supersedes: 10-F1733	$1.12 ~~$1.40~~
10	FLATWASHER (#12-89302) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.36 ~~$1.70~~
11	BRACKET (#F91446-2) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 816516, F91446, F91446-1 Supersedes: 816516, F91446, F91446-1	NLA
12	CIRCUIT BREAKER (#88-F510460) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F510640, F91460-2, F91460-1, F91460 Supersedes: F510640, F91460-2, F91460-1, F91460	NLA
13	NUT, #10 - 32 (#11-68219) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$2.32 ~~$2.90~~
14	SCREW, 1/4 - 20 X 3/4 (#10-49668) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.88 ~~$1.10~~
15	FLATWASHER (#12-8M0214930) Qty Required For Repair: 1	$0.80 ~~$1.00~~
16	NUT, 5/16 - 24 HEX (#11-28770) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$2.80 ~~$3.50~~
17	LOCKWASHER, 5/16 (#13-53166) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.36 ~~$1.70~~
18	STARTER RELAY (#803822T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F177917, F84917-1 Supersedes: F177917, F84917-1	NLA
19	SCREW, 1/4 X 1-3/4 PN. HD. (#10-F525064) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
20	WASHER, INTERNAL STAR (#13-78968) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$1.36 ~~$1.70~~
21	C-D, COIL ASSEMBLY (#300-888790) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 300-F658475 Qty Required For Repair: 2 Supersedes: 300-F658475	NLA
22	WIRE, CIRCUIT BREAKER (#84-F307683) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	CABLE, BATTERY (BAYLINER MODELS) (#84-F629896) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	CABLE, BATTERY (FORCE MODELS) (#84-8M0210761) Qty Required For Repair: 1	$113.92 ~~$124.92~~
24	BRACKET, C-D MOUNTING (#F658501) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	SCREW, 5/16 - 18 X 1 HEX (#10-F1823) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F1185, F1244, F1011, F1484, F2281, FI3000066, FI3000713 Qty Required For Repair: 2 Supersedes: F1185, F1244, F1011, F1484, F2281, FI3000066, FI3000713	NLA
26	RECTIFIER (#F684450) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	SCREW, #8 - 32 X 3/4 SL. PA. (#10-F1303) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F1450 Supersedes: F1450	NLA
28	SCREW, #6 - 32 X 1/4 SL. RD. HD. (#10-69080) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
29	WASHER, #6 INT. TOOTH, LOCK (#13-F1704) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
30	SCREW, #8 - 32 X 1/2 SL. PA. (#10-F1552) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F1521 Qty Required For Repair: 2 Supersedes: F1521	NLA
31	BLOCK, TERMINAL (#86-F722497) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F658497, F685497 Supersedes: F658497, F685497	NLA
32	SWITCH, NEUTRAL INTERLOCK (#87-F84449) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	FLATWASHER (#12-27882) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.12 ~~$1.16~~
34	SCREW, #6 - 32 X 7/8 (#10-F2016) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F1654 Qty Required For Repair: 2 Supersedes: F1654	NLA
35	SCREW, #12 - 24 X 1 HEX HD. (#10-F2200) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: F1550 Qty Required For Repair: 4 Supersedes: F1550	NLA
36	DECAL, WIRING (#37-8179101) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	CHOKE SOLENOID (#89-817760A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	SPRING LOCKWASHER (#13-26992) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$0.96 ~~$1.20~~
39	HEX HD. SCREW, 1/4 - 20 X 5/8 (#10-28635) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.36 ~~$1.70~~
40	HEX NUT, 8 - 32 (#11-F1647) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F1338, F14008 Supersedes: F1338, F14008	NLA
41	SPRING LOCKWASHER (#13-F8056) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F14009 Supersedes: F14009	NLA
42	SPARKIE KIT (#85-63709A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.32 ~~$7.90~~

FORCE FORCE 1988 50 H.P. "C" MODELS ALTERNATOR AND ELECTRICAL COMPONENTS

This assembly is found in these models:

FORCE > 50 H.P. (1988)
