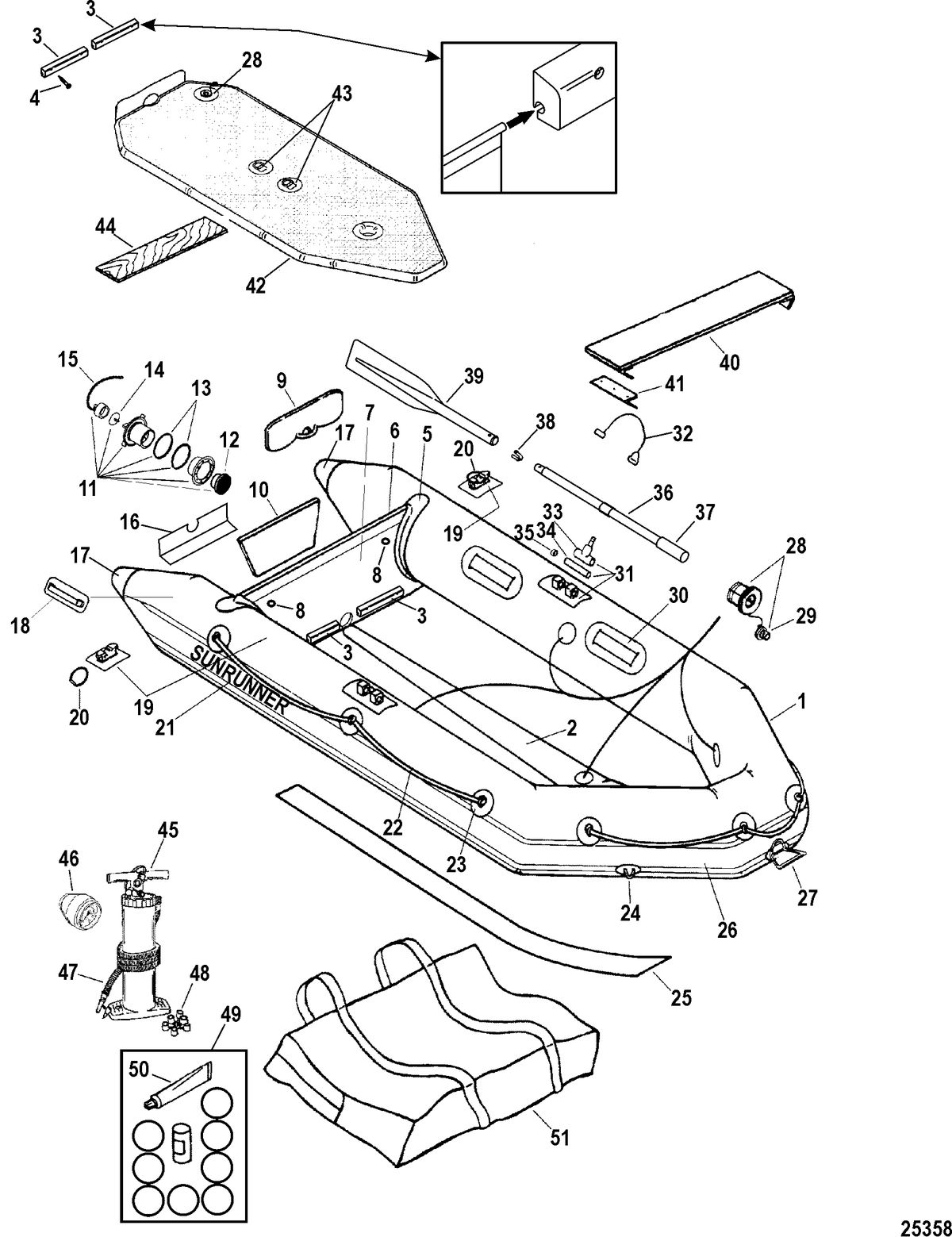

INFLATABLES - Sunrunner PVC Soft Bottom AUST 2005-2007 - Air Deck Models(White 2005-2006 Models)

Ref ID	Description	Price
1	SKIN ASSEMBLY, PVC (8 Feet 9 Inches) (#62-898228002) Comment: - 270 Model Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-898228001 - 270 Model Supersedes: 62-898228001	NLA
2	KEEL, PVC (L175.5 cm) Light Gray (#62-880967002) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-880967 1 Supersedes: 62-880967 1	$115.63 ~~$108.68~~
3	RETAINER, (L20 cm) Light Gray (#62-896285001) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-896285 Qty Required For Repair: 2 Supersedes: 62-896285	NLA
4	ORDER PART LOCAL, Screw (M8 x 38 Stainless Steel Flat Head) (#ORDLOCAL) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
5	HOLDER, Transom - PVC White (T24 mm) (#62-8097822) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$20.42 ~~$18.20~~
6	CAP, Transom Cover (W24 mm x 90 cm) PVC Dark Gray (#62-8554034) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	TRANSOM ASSEMBLY, ABS Coated - Dark Gray (T24 mm) (#62-827686T05) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	TOWING HOLE SET, (13 mm x T24 mm) Stainless Steel (#62-898172) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
9	PAD, Transom - Aluminum (#62-811317) Qty Required For Repair: 1 Minimum Order Qty: 1	$33.97 ~~$30.33~~
10	PLATE, Transom - Dark Gray Wood (#62-8113363) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	PLUG ASSEMBLY, Drain - Light Gray (24 mm) (#62-830222A3) Qty Required For Repair: 1 Minimum Order Qty: 1	$20.96 ~~$18.70~~
12	FILTER/SCREEN, Drain Plug - Light Gray (#62-881829) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.53 ~~$2.25~~
13	GASKET, Drain Plug (#27-830221) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
14	CHECK VALVE, Drain Plug (#62-824409) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.30 ~~$1.16~~
15	CAP/STRING AND CLIP, Drain Plug - Light Gray (#62-8097801) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.04 ~~$9.86~~
16	PROTECTOR, Transom Bottom - PVC Light Gray (#62-899878) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	END CONE CAP, PVC - White With Flat End (120 mm x H96 mm) (#62-899877005) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	HANDLE/LIFTING, Side/Bow - PVC Dark Gray (#62-8590071) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$7.62 ~~$6.82~~
19	RETAINER, Oar And Rope Holder - PVC Dark Gray (#62-859006003) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
20	BUNGEE STRAP, White (#62-878052) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.53 ~~$0.46~~
21	LOGO, Side - Sunrunner - Navy Blue/White (#62-898228) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
22	ROPE, (12.00 Feet) Navy Blue (#62-8097782) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.66 ~~$13.99~~
23	HOLDER, Rope - PVC Dark Gray (#62-8590081) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
24	D RING, Large - Stainless Steel On White PVC Fabric (#62-8113092) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$20.91 ~~$18.66~~
25	RUBSTRAKE, Bottom - PVC Light Gray (#62-8244121) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	RUBSTRAKE, Side - PVC - Two Navy Blue Lines On Dark Gray (#62-8085759) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$123.56 ~~$116.12~~
27	HANDLE/LIFTING, Bow - Dark Gray Nylon On White PVC Fabric (#62-809777) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896464 Supersedes: 62-896464	NLA
28	VALVE ASSEMBLY, Air - 8 Slots - Gray (#62-809887) Qty Required For Repair: 5 Minimum Order Qty: 1 Qty Required For Repair: 5	NLA
29	CAP ASSEMBLY, Air Valve - Gray (#62-8096961) Qty Required For Repair: 5 Minimum Order Qty: 1 Qty Required For Repair: 5	NLA
30	WEBBING, Seat - Dark Gray Web/PVC White Fabric (#62-8187014) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$13.02 ~~$11.64~~
31	OARLOCK ASSEMBLY, PVC Dark Gray (#62-8113112) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
32	CAP/STRING AND CLIP, Oarlock - Dark Gray (#62-8M0054771) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-811329 2 Qty Required For Repair: 2 Supersedes: 62-811329 2	$5.25 ~~$4.68~~
33	HOLDER, Oarlock - PVC Dark Gray (#62-8244102) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.80 ~~$9.65~~
34	PIN, Oarlock (#62-824411) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.79 ~~$1.62~~
35	CAP, Oarlock - PVC Dark Gray (#62-8097792) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.78 ~~$1.59~~
36	OAR HANDLE ASSEMBLY, (110 cm) Dark Gray - Center Hole Location (#62-885160) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$29.36 ~~$30.59~~
37	GRIP, Oar Handle - Dark Gray (#62-8118362) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$5.26 ~~$4.70~~
38	CLIP, Oar Handle (#62-824417) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.59 ~~$2.31~~
39	OAR BLADE, Dark Gray - M Logo (#62-885157) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$23.98 ~~$21.41~~
40	SEAT ASSEMBLY, Wood - Dark Gray (L85 cm x W20 cm x T22 mm) (#62-811307T04) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-811307 4 Supersedes: 62-811307 4	$73.18 ~~$65.36~~
41	BRACKET, Seat - Light Gray Plastic (#62-8113131) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.40 ~~$9.30~~
42	AIR DECK ASSEMBLY, PVC (L184.5 cm) Light Gray (#62-896282A06) Comment: - 270 Model Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896282A02, 62-896282A04 - 270 Model Supersedes: 62-896282A02, 62-896282A04	$541.22 ~~$560.27~~
43	D RING, Small - Stainless Steel On Light Gray PVC Fabric (#62-811310003) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-811310 1 Qty Required For Repair: 2 Supersedes: 62-811310 1	$5.73 ~~$5.13~~
44	THRUSTBOARD, Wood (83 cm x 20 cm x 12 mm) Dark Gray (#62-852875T12) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-852875 4 Supersedes: 62-852875 4	$41.79 ~~$37.34~~
45	PUMP ASSEMBLY, Air - Double Action (#62-889345Q01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02	$56.69 ~~$50.61~~
46	GAUGE, Air Pump (#62-889346) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.98 ~~$21.42~~
47	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
48	ADAPTOR SET, Air Pump Hose (#62-889347) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889347001 Supersedes: 62-889347001	$16.56 ~~$17.25~~
49	REPAIR KIT, PVC - Light Gray/White .08 Fabric (#62-885161002) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-885161, 92-811314 3 Supersedes: 62-885161, 92-811314 3	$21.97 ~~$19.61~~
-	REMOVER/INSTALLER TOOL, Air Valve - Plastic (#62-896317) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.73 ~~$3.33~~
50	CEMENT, PVC (30 ml) (#92-808648) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.81 ~~$6.97~~
51	BAG, Storage/Carrying - Flap Style - M Logo (#62-811327T2) Qty Required For Repair: 1 Minimum Order Qty: 1	$136.59 ~~$128.37~~

INFLATABLES SUNRUNNER PVC SOFT BOTTOM Air Deck Models(White 2005-2006 Models)
