MC 5 Liter Ford V8 Block Only System P/N MFH-5057 (#MFH-5057)

MFH-5057 - Complete Kit

CONVERSION KIT FITS

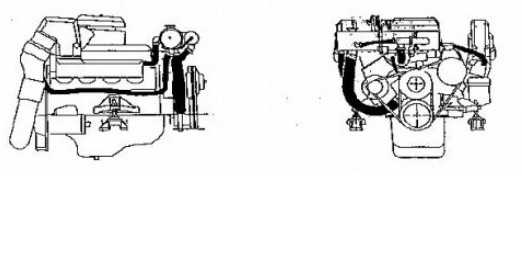

Ford based small block V/8 engines 302-351 CID, inboard and sterndrive, excluding V-drives. Especially designed for OMC Cobra engines but will fit other Ford conversions provided that space exists on front top of engine. See above illustrations. Heat exchanger is 4 1/8" x 19.5" long and fits within overall length width and height of most engine conversions. Plastic expansion tank mounts separately on vertical surface next to engine.

COOLING SYSTEM TYPE (Block only)

Engine block on fresh water system. Exhaust manifolds remain on raw water system. System utilizes a heat exchanger with a built in, full flow, bypass control thermostat ensuring optimal jacket water flow under all operating conditions.

CONVERSION KIT

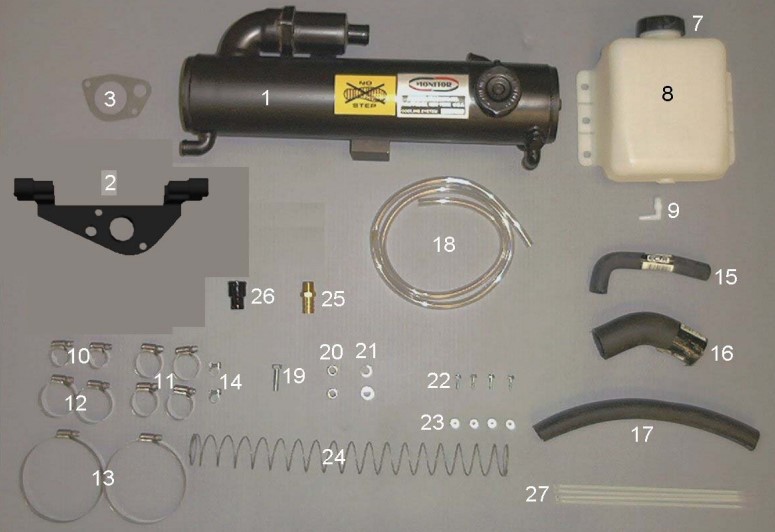

Kit includes heat exchanger, heavy-duty translucent plastic expansion tank plus all other components necessary to complete conversion. Some components from engine are reused. Heat Exchanger and Brackets are finished black. Hose clamps all stainless steel.

HEAT EXCHANGER

Shell and tube type. Redesigned to achieve higher cooling capacity. All copper alloy construction made to the highest industry standards. Heavy-duty dual demountable clean out end covers. Zinc anode protection.

COOLING SYSTEM CAPACITY

Will maintain engine temperature in the 160-170oF range using 160oF thermostat included in kit. System has cooling capacity safety margin higher than industry standards.

HEATER SYSTEM HOOKUP

Heaters such as galley water heaters and cabin heaters are easily connected to the system by utilizing the cooling system bypass connections. INSTALLATION TIME Very easy installation of approximately one hour assuming new engine and normal accessibility. Allow additional time for filling and testing. Installation skills are not beyond those of most do-it-yourself boat owners. Complete illustrated installation instructions are included in kit. Ordinary hand tools used.

MFH-5057 System Specifications (opens in a new window)

MFH-5057 Kit Installation Instructions (opens in a new window)

2 YEAR WARRANTY

For complete details see Limited Warranty for Fresh Water Cooling Kits document enclosed with your kit and located on policies page of our website.

PRICE

Trade and volume discounts available. Buy through your dealer or direct using Visa, Mastercard, Am Express, UPS COD, or money order.
