FUEL PUMP AND FUEL LINES(TRIANGLE FUEL PUMP)

Ref ID	Description	Price
1	PUMP ASSEMBLY, Fuel (#73434A5) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	CHECK VALVE ASSEMBLY (#21-8M0084276) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 21-30430A13 Supersedes: 21-30430A13	$32.22 ~~$33.18~~
3	DIAPHRAGM ASSEMBLY (#55278A5) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.99 ~~$9.40~~
4	NOT SOLD SEPARATE, GASKET-CHECK VALVE (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
5	NOT SOLD SEPARATE, GASKET-FUEL PUMP (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
6	SPRING (#24-86207) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.25 ~~$5.00~~
7	CAP (#86252) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.49 ~~$4.10~~
8	RETAINER, CHECK VALVE (#23004) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	SCREW, (#6-32 x .380) (#10-43725) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.45 ~~$1.70~~
10	FILTER, Fuel (#35-73532) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.06 ~~$3.60~~
11	O-RING, (1.237 x .103), COVER TO FUEL PUMP (#25-35480) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.64 ~~$3.10~~
12	COVER, FUEL FILTER (#35-14805A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	SCREW, (#10-32 x .580), COVER TO FUEL PUMP (#10-37370) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.02 ~~$1.20~~
14	GASKET, COVER SCREW (#27-25848) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.21 ~~$2.60~~
15	SCREW (#10-70939) Comment: (1-7/8") Qty Required For Repair: 1 Minimum Order Qty: 1 (1-7/8")	NLA
15	SCREW, (.250-20 x 1.375) (#10-69067) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$2.64 ~~$3.10~~
16	FITTING, FUEL PUMP (#22-64705) Comment: W/O INLINE FILTER Qty Required For Repair: 1 Minimum Order Qty: 1 W/O INLINE FILTER	$9.52 ~~$11.20~~
17	LINE, (57.00 Inches Bulk), TEE TO FUEL PUMP(11") (#32-8M0108355) Comment: W/O INLINE FILTER Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 W/O INLINE FILTER Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821	$43.14 ~~$50.33~~
18	TEE, Plastic, FUEL LINE (#22-73318) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.42 ~~$5.20~~
19	LINE, (57.00 Inches Bulk) (CUT TO 3 INCHES) (#32-8M0108355) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 Qty Required For Repair: 2 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821	$43.14 ~~$50.33~~
20	CLAMP, FUEL LINE (#54-816311T) Qty Required For Repair: 8 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 Qty Required For Repair: 8 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275	$0.51 ~~$0.60~~
21	LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL PUMP (15") (#32-8M0108355) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821	$43.14 ~~$50.33~~
22	FITTING, Barb (.250-18), FUEL LINE TO ADAPTOR (#22-63187) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$13.01 ~~$15.30~~
23	ADAPTOR, CHECK UNIT (#30186) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	STEM, CHECK UNIT ADAPTOR (#30187) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	O-RING, ADAPTOR STEM (#25-16524) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$1.19 ~~$1.40~~
26	SPRING, ADAPTOR STEM (#24-30189) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.74 ~~$4.40~~
27	WASHER, ADAPTOR (#30188) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$2.04 ~~$2.40~~
28	SCREW, (.250-28 x 1.380) (#10-36154) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
29	NUT, ADAPTOR SCREW (#11-36069) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$3.74 ~~$4.40~~
30	FITTING (90 DEG. ) (#22-19688) Comment: WITH INLINE FILTER Qty Required For Repair: 1 Minimum Order Qty: 1 WITH INLINE FILTER	NLA
31	LINE, (57.00 Inches Bulk) (#32-8M0108355) Comment: WITH INLINE FILTER Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 WITH INLINE FILTER Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821	$43.14 ~~$50.33~~
32	FILTER, Fuel (#35-816296Q03) Comment: WITH INLINE FILTER Qty Required For Repair: 1 Minimum Order Qty: 3 Supersedes: 35-816296Q, 35-816296, 35-16494 WITH INLINE FILTER Minimum Order Qty: 3 Supersedes: 35-816296Q, 35-816296, 35-16494	$8.33 ~~$9.80~~
-	GASKET SET (#27-73645A87) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

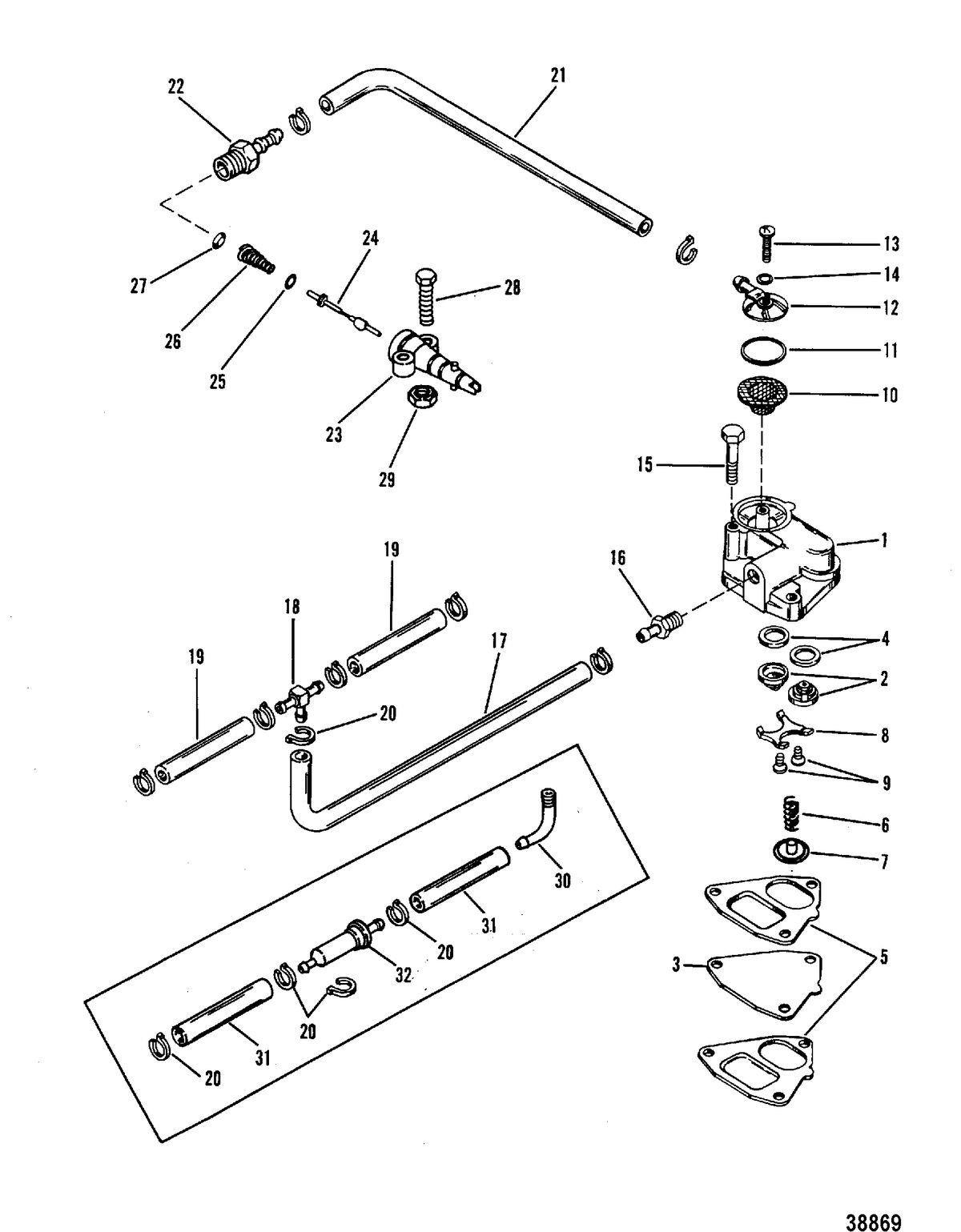

To zoom in, move your mouse over the diagram.

MERCURY/MARINER 75 HP FUEL PUMP AND FUEL LINES(TRIANGLE FUEL PUMP)

This assembly is found in these models:

MARINER > 75 (4 CYL.)
