EXHAUST PLATE

Ref ID	Description	Price
1	PLATE ASSEMBLY, EXHAUST (#42954A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	PIN, Dowel (#17-23784) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$3.04 ~~$3.50~~
3	SEAL, LOWER COWL (#42939) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	MOUNT, (3.25 Inch), UPPER (#42949T1) Comment: (LONG) Qty Required For Repair: 1 Minimum Order Qty: 1 (LONG)	NLA
4	MOUNT, (3.25 Inch), UPPER (#443441) Comment: (X-LONG) Qty Required For Repair: 1 Minimum Order Qty: 1 (X-LONG)	NLA
5	SCREW, UPPER MOUNT TO EXHAUST PLATE (#10-82155050) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$4.00 ~~$4.60~~
6	BOLT, (M12 x 175), UPPER MOUNT (#10-898487) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 10-42974 Qty Required For Repair: 2 Supersedes: 10-42974	$8.64 ~~$9.80~~
6	SCREW, (M12 x 160), UPPER MOUNT (#10-12515) Comment: (HANDLE MODELS) Qty Required For Repair: 2 Minimum Order Qty: 1 (HANDLE MODELS) Qty Required For Repair: 2	NLA
7	WASHER, UPPER MOUNT SCREW (#12-32834) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$3.12 ~~$3.00~~
8	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, UPPER MOUNT SCREW (#12-28421) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$2.32 ~~$2.60~~
9	NUT, (M12), UPPER MOUNT SCREW (#11-896963) Qty Required For Repair: 2 Minimum Order Qty: 6 Supersedes: 11-859129, 11-90099 Qty Required For Repair: 2 Minimum Order Qty: 6 Supersedes: 11-859129, 11-90099	$3.20 ~~$3.60~~
10	ELBOW, EXHAUSE PLATE (#22-996642) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.52 ~~$1.90~~
11	SCREW, (M8 x 1.25 x 35) , EXHAUSE PLATE (#10-82127335) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.68 ~~$1.90~~
11	SCREW, (M8 x 70), EXHAUSE PLATE (#10-4010770) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.20 ~~$3.70~~
12	GASKET, EXHAUST PLATE (#27-430086) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.76 ~~$13.60~~
13	TUBE, Exhaust (#42966T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	SCREW, (M8 x 35), EXHAUST TUBE TO PLATE (#10-4010735) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$1.68 ~~$1.90~~
15	SEAL, EXHAUST TUBE (#8M0039075) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 42962 Supersedes: 42962	$13.44 ~~$12.92~~
16	TUBE, Water (#32-430141) Comment: (LONG) Qty Required For Repair: 1 Minimum Order Qty: 1 (LONG)	NLA
16	TUBE, Water (#32-430142) Comment: (X-LONG) Qty Required For Repair: 1 Minimum Order Qty: 1 (X-LONG)	NLA
17	CLAMP, WATER TUBE SEAL (#99019) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.16 ~~$2.40~~
18	SEAL, Water Tube (UPPER) (#42941001) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.12 ~~$3.60~~
19	SCREW, (M8 x 50), CLAMP (#10-4010750) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.28 ~~$3.80~~
20	GROMMET, WATER TUBE (#25-93221002) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.24 ~~$2.50~~
21	BRACKET ASSEMBLY, COWL (LOWER) (#42953A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	SEAL, LOWER COWL BRACKET (#43405) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	SCREW, LOWER COWL BRACKET (#10-81742755) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	$2.11 ~~$2.15~~
24	BUSHING, SHIFT SHAFT (#23-48237) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.62 ~~$1.63~~
25	SHIFT SHAFT ASSEMBLY (UPPER) (#79932A9) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	BUSHING, SHIFT SHAFT (#23-42994) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.92 ~~$2.10~~
27	SHIFT LINK (#42912A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	WAVE WASHER, SHIFT SHAFT (#13-29720) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.86 ~~$0.86~~
29	WASHER, (M4 x 20), SHIFT SHAFT (#12-24664) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.88 ~~$1.10~~
30	NUT, (M6), SHIFT SHAFT (#11-401386) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.88 ~~$3.30~~
31	SPACER, SHIFT SHAFT (#23-813745) Comment: (LONG) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 23-43041 (LONG) Supersedes: 23-43041	$4.48 ~~$5.20~~
31	SPACER, SHIFT SHAFT (#23-11289) Comment: (X-LONG) Qty Required For Repair: 1 Minimum Order Qty: 1 (X-LONG)	$5.52 ~~$6.30~~
32	COUPLING, SHIFT SHAFT ) (#43053) Comment: (NON POWER TRIM Qty Required For Repair: 1 Minimum Order Qty: 1 (NON POWER TRIM	$25.76 ~~$26.83~~
33	COUPLING, SHIFT SHAFT (#43585) Comment: (POWER TRIM) Qty Required For Repair: 1 Minimum Order Qty: 1 (POWER TRIM)	$23.04 ~~$22.08~~
-	GASKET SET (#27-43004A99) Qty Required For Repair: Minimum Order Qty: 1	$108.60 ~~$133.50~~

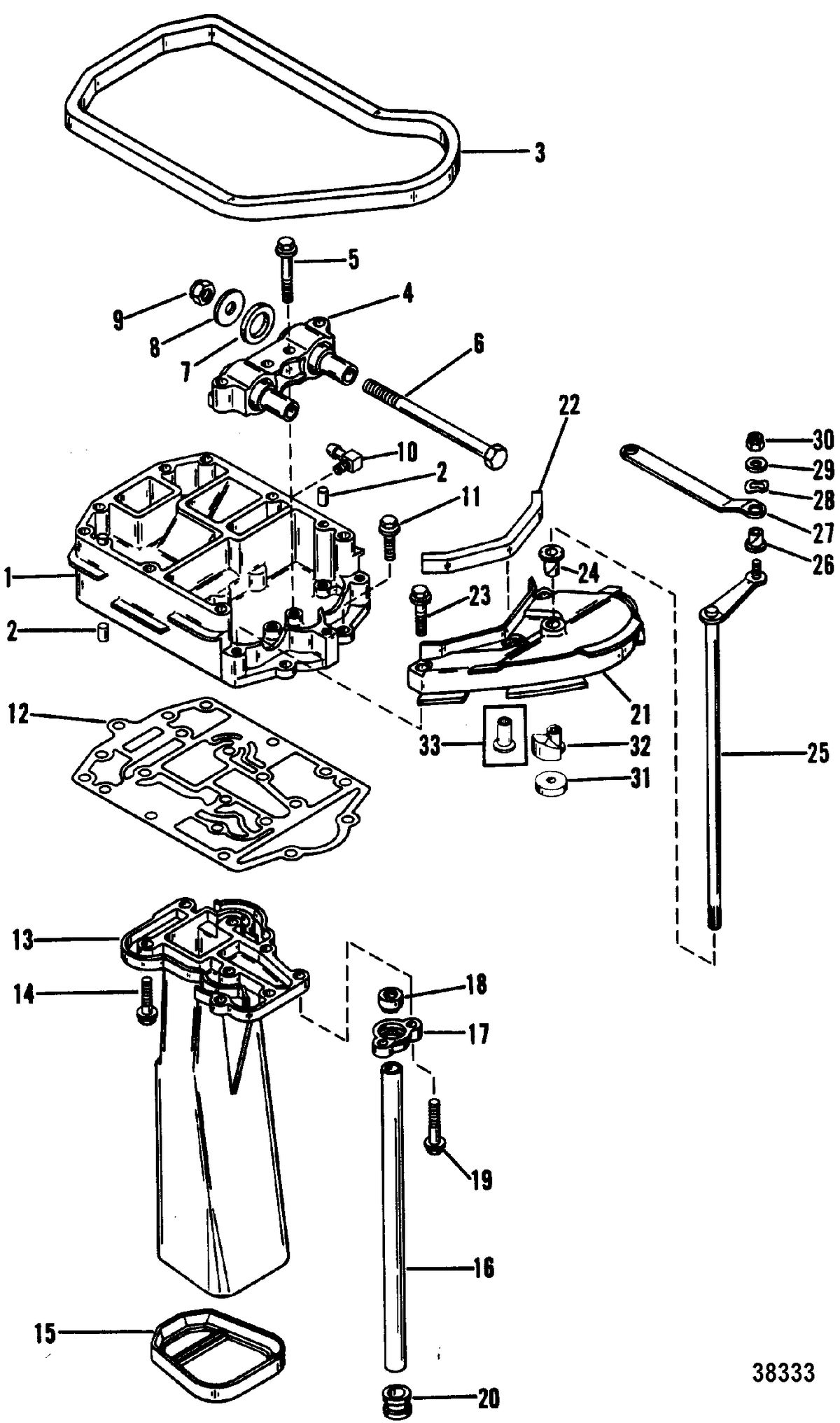

To zoom in, move your mouse over the diagram.

MERCURY/MARINER 70/75/80/90 HP (3 CYLINDER) EXHAUST PLATE

Mercury Marine Parts Catalog

EXHAUST PLATE

This assembly is found in these models:
