CARBURETOR CHOKE LINKAGE

	Ref ID	Description	Price
	1	THROTTLE LEVER ASSEMBLY (#59000) Qty Required For Repair: 1,1,1,1,1 Minimum Order Qty: 1	NLA
	2	SCREW, THROTTLE LEVER TO CARBURETOR (#10-20597) Qty Required For Repair: 1,1,1,1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.60 ~~$0.70~~
	3	SHUTTER, CHOKE-CARBURETOR (#31865) Qty Required For Repair: 1,,,, Minimum Order Qty: 1	NLA
	3	SHUTTER, CHOKE-CARBURETOR (#32374) Qty Required For Repair: ,1,1,1,1 Minimum Order Qty: 1	NLA
	4	SPACER, CHOKE SHUTTER FASTENING SCREW (#23-31313) Qty Required For Repair: 1,1,1,1,1 Minimum Order Qty: 1	NLA
	5	SCREW, CHOKE SHUTTER TO CARBURETOR (#10-31919) Qty Required For Repair: 1,1,1,1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
	6	WASHER, WAVE-CHOKE SHUTTER SCREW (#13-34632) Qty Required For Repair: ,1,1,1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.62 ~~$1.80~~
	7	LEVER ASSEMBLY, CHOKE SHUTTER (#31920A2) Qty Required For Repair: 1,1,1,1,1 Minimum Order Qty: 1	NLA
	8	SHAFT, CHOKE LEVER TO CHOKE KNOB (#30946) Qty Required For Repair: 1,1,1,1,1 Minimum Order Qty: 1	NLA
	9	SPRING, CHOKE SHUTTER TO LEVER (#24-31204) Qty Required For Repair: 1,,,, Minimum Order Qty: 1	NLA
	9A	SPRINGK CHOKE SHUTTER TO LEVER (#24-32283) Qty Required For Repair: ,1,1,1,1 Minimum Order Qty: 1	NLA
	10	SPRING, TENSION-CHOKE KNOB (#24-30947) Qty Required For Repair: 1,1,1,1,1 Minimum Order Qty: 1	NLA
	11	KNOB, CHOKE (#30822) Qty Required For Repair: 1,1,1,1,1 Minimum Order Qty: 1	NLA
	12	PIN, ROLL-CHOKE KNOB TO SHAFT (#17-22896) Qty Required For Repair: 1,1,1,1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA

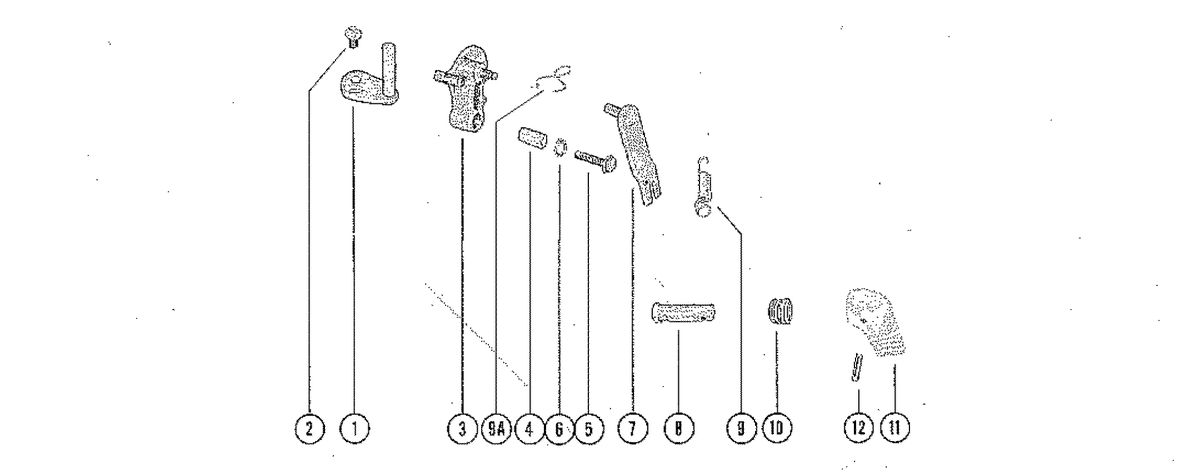

To zoom in, move your mouse over the diagram.

MERCURY MERC 110 CARBURETOR CHOKE LINKAGE

This assembly is found in these models:

MERCURY > 110
