DISTRIBUTOR AND IGNITION COMPONENTS is a part of the following model(s):
260 (2 BBL.) GM 350 V-8 1987 5.7L (2 BBL.) GM 350 V-8 1988-1995
350 MAG. ALPHA GM 350 V-8 1987-1995 200 (2 BBL.) GM 305 V-8 1987
5.0L (2 BBL.) GM 305 V-8 1988-1995 230 (4 BBL.) GM 305 V-8 1987
5.0LX (4 BBL.) GM 305 V-8 1988-1995

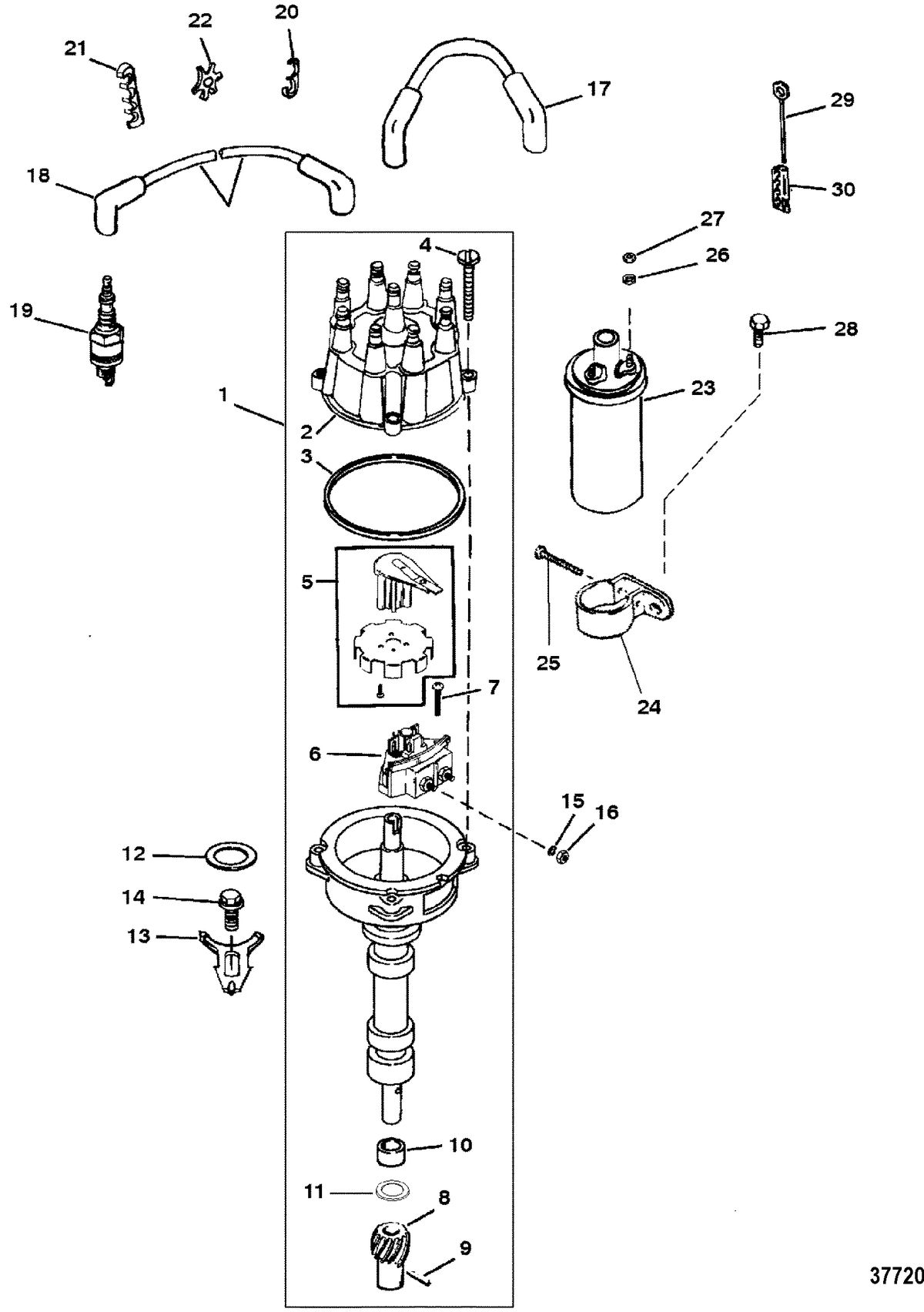

View Diagram at Bottom of Page

Ref ID Part Number Description Comments Superceded From List Price Our Price Qty Used Order Quantity
1 805185A36 DISTRIBUTOR ASSY (#805185A36) 805185A43, 805185A26, 90747A27, 90747A25, 90747A21, 90747A 3 $303.42 $242.74 1
1 805185A36 DISTRIBUTOR ASSY (#805185A36) 805185A43, 805185A26, 90747A27, 90747A25, 90747A21, 90747A 3 $303.42 $242.74 1
2 805759T 1 CAP ASSY-DIST (#805759T 1) 805759A 5, 805759T 2, 805759A 2, 16457A 4, 43557A 1 $46.90 $42.21 1
3 27-805760 GASKET (#27-805760) 27-98242 1, 27-98242 $3.14 $2.83 1
4 10-90926 SCREW @5 (#10-90926) $0.44 $0.40 4
5 13524T 1 ROTOR ASSY (#13524T 1) 13524A 1, 13524A 5, 13524A 3 $11.00 $9.90 1
11 87-892150Q02 SENSOR ASSY-IGN (#87-892150Q02) (W/ NUT CONNECTORS 87-892150A02, 87-861780A 2, 87-861780Q 4, 87-861780A 4, 87-91019A 3, 87-91019A 6 $60.05 $52.54 1
11 87-892150Q02 SENSOR ASSY-IGN (#87-892150Q02) (W/ BULLET CONNECTORS) 87-892150A02, 87-861780A 2, 87-861780Q 4, 87-861780A 4, 87-91019A 3, 87-91019A 6 $60.05 $52.54 1
12 10-66686 SCREW @2 (#10-66686) (1 IN.) $0.99 $0.89 1
12 10-72202 SCREW (#10-72202) (1-1/4 IN.) $1.75 $1.58 1
13 43-818807 GEAR-DISTRIBUTOR (#43-818807) 43-813776 1, 43-47619 1, 43-47619 $50.26 $43.98 1
14 17-47617 PIN-ROLL (#17-47617) $2.25 $2.02 1
15 23-90915 BATTERY TRAY(#23-90915) $4.70 $4.23 2
15A 12-90931 WASHER (#12-90931) $0.69 $0.62 1
16 27-34486 3 Gasket - Distributor (#27-34486 3) 27-34486 1, 27-34486, 27-52184, 27-34891 $1.46 $1.31 1
17 52185 CLAMP (#52185) 35369 $9.66 $8.69 1
18 10-806681 SCREW (#10-806681) $3.79 $3.41 1
19 13-26996 LOCKWASHER @15 (#13-26996) 13-33027, 13-46627, 54-33271, 13-33253 $0.58 $0.52 2
20 11-68219 NUT @5 (#11-68219) 11-20645, 11-38026, 11-33252, 11-33277, 11-35197 $1.24 $1.12 2
21 84-816761Q 4 WIRE KIT-IGNITION (#84-816761Q 4) 84-816761A 4, 84-813720A 4, 84-43376A 4 $69.30 $60.64 1
21 84-816761Q17 WIRE KIT-IGNITION (#84-816761Q17) 84-816761A17 $69.90 $61.16 1
22 85-63709A 1 BOOT KIT-BLK@10 (#85-63709A 1) 85-71006A 1, 47604A 1, 20119A 1, 20119 $3.21 $2.89 8
23 33-898264001 AC SPRK PLUG@8 (#33-898264001) 33-898264, 59571, 33-59571, 33-59571 $4.00 $3.60 8
24 54676 RETAINER (#54676) $2.46 $2.21 2
25 32783 RETAINER (#32783) $1.82 $1.64 2
26 32784 RETAINER (#32784) $2.37 $2.13 2
27 392-805570A 2 COIL KIT-IGNITION (#392-805570A 2) 392-7803A 4 $57.50 $50.31 1
28 77294T BRACKET (#77294T) 77294 $12.30 $11.07 1
28 65970T 1 Bracket - Power Steering Cooler (#65970T 1) 65970T, 76354, 65970 $5.94 $5.35 1
29 10-41408 SCREW (#10-41408) $1.43 $1.29 1
30 12-30164 WASHER @3 (#12-30164) 12-46101 $1.03 $0.93 2
31 13-26996 LOCKWASHER @15 (#13-26996) 13-33027, 13-46627, 54-33271, 13-33253 $0.58 $0.52 2
32 11-68219 NUT @5 (#11-68219) 11-20645, 11-38026, 11-33252, 11-33277, 11-35197 $1.24 $1.12 2
33 10-98261 SCREW (#10-98261) 10-27165 $0.56 $0.50 1
36 16-90096A 1 STUD KIT-SPECIAL (#16-90096A 1) NEW DESIGN $7.44 $6.70 2
37 54-72821 RETAINER-CABLE (#54-72821) NEW DESIGN $2.72 $2.45 2

- Indicates a part is included with the previous part in the list (based on Ref ID).
