Cylinder Head and Rocker Cover
is a part of the following model(s):
|
| 3.0L GM 181 I/L4 1 1998 |
3.0LX GM 181 I/L4 1996-1997 |

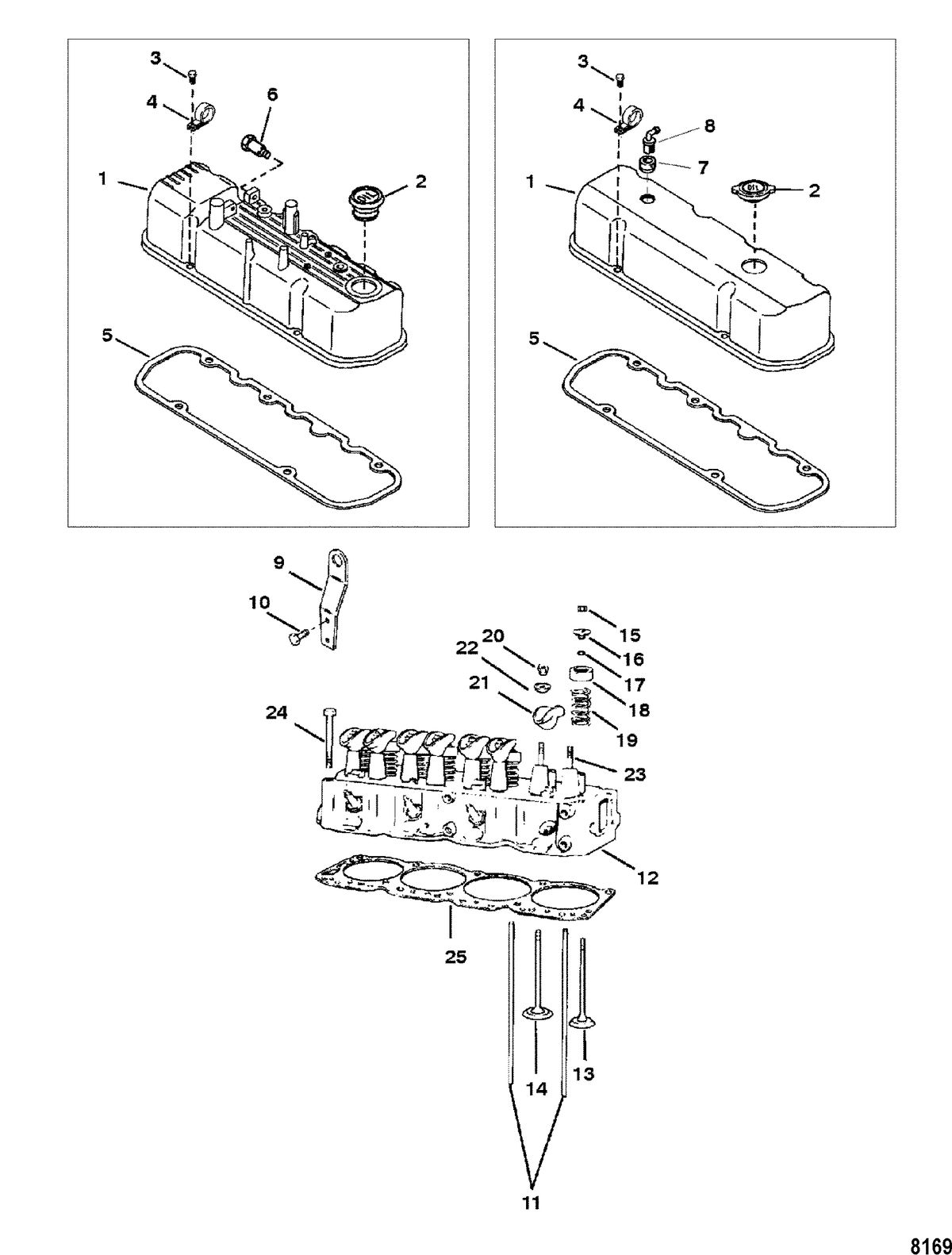

View Diagram at Bottom of Page
|
Ref ID |
Part Number
|
Description
|
Comments
|
Superceded From
|
List Price
|
Our Price
|
Qty Used
|
Order Quantity |
|
1
|
65635A16
|
ROCKER COVER (#65635A16)
|
(Cast Aluminum Cover) SN# 0K999999 & Below
|
65635A 8, 65635A 5, 65635
|
$161.85
|
NLA
|
1
|
|
 2
|
36-807152
|
CAP-OIL FILLER (#36-807152)
|
(Cast Aluminum Cover) SN# 0K999999 & Below
|
36-75336, 36-851039, 59965
|
$4.23
|
$3.81
|
1
|
|
|
3
|
10-65746
|
SCREW W/LW @2 (#10-65746)
|
(Cast Aluminun Cover) SN# 0K999999 & Below
|
10-98510, 10-35585
|
$0.56
|
$0.50
|
5
|
|
|
4
|
54-97224
|
J CLIP (#54-97224)
|
(Cast Aluminum Cover) SN# 0K999999 & Below
|
|
$4.55
|
$4.10
|
3
|
|
|
5
|
27-806452
|
GASKET (#27-806452)
|
(Cast Aluminum Cover) SN# 0K999999 & Below
|
27-52145, 27-34041
|
$12.08
|
$10.87
|
1
|
|
|
6
|
10-96430
|
SCREW (#10-96430)
|
(Cast Aluminum Cover) SN# 0K999999 & Below
|
|
$9.63
|
$8.67
|
1
|
|
|
1
|
851036T
|
COVER-ROCKER (#851036T)
|
(Stamped Steel Cover) SN# 0L010042 & Up
|
851036
|
$171.74
|
$150.27
|
1
|
|
|
2
|
36-807152
|
CAP-OIL FILLER (#36-807152)
|
(Stamped Steel Cover) SN# 0L010042 & Up
|
36-75336, 36-851039, 59965
|
$4.23
|
$3.81
|
1
|
|
|
3
|
10-35366
|
SCREW @5 (#10-35366)
|
(Stamped Steel Cover) SN# 0L010042 & Up
|
10-34277
|
$1.07
|
$0.96
|
5
|
|
|
4
|
54-97224
|
J CLIP (#54-97224)
|
(Stamped Steel Cover) SN# 0L010042 & Up
|
|
$4.55
|
$4.10
|
3
|
|
|
5
|
27-851040
|
GASKET (#27-851040)
|
(Stamped Steel Cover) SN# 0L010042 & Up
|
|
$20.41
|
$18.37
|
1
|
|
|
7
|
25-52188
|
GROMMET (#25-52188)
|
(Stamped Steel Cover) SN# 0L010042 & Up
|
|
$3.36
|
$3.02
|
1
|
|
|
8
|
97850
|
ELBOW-BREATHER (#97850)
|
(Stamped Steel Cover) SN# 0L010042 & Up
|
|
$1.68
|
$1.51
|
1
|
|
|
9
|
67850
|
BRACKET (#67850)
|
|
|
$12.00
|
$10.80
|
1
|
|
|
10
|
10-54528
|
SCREW (#10-54528)
|
|
|
$6.90
|
$6.21
|
2
|
|
|
11
|
34532
|
PUSH ROD (#34532)
|
|
58284
|
$4.30
|
$3.87
|
8
|
|
|
12
|
936-810849
|
HEAD-CYL-BASIC (#936-810849)
|
(Complete)
|
936-809891T, 936-809891
|
$975.86
|
$780.69
|
1
|
|
|
13
|
97661
|
VALVE (#97661)
|
(Standard)
|
52365
|
$10.22
|
$9.20
|
4
|
|
|
13
|
97662
|
VALVE (#97662)
|
(.015 Over Size)
|
52366, 72641
|
$55.33
|
$48.41
|
AR
|
|
|
14
|
52367
|
VALVE (#52367)
|
(Standard)
|
|
$20.53
|
$18.48
|
4
|
|
|
14
|
52368
|
VALVE (#52368)
|
(.015 Over Size)
|
|
$36.05
|
NLA
|
AR
|
|
|
15
|
28-54797 1
|
KEY @2 (#28-54797 1)
|
|
28-54797, 28-34514, 28-56162
|
$2.21
|
$1.99
|
16
|
|
|
16
|
FI1100604
|
CAP (#FI1100604)
|
|
34515
|
$7.61
|
$6.85
|
8
|
|
|
17
|
26-34217
|
SEAL @8 (#26-34217)
|
|
|
$1.23
|
$1.11
|
8
|
|
|
18
|
34518
|
SHIELD (#34518)
|
|
|
$1.70
|
$1.53
|
8
|
|
|
19
|
24-35214
|
SPRING (#24-35214)
|
|
|
$6.10
|
$5.49
|
8
|
|
|
20
|
11-34516
|
NUT @2 (#11-34516)
|
|
|
$2.52
|
$2.27
|
8
|
|
|
21
|
34519
|
ARM (#34519)
|
|
|
$8.78
|
$7.90
|
8
|
|
|
22
|
59340
|
BALL (#59340)
|
|
34517
|
$1.84
|
$1.66
|
8
|
|
|
23
|
16-34522
|
STUD (#16-34522)
|
(.003 Over Size)
|
|
$3.75
|
$3.38
|
AR
|
|
|
23
|
16-34521
|
STUD (#16-34521)
|
(.013 Over Size)
|
|
$19.86
|
$17.87
|
AR
|
|
|
24
|
10-34510
|
BOLT (#10-34510)
|
|
|
$6.08
|
$5.47
|
10
|
|
|
25
|
27-52364
|
GASKET (#27-52364)
|
|
27-810841
|
$26.97
|
$24.27
|
1
|
|
|
-
|
27-810846A05
|
GASKET SET (#27-810846A05)
|
|
27-810846A90
|
$288.41
|
$230.73
|
1
|
|
- Indicates a part is included with the previous part in the list (based on Ref ID).
