Ref ID |
Part Number
|
Description
|
Comments
|
Superceded From
|
List Price
|
Our Price
|
Qty Used
|
Order Quantity |
|

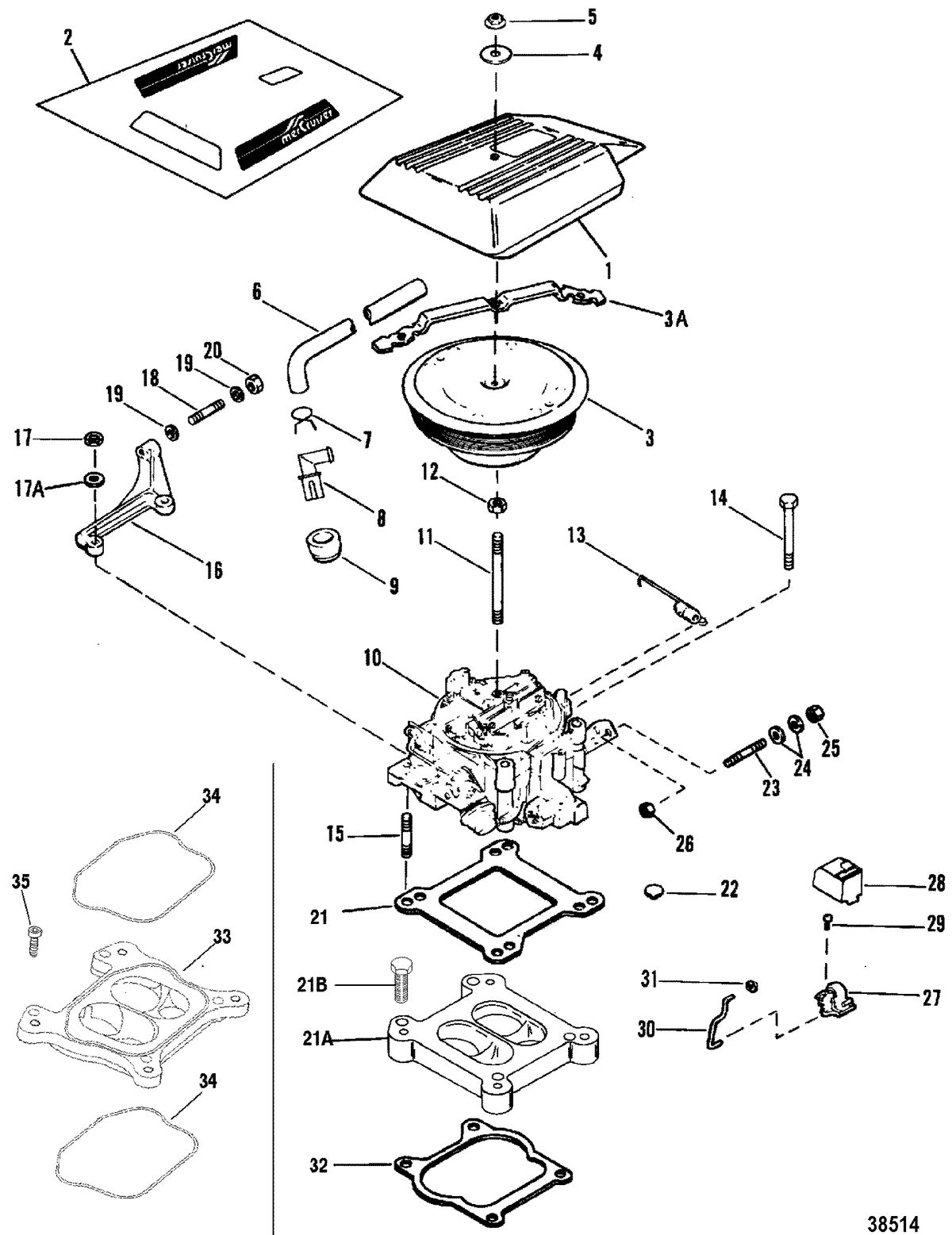

1
|
18484A 3
|
COVER KIT-CARB (#18484A 3)
|
|
|
$114.53
|
$100.21
|
1
|
|
|
2
|
37-812776A 4
|
DECAL SET (#37-812776A 4)
|
(5.0LX ALPHA)
|
|
$50.50
|
NLA
|
1
|
|
|
2
|
37-812776A 5
|
DECAL SET (#37-812776A 5)
|
(5.7L ALPHA)
|
|
$48.00
|
NLA
|
1
|
|
|
2
|
37-812776A25
|
DECAL SET (#37-812776A25)
|
(5.7L BRAVO)
|
|
$49.10
|
NLA
|
1
|
|
|
2
|
37-812776A26
|
DECAL SET (#37-812776A26)
|
(350 MAGNUM)
|
|
$34.20
|
NLA
|
1
|
|
|
3
|
805298A 1
|
ARRESTOR-FLAME (#805298A 1)
|
|
85785A 2, 57882T 1, 85785T 1, 85785T, 41639A 1, 57882, 85785, 47833, 79565
|
$108.16
|
$94.64
|
1
|
|
 3A
|
805314
|
RETAINER (#805314)
|
|
|
$2.37
|
$2.13
|
1
|
|
|
4
|
12-86400
|
WASHER (#12-86400)
|
|
|
$0.77
|
$0.69
|
1
|
|
|
5
|
11-826709109
|
NUT @5 (#11-826709109)
|
|
11-33825, 11-35045, 11-20586, 20586, 11-20664
|
$1.43
|
$1.29
|
1
|
|
|
6
|
32-15894 24
|
TUBING-16.5 INCH (#32-15894 24)
|
|
32-15894 18
|
$23.17
|
$20.85
|
2
|
|
|
7
|
54-53101
|
CLAMP (#54-53101)
|
|
|
$2.89
|
NLA
|
4
|
|
|
8
|
97850
|
ELBOW-BREATHER (#97850)
|
|
|
$1.68
|
$1.51
|
2
|
|
|
9
|
25-52188
|
GROMMET (#25-52188)
|
|
|
$3.36
|
$3.02
|
2
|
|
|
10
|
3310-806761A 1
|
CARBURETOR KIT (#3310-806761A 1)
|
(5.7L ALPHA) (S/N 0F000455 THRU 0F273497)
|
|
$780.30
|
$624.24
|
1
|
|
|
10
|
3310-806761A 3
|
CARBURETOR ASSY (#3310-806761A 3)
|
(5.7L ALPHA) (S/N 0F273498 & ABOVE)
|
|
$636.84
|
$509.47
|
1
|
|
|
10
|
3310-806545A 1
|
CARBURETOR (#3310-806545A 1)
|
(5.7L ALPHA) (SWISS EMISSIONS SAV1 & BSO1)
|
|
$869.75
|
$695.80
|
1
|
|
|
10
|
3310-807262A 1
|
CARBURETOR (#3310-807262A 1)
|
(5.7L BRAVO/ 350 MAG) (S/N 0D617328 & ABOVE)
|
3310-806970A 1
|
$736.20
|
NLA
|
1
|
|
|
11
|
16-805161
|
STUD (#16-805161)
|
(4-3/4 IN.)
|
16-57835 1
|
$30.63
|
$27.57
|
AR
|
|
|
11
|
16-805296
|
STUD (#16-805296)
|
(4-1/2 IN.)
|
|
$19.04
|
$17.14
|
AR
|
|
|
12
|
11-28941
|
NUT @2 (#11-28941)
|
|
|
$0.77
|
$0.69
|
1
|
|
|
13
|
24-32817
|
SPRING (#24-32817)
|
|
|
$7.21
|
$6.49
|
1
|
|
|
14
|
10-35385
|
SCREW (#10-35385)
|
(1-3/4 IN.)
|
10-35390
|
$1.43
|
$1.29
|
2
|
|
|
14
|
10-35386
|
SCREW @5 (#10-35386)
|
(1 IN.)
|
10-24234
|
$0.53
|
$0.48
|
2
|
|
|
15
|
16-70237
|
STUD (#16-70237)
|
(2-5/8 IN.)
|
16-814954
|
$1.88
|
$1.69
|
2
|
|
|
15
|
16-70236
|
STUD (#16-70236)
|
(1-1/2 IN.)
|
|
$1.19
|
$1.07
|
2
|
|
|
16
|
817685T
|
BRACKET (#817685T)
|
(CAST)
|
|
$52.35
|
$45.81
|
1
|
|
|
16
|
805359T
|
BRACKET-THROTTLE (#805359T)
|
(STAMPED)
|
|
$35.54
|
$31.99
|
1
|
|
|
17
|
11-29250
|
NUT @5 (#11-29250)
|
|
11-20461, 11-46793
|
$1.24
|
$1.12
|
2
|
|
|
17A
|
12-20084
|
WASHER @5 (#12-20084)
|
|
12-46935, 12-46680
|
$1.99
|
$1.79
|
4
|
|
|
18
|
16-818192
|
STUD (#16-818192)
|
|
|
$7.47
|
$6.72
|
1
|
|
|
19
|
12-24664
|
WASHER @5 (#12-24664)
|
|
|
$0.71
|
$0.64
|
2
|
|
|
20
|
11-826709109
|
NUT @5 (#11-826709109)
|
|
11-33825, 11-35045, 11-20586, 20586, 11-20664
|
$1.43
|
$1.29
|
1
|
|
|
21
|
27-41610
|
GASKET (#27-41610)
|
5.7L ALPHA
|
|
$8.23
|
$7.41
|
1
|
|
|
21A
|
806177A 3
|
ADAPTOR ASSY-CARB (#806177A 3)
|
5.7L ALPHA
|
806758A 1
|
$114.99
|
$100.62
|
1
|
|
|
21B
|
10-54523
|
SCREW @5 (#10-54523)
|
5.7L ALPHA
|
|
$1.67
|
$1.50
|
4
|
|
|
22
|
22-48358
|
PLUG (#22-48358)
|
|
22-888772
|
$7.36
|
$6.62
|
1
|
|
|
23
|
16-96112
|
STUD (#16-96112)
|
|
|
$2.77
|
$2.49
|
1
|
|
|
24
|
12-29245
|
WASHER @10 (#12-29245)
|
|
12-22388, 12-32733
|
$0.66
|
$0.59
|
2
|
|
|
25
|
11-826708 9
|
NUT @5 (#11-826708 9)
|
|
11-20361, 11-20361
|
$0.62
|
$0.56
|
1
|
|
|
26
|
11-826709109
|
NUT @5 (#11-826709109)
|
|
11-33825, 11-35045, 11-20586, 20586, 11-20664
|
$1.43
|
$1.29
|
1
|
|
|
27
|
66205
|
THERMOSTAT-CHOKE (#66205)
|
AUTOMATIC CHOKE
|
|
$33.93
|
$30.54
|
1
|
|
|
28
|
63922
|
COVER-CHOKE (#63922)
|
AUTOMATIC CHOKE
|
66198, 59992
|
$11.94
|
$10.75
|
1
|
|
|
29
|
10-69235
|
SCREW @2 (#10-69235)
|
AUTOMATIC CHOKE
|
10-59994
|
$0.99
|
$0.89
|
1
|
|
|
30
|
806941
|
CHOKE ROD (#806941)
|
AUTOMATIC CHOKE
|
|
$18.91
|
$17.02
|
1
|
|
|
31
|
53-818299
|
E RING (#53-818299)
|
AUTOMATIC CHOKE
|
|
$0.62
|
$0.56
|
1
|
|
|
32
|
27-52457 2
|
GASKET (#27-52457 2)
|
(5.7L ALPHA /BRAVO & 350 MAGNUM)
|
27-52457 1, 27-52457
|
$2.81
|
$2.53
|
1
|
|
|
33
|
806177A 3
|
ADAPTOR ASSY-CARB (#806177A 3)
|
USE WITH QUAD RINGS
|
806758A 1
|
$114.99
|
$100.62
|
1
|
|
|
34
|
25-806237
|
RING-QUAD @2 (#25-806237)
|
USE WITH QUAD RINGS
|
|
$4.71
|
$4.24
|
2
|
|
|
35
|
10-54523
|
SCREW @5 (#10-54523)
|
USE WITH QUAD RINGS
|
|
$1.67
|
$1.50
|
4
|
|
