MERCRUISER - 140 GM 181 I/L4 1979-1982 - STARTER MOTOR ASSEMBLY, COMPLETE (B-50-69863A1)

Ref ID	Description	Price
-	STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1108756) (#50-8M0090697) Qty Required For Repair: 1, Minimum Order Qty: 1	$291.49 ~~$364.20~~
-	STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #118755) (#50-8M0090697) Qty Required For Repair: ,1 Minimum Order Qty: 1	$291.49 ~~$364.20~~
1	HOUSING, DRIVE END (#71696) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
2	BUSHING, DRIVE END HOUSING (#23-33369) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
3	COLLAR, THRUST - DRIVE END HOUSING (#23-809457) Qty Required For Repair: 1,1 Minimum Order Qty: 1 Supersedes: 814474, 33292 Supersedes: 814474, 33292	NLA
4	RING, RETAINING - PINION STOP COLLAR (#53-33290) Qty Required For Repair: 1,1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
5	COLLAR, PINION STOP - DRIVE END HOUSING (#33291) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
6	DRIVE ASSEMBLY, CLUTCH - ARMATURE (#79205T) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
7	BUSHING, GEAR END - CLUTCH DRIVE (1 9/16") (#23-33369) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
8	SPRING, CLUTCH DRIVE (#24-33368) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
9	COLLAR, CLUTCH DRIVE (DELCO REMY #1904443) (#N.S.S.) Qty Required For Repair: 1,1	NLA
10	LOCKSIRE, COLLAR AND SPRING RETAINING (#33367) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
11	PLATE, BEARING (DELCO REMY #1956939) (#N.S.S.) Qty Required For Repair: 1,1	NLA
12	BUSHING, BEARING PLATE (#23-71694) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
13	WASHER, BEARING PLATE (#12-68614) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
14	SCREW, BEARING PLATE ATTACHING (#10-68612) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
15	LOCKWASHER, BEARING PLATE SCREW (#13-68611) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
16	ARMATURE (#71693) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
17	SHOE, POLE - FIELD COIL (DELCO REMY #1931129) (#N.S.S.) Qty Required For Repair: 4,4 Qty Required For Repair: 4,4	NLA
18	SCREW, POLE SHOE TO FIELD COIL (#10-60684) Qty Required For Repair: 4,4 Minimum Order Qty: 1 Qty Required For Repair: 4,4	NLA
19	INSULATION, FIELD COIL (#33293) Qty Required For Repair: 4, Minimum Order Qty: 1 Qty Required For Repair: 4,	NLA
20	GROMMET, FIELD COIL - FIELD FRAME (#25-45534) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
21	FIELD COIL ASSEMBLY (#46891) Qty Required For Repair: 1, Minimum Order Qty: 1	NLA
21	FIELD COIL ASSEMBLY (#71697) Qty Required For Repair: ,1 Minimum Order Qty: 1	NLA
22	COIL, SHUNT - FIELD COIL (DELCO REMY #1935131) (#N.S.S.) Qty Required For Repair: ,1	NLA
23	WASHER, LEATHER - COMMUTATOR END FRAME (#12-33258) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
24	FRAME, COMMUTATOR END - LOWER (#79211) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
25	BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING (#10-33296) Qty Required For Repair: ,1 Minimum Order Qty: 1	NLA
25	BOLT, THRU - COMMUATOR END TO DRIVE END HOUSING (#10-33286) Qty Required For Repair: ,1 Minimum Order Qty: 1	NLA
26	HOLDER, INSULATED - FIELD FRAME BRUSH GROUND (#33284) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
27	HOLDER, FIELD FRAME BUSH GROUND (#33283) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
28	BRUSH, FIELD FRAME (#33270) Qty Required For Repair: 4,4 Minimum Order Qty: 1 Qty Required For Repair: 4,4	$4.72 ~~$5.90~~
29	SCREW, BRUSH LEAD TO FIELD FRAME BRUSH (8-18 X 5/8") (#10-52904) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
29	SCREW, RUCH LEAD TO FIELD FRAME BRUSH (#10-60685) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
30	SUPPORT PACKAGE, GROUND AND INSULATED HOLDERS (#33294) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
31	PIN, GROUND AND INSULATION HOLDER TO SUPPORT (DELCO REMY # (#N.S.S.) Qty Required For Repair: 2,2 Qty Required For Repair: 2,2	NLA
32	LEAD, FIELD FRAME BRUSH (#33294) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
33	SCREW, SUPPORT TO FIELD FRAME (DELCO REMY #274738) (#N.S.S.) Qty Required For Repair: 4,4 Qty Required For Repair: 4,4	NLA
34	LOCKWASHER, SUPPORT SCREW (#13-26996) Qty Required For Repair: 4,4 Minimum Order Qty: 15 Qty Required For Repair: 4,4 Minimum Order Qty: 15	$0.96 ~~$1.20~~
35	NUT, SUPPORT SCREW (#11-30968) Qty Required For Repair: 4,4 Minimum Order Qty: 1 Qty Required For Repair: 4,4	NLA
36	SPRING, FIELD FRAME BRUSH (#24-33285) Qty Required For Repair: 4,4 Minimum Order Qty: 1 Qty Required For Repair: 4,4	NLA
37	PIN, DOWEL - FIELD BRAME TO DRIVE END HOUSNG (#17-33257) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
38	LEVER, SHIFT - DRIVE END HOUSING (#71698) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
39	SHAFT, SHIFT LEVER TO DRIVE END HOUSING (#33310) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
40	RING, RETAINING - SHIFT LEVER SHAFT (#53-33354) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
41	PLUNGER, SHIFT LEVER - SOLENOID SWITCH (#33317) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
42	PIN, PLUNGER TO SHIFT LEVER (#17-24198) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
43	SPRING, PLUNGER RETURNE - SOLENOID SWITCH (#24-46889) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
44	SCREW, SOLENOID SWITCH TO DRIVE END HOUSING (#10-28713) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
45	SOLENOIDD SWITCH ASSEMBLY (#33261) Qty Required For Repair: 1, Minimum Order Qty: 1	$89.45 ~~$98.08~~
45	SOLENOID SWITCH ASSEMBLY (#33261) Qty Required For Repair: ,1 Minimum Order Qty: 1	$89.45 ~~$98.08~~
46	CONTRACT AND PUSH ROD ASSEMBLY (#33261) Qty Required For Repair: 1,1 Minimum Order Qty: 1	$89.45 ~~$98.08~~
47	SPRING, CONTRACT AND PUSH ROD TENSION (#24-33265) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
48	COVER, SOLENOID SWITCH (DELCO REMY #1935167) (#N.S.S.) Qty Required For Repair: 1,	NLA
48	COVER, SOLENOID SWITCH (DELCO REMY #1963525) (#N.S.S.) Qty Required For Repair: ,1	NLA
49	STUD, RESISTOR TERMINAL (10-32) (#16-33304) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
50	CONCTRACT, RESISTOR TERMINAL STUD (#33305) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
51	LOCKWASHER, RESISTOR TERMINAL STUD (#10) (#13-26996) Qty Required For Repair: 1,1 Minimum Order Qty: 15 Minimum Order Qty: 15	$0.96 ~~$1.20~~
52	NUT, RESISTOR TERMINAL STUD (10-32) (#11-68219) Qty Required For Repair: 1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.32 ~~$2.90~~
53	STUD, MOTOR TERMINAL (3/8-16) (#16-33299) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
54	STUD, BATTERY TERMINAL (3/8-16) (#16-45536) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
55	WASHER, BATTERY AND MOTOR TERMINAL STUD (3/8") (#12-33289) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
56	NUT, BATTERY AND MOTOR TERMINAL STUD (3/8-16) (#11-32219) Qty Required For Repair: 2,2 Minimum Order Qty: 5 Qty Required For Repair: 2,2 Minimum Order Qty: 5	$2.16 ~~$2.70~~
57	LOCKWASHER, BATTERY TERMINAL STUD (3/8") (#13-35048) Qty Required For Repair: 1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.96 ~~$1.20~~
58	NUT, BATTERY TERMINAL STUD (3/8-16) (#11-32219) Qty Required For Repair: 1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.16 ~~$2.70~~
59	STUD, SWITCH TERMINAL (8-32) (#16-33262) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
60	CLIP, SWITCH TERMINAL STUD (#54-33307) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
61	WASHER, PLASTIC - SWITCH TERMINAL STUD (#8) (#12-33279) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
62	NUT, SWITCH TERMINAL STUD (8-32) (#11-21923T) Qty Required For Repair: 2,2 Minimum Order Qty: 2 Qty Required For Repair: 2,2 Minimum Order Qty: 2	NLA
63	LOCKWASHER, SWITCH TERMINAL STUD (#8) (#13-26995) Qty Required For Repair: 1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.88 ~~$1.10~~
64	SCREW, COVER TO SOLENOID SWITCH (7/16") (#10-33248) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
65	WASHER, PLASTIC - COVER SCREW (#12-33279) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
66	SCREW, FIELD COIL LEAD TO SOLENOID SWITCH (7/16") (#10-48266) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
66	SCREW, FIELD COIL LEAD TO SOLENOID SWITCH (1") (#10-45546) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
67	LOCKWASHER, FIELD COIL LEAD SCREW (#13-26995) Qty Required For Repair: 1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.88 ~~$1.10~~
68	CONNECTOR, FIELD COIL LEAD SCREW (DELCO REMY #1963519) (#N.S.S.) Qty Required For Repair: 1,1	NLA

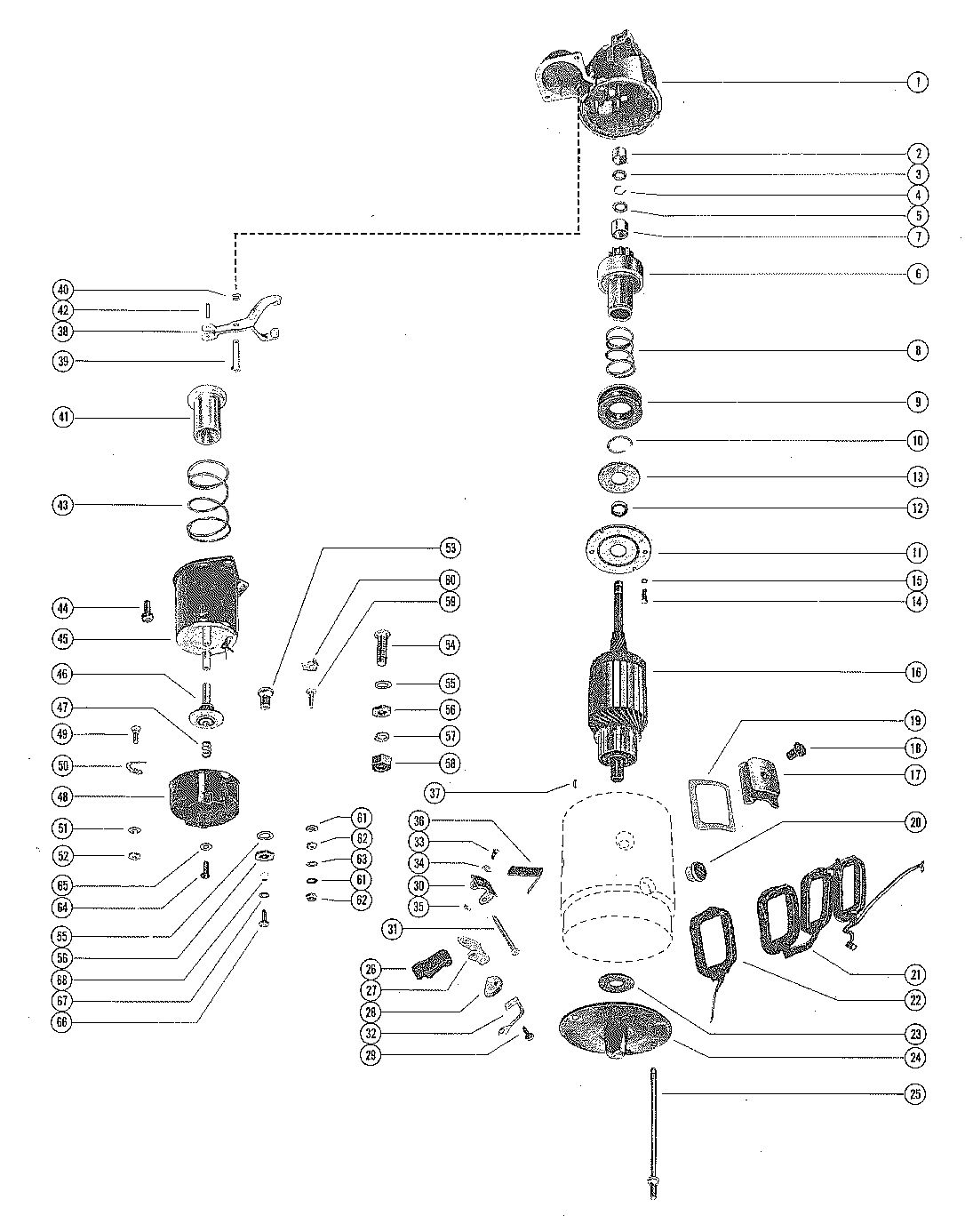

To zoom in, move your mouse over the diagram.

MERCRUISER 140 ENGINE STARTER MOTOR ASSEMBLY, COMPLETE (B-50-69863A1)

This assembly is found in these models:

MERCRUISER > 140 GM 181 I/L4 1979-1982
