FUEL PUMP AND FUEL LINE ASSEMBLY

Ref ID	Description	Price
1	COVER, FUEL PUMP MOUNT (#26083) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	SCREW,COVER ATTACHING (#10-28711) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
3	FUEL PUMP ASSEMBLY - UPPER (#53123A4) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	CHECK VALVE ASSEMBLY (#21-30430A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$22.27 ~~$22.78~~
5	DIAPHRAGM KIT (#23014A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$10.97 ~~$12.90~~
6	GASKET, CHECK VALVE TO HOUSING (#) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
7	GASKET, FUEL PUMP (#) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
8	GASKET, FUEL PUMP COVER (#) Qty Required For Repair: 1	NLA
9	RETAINER,CHECK VALVE (#23004) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	SCREW, RETAINER TO HOUSING (#10-43725) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.45 ~~$1.70~~
11	FUEL PUMP ASSEMBLY - LOWER (#54817A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	CHECK VALVE ASSEMBLY (#21-30430A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$22.27 ~~$22.78~~
5	DIAPHRAGM KIT (#23014A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$10.97 ~~$12.90~~
6	GASKET, CHECK VALVE TO HOUSING (#) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
7	GASKET, FUEL PUMP (#) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
8	GASKET, FUEL PUMP COVER (#) Qty Required For Repair: 1	NLA
9	RETAINER, CHECK VALVE (#23004) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	SCREW, RETAINER TO HOUSING (#10-43725) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.45 ~~$1.70~~
12	SCREW, FUEL PUMP MOUNTING (1 1/2") (#10-73013) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.15 ~~$3.70~~
13	SCREW, FUEL PUMP MOUNTING (1 7/8") (#10-30273) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
14	FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 7/8") (#32-32256A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	ELBOW, UPPER CARBURETOR STRAINER COVER (90) (#22-30174) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	SLEEVE, CARBURETOR STRAINER COVER ELBOW (#22-30175) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
17	NUT, UPPER CARBURETOR STRAINER COVER ELBOW (#22-30177) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	CLIP, FUEL LINE TO CYLINDER BLOCK (#54-22627) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	SCREW, FUEL LINE CLIP TO CYLINDER BLOCK (3/8") (#10-62568) Qty Required For Repair: 1 Minimum Order Qty: 4 Minimum Order Qty: 4	$0.94 ~~$1.10~~
20	"D" WASHER, FUEL LINE CLIP SCREW (#8M0084613) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 69205 Supersedes: 69205	$0.94 ~~$1.10~~
21	PLUG, PIPE - FUEL PUMP (#22-328022) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$6.21 ~~$7.30~~
22	FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (#32-54739A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	FUEL LINE ASSEMBLY, PUMP TO PUMB (14") (#32-52943A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	"Y" FITTING, UPPER FUEL PUMP (#22-54818) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	CONNECTOR, "Y" FITTING (#22-30468) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	SLEEVE, "Y" FITTING CONNECTOR (#22-30175) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
27	NUT, "Y" FITTING CONNECTOR (#22-30177) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (18") (#32-30176) Qty Required For Repair: 1 Minimum Order Qty: 1	$58.14 ~~$57.00~~
29	ADAPTOR, CHECK UNIT (FUEL LINE) (#30186) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	STEM, CHECK UNIT ADAPTOR (#30187) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	"O" RING, ADAPTOR STEM (#25-16524) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$1.19 ~~$1.40~~
32	SPRING, ADAPTOR STEM (#24-30189) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.74 ~~$4.40~~
33	CUP WASHER, ADAPTOR (#30188) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$2.04 ~~$2.40~~
34	SCREW, ADAPTOR TO BOTTOM COWL (2 1/2") (#10-37561) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
35	NUT, ADAPTOR FASTENING SCREW (#11-8M0207775) Qty Required For Repair: 2 Qty Required For Repair: 2	$7.91 ~~$9.30~~
36	FUEL LINE ASSEMBLY, CARBURETOR TO CARBURETOR (#32-31584A1) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
37	ELBOW, FUEL LINE TO CARBURETOR (45) (#29086) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA

To zoom in, move your mouse over the diagram.

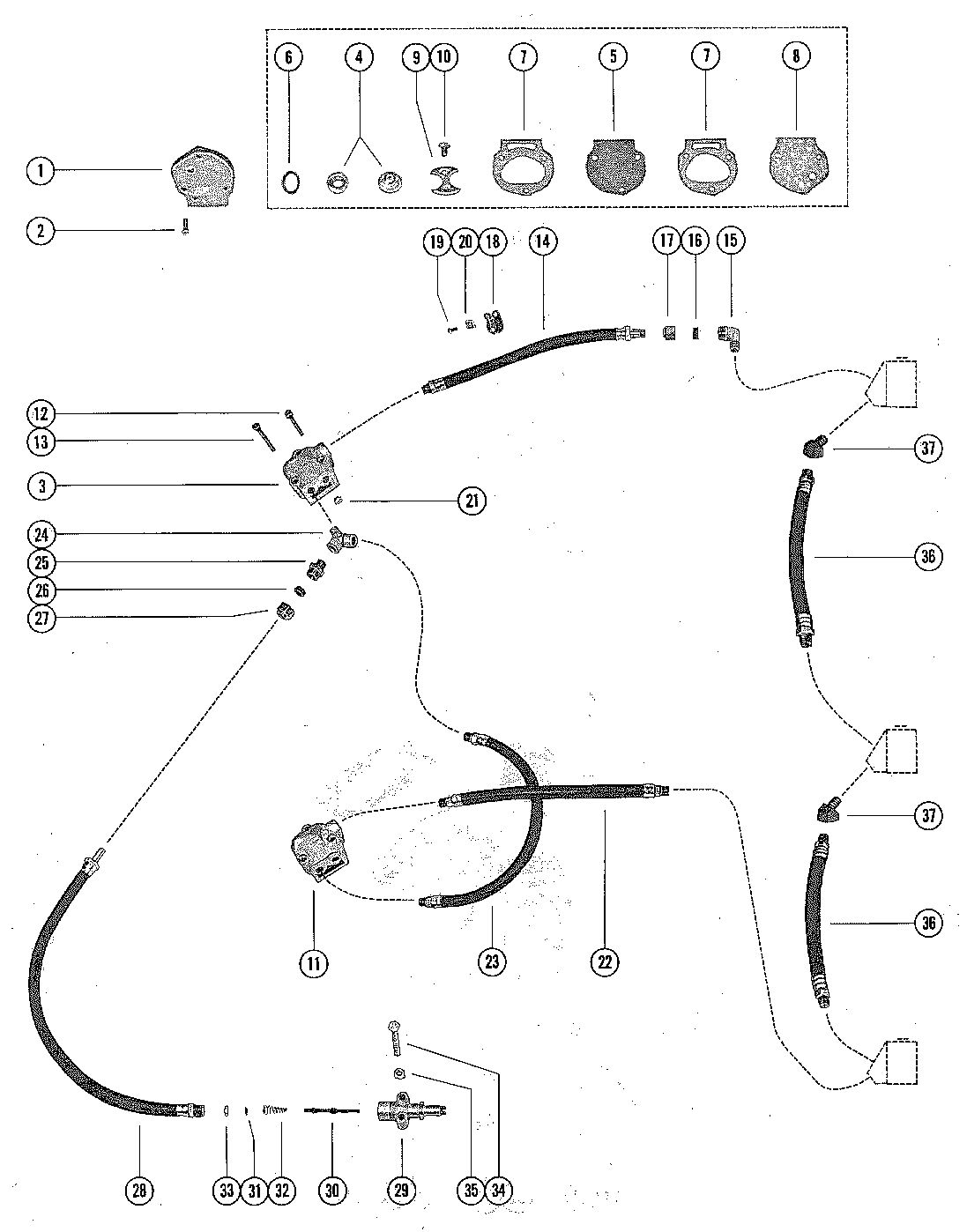

MERCURY MERC 1000BP /1250BP FUEL PUMP AND FUEL LINE ASSEMBLY
