EXHAUST EXTENSION PLATE

	Ref ID	Description	Price
	1	PLATE ASSEMBLY, EXHAUST EXTENSION (#43289A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	2	BUSHING, NYLON-EXHAUST EXTENSION PLATE (#23-27132) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.40 ~~$4.33~~
	3	PIN, Dowel, EXHAUST EXTENSION PLATE (#17-23784) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$4.25 ~~$5.00~~
	4	SEAL, EXHAUST EXTENSION PLATE (#37918) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	5	STRIP, RETAINING - EXHAUST EXTENSION PLATE (#99358) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	6	SCREW, (.190-32 x .500) (#10-37571) Qty Required For Repair: 5 Minimum Order Qty: 5 Qty Required For Repair: 5 Minimum Order Qty: 5	NLA
	7	GASKET, POWERHEAD (#27-692381) Qty Required For Repair: 1 Minimum Order Qty: 1	$10.54 ~~$12.40~~
	8	SCREW, (.312-18 x 2.00) Flange Head (#10-66023) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	NLA
	9	SCREW, (.312-18 x 2.00) Flange Head (#10-66023) Qty Required For Repair: 7 Minimum Order Qty: 2 Qty Required For Repair: 7 Minimum Order Qty: 2	NLA
	10	GASKET, DRIVESHAFT HOUSING PLATE (#27-661021) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.98 ~~$18.80~~
	11	SEAL, DRIVESHAFT HOUSING PLATE (#26-60898) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	12	PLATE ASSEMBLY, DRIVESHAFT HOUSING (#43290A4) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	13	SEAL, RUBBER - WATER INLET TUBE (#26-38970) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$4.17 ~~$4.90~~
	14	PIN, Dowel, DRIVESHAFT HOUSING PLATE (#17-23784) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$4.25 ~~$5.00~~
	15	TUBE, Exhaust (#99698) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	16	SCREW (3/4 Inches) (#10-65414) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
	-	GASKET SET (#27-73645A87) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

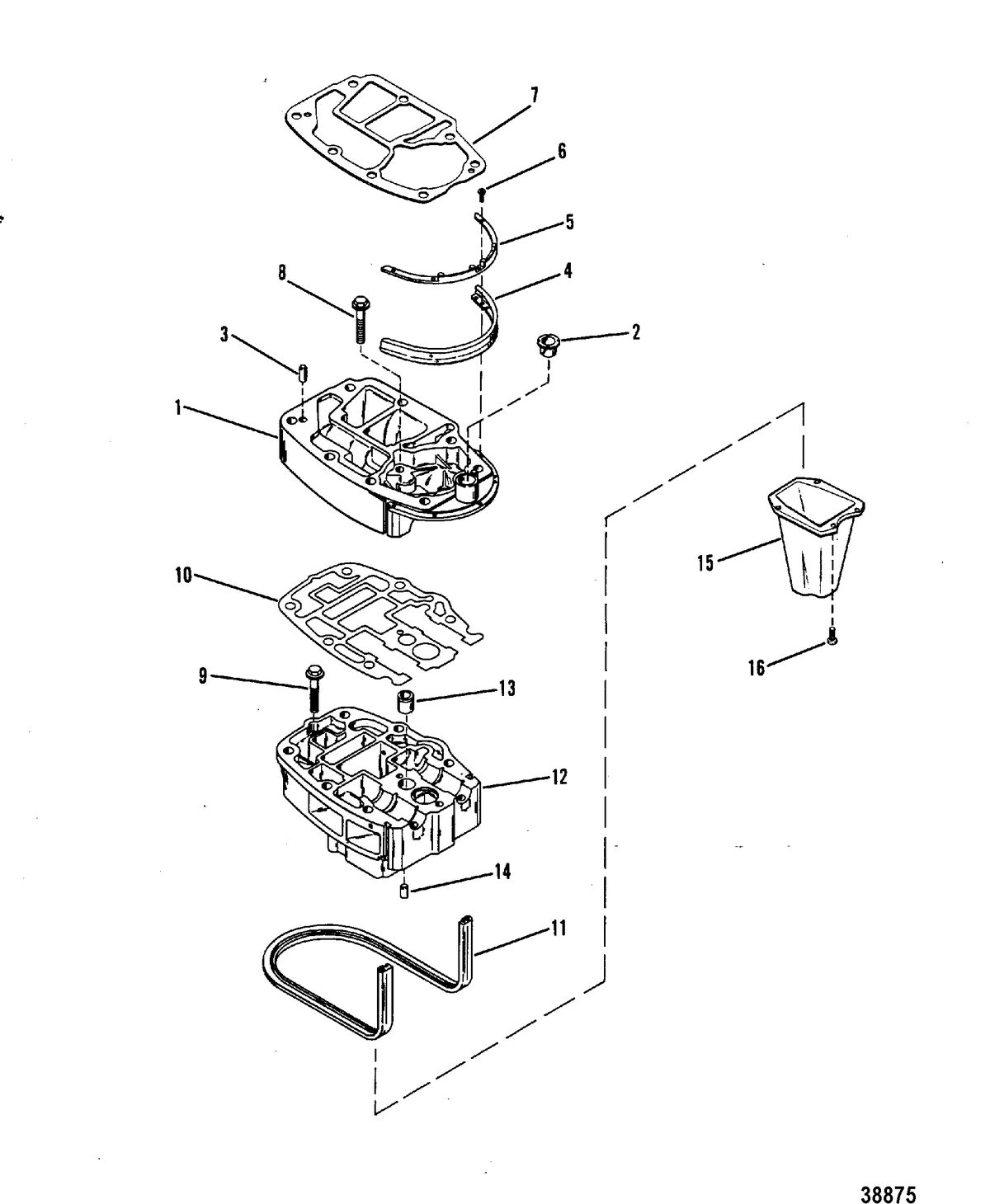

To zoom in, move your mouse over the diagram.

MERCURY/MARINER 75 HP EXHAUST EXTENSION PLATE

This assembly is found in these models:

MARINER > 75 (4 CYL.)
